(550) - CASE LONG TRACK CRAWLER TRACTOR (1/89-12/91)
/
(08) - HYDRAULICS
/

(8-12) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, CONTROL VALVE TO GRILLE

Запчасти Case 550 (8-12) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, CONTROL VALVE TO GRILLE (08) - HYDRAULICS

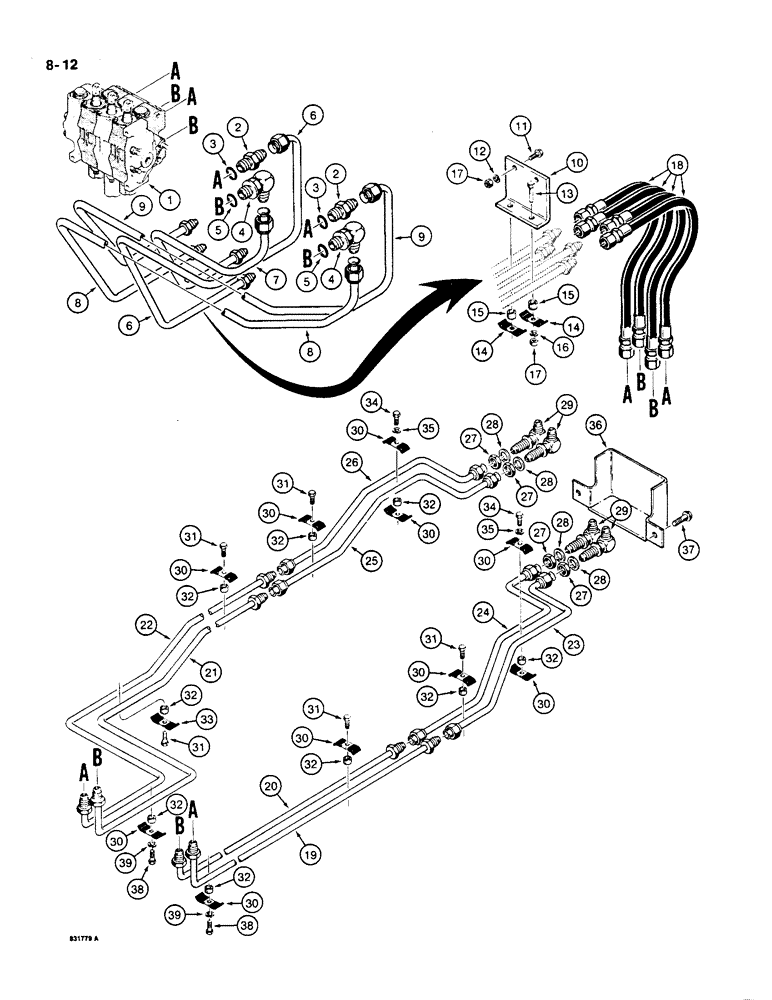

Схема запчастей Case 550 - (8-12) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, CONTROL VALVE TO GRILLE (08) - HYDRAULICS
24
12
5
29
18
4
33
33
22
15
34
3
30
14
3
32
1
29
16
8
7
19
4
27
32
35
2
21
14
30
31
28
30
32
31
30
8
32
39
28
11
6
5
32
31
9
32
39
38
23
34
25
31
10
26
17
32
27
37
38
30
31
2
28
36
30
30
28
27
35
30
9
30
15
13
17
30
20
32
27
6

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components see Figure 8-38 or 8-40

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, upper ports, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D36934

FITTING

ELBOW - 90 degree, lower ports, Includes: Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

R46950

TUBE,0.5" OD

- tilt, at control valve, A port

1шт.

7

R46952

TUBE,0.5" OD

- tilt, at control valve, B port

1шт.

8

R46948

TUBE

- angle, at control valve, B port

1шт.

9

R46946

TUBE,0.5" OD

- angle, at control valve, A port

1шт.

10

R50332

BRACKET

- tube support

1шт.

11

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

14

R25528

CLAMP

- tubes

2шт.

15

D76208

SPACER

- clamp

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

35453

SPARE PART

- 22 inch long

4шт.

19

R39990

TUBE,0.5" OD

- intermediate, tilt, from A port

1шт.

20

R39988

TUBE,0.5" OD

- intermediate, tilt, from B port

1шт.

21

R40810

TUBE,0.5" OD

- intermediate, angle, from B port

1шт.

22

R40812

TUBE,0.5" OD

- intermediate, angle, from A port

1шт.

23

R39980

TUBE,0.5" OD

- to grille, tilt, from A port

1шт.

24

R39982

TUBE,0.5" OD

- to grille, tilt, from B port

1шт.

25

R39986

TUBE,0.5" OD

- to grille, angle, from B port

1шт.

26

R39984

TUBE,0.5" OD

- to grille, angle, from A port

1шт.

27

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

28

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

4шт.

29

R29758

FITTING

ELBOW - 90 degree, bulkhead

4шт.

30

R25528

CLAMP

- tubes

10шт.

31

121-235

FLANGE BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 1-1/4 inch, grade 8

5шт.

32

D76208

SPACER

- clamp

9шт.

33

R25528

CLAMP

- angle tubes

1шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

R34008

GUARD

- elbows, at grille

1шт.

37

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

38

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

39

492-11038

LOCK WASHER,3/8"

2шт.

Выбрано товаров: 39
