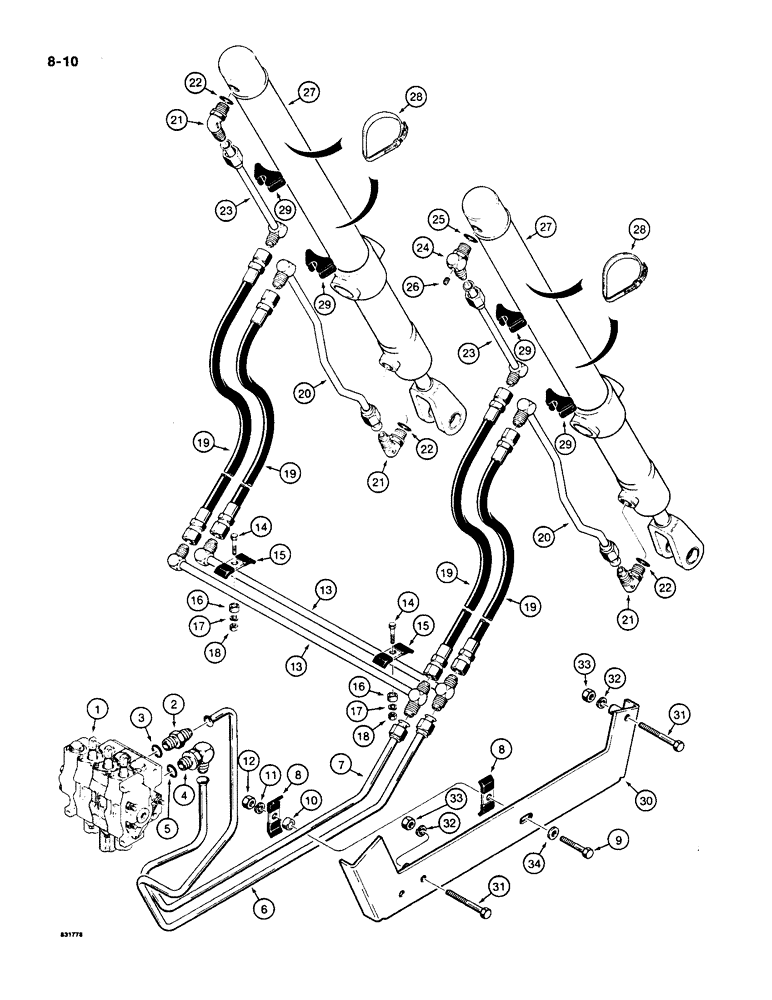

Запчасти Case 550 (8-10) - DOZER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components see Figure 8-38 or 8-40

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, A port, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adj, 7/8-14 inch flare x O-ring boss, B port, Incl. Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

R46942

TUBE

- from A port

1шт.

7

R46944

TUBE

- from B port

1шт.

8

D31782

FIXING BRACKET

CLAMP - tubes

2шт.

9

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

10

R40879

SPACER

- clamps

1шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

13

R40037

TUBE,0.625" OD x 26" L

- crossover

2шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

15

D40236

CLAMP

- tubes

2шт.

16

D76209

SPACER

- clamp

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

L46723

HOSE

- 42 inch, Serial Range: long,-cylinders

4шт.

20

D36138

HOSE ASSY.

TUBE - to rod end of cylinder

2шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adj, 7/8-14 inch flare x O-ring boss, Incl. Ref. 22

3шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

D34747

TUBE

- to closed end of cylinder

2шт.

24

R19576

FITTING

ELBOW - 90 degree, adjustable, special, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch taper PT

1шт.

27

G101229

CYLINDER

ASSEMBLY - dozer lift, parts list Figure 8-22

2шт.

28

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - adjustable, tube to cylinder

4шт.

29

D38648

BLOCK

INSULATOR - rubber, tubes

4шт.

30

R48281

GUARD

- tubes, right-hand side, if used

1шт.

31

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, if used

2шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

2шт.

33

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, if used 1/2"-13, G5

2шт.

34

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), If used 1/2", SAE

1шт.
