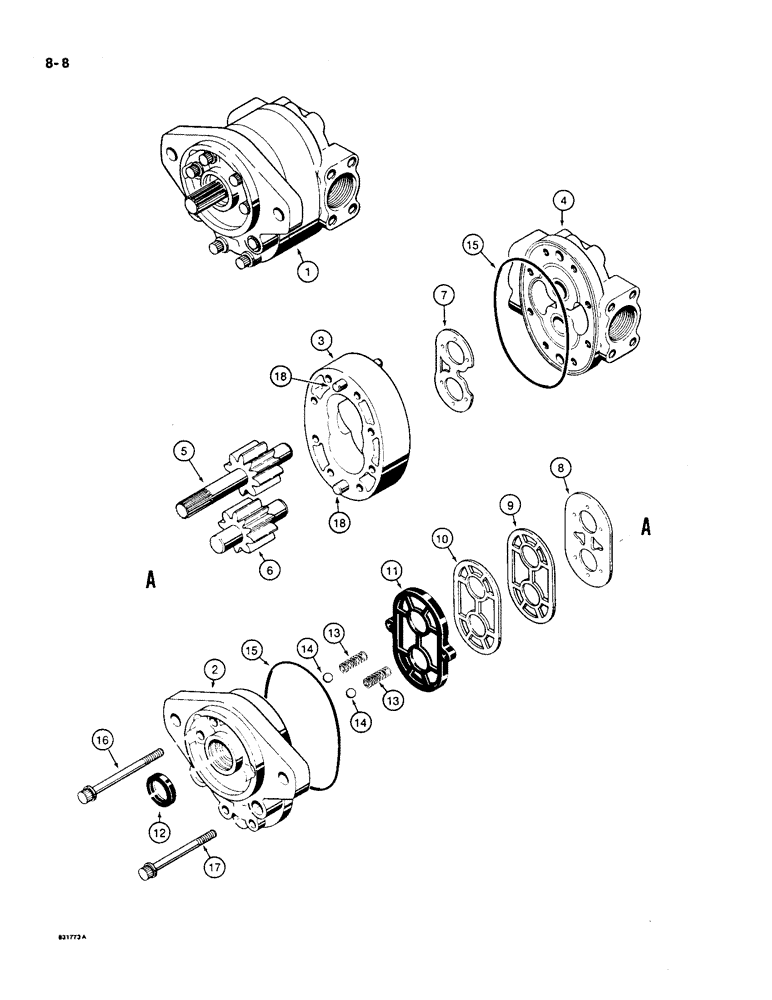

Запчасти Case 550 (8-08) - HYDRAULIC PUMP ASSEMBLY (08) - HYDRAULICS

1

D41390

PUMP

ASSEMBLY - equipment hydraulic oil, Includes: Ref. 2 - 18

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Hydraulic Pump

1шт.

1

87644746R

REMAN-HYD PUMP

550

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

D48879

COVER

- shaft end

1шт.

3

D49371

HOUSING

- gear

1шт.

4

D48883

COVER

- port end

1шт.

D52929

GEAR

SET - drive and driven, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - driven

1шт.

N9005

SEAL KIT

- pump repair, Includes: Ref. 7 - 15

1шт.

7

A45358

PLATE

- thrust

1шт.

8

H335331

DIAPHRAGM

- pump

1шт.

9

H260935

GASKET

- protector

1шт.

10

D39319

GASKET

- backup

1шт.

11

D48888

SEAL

- diaphragm

1шт.

12

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- shaft

1шт.

13

D31403

SPRING

- ball retaining

2шт.

14

211-312

BALL,13/32" Dia

- 13/32 inch, grade 100, carbon steel

2шт.

15

H756221

O-RING,4.987" ID x 5.193" OD

- covers

2шт.

16

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

BOLT - Ferry head, 3/8 NC x 3-1/4 inch

4шт.

17

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

BOLT - Ferry head, 3/8 NC x 3-1/2 inch

4шт.

18

D49373

DOWEL

PIN - dowel, cover locating

2шт.
