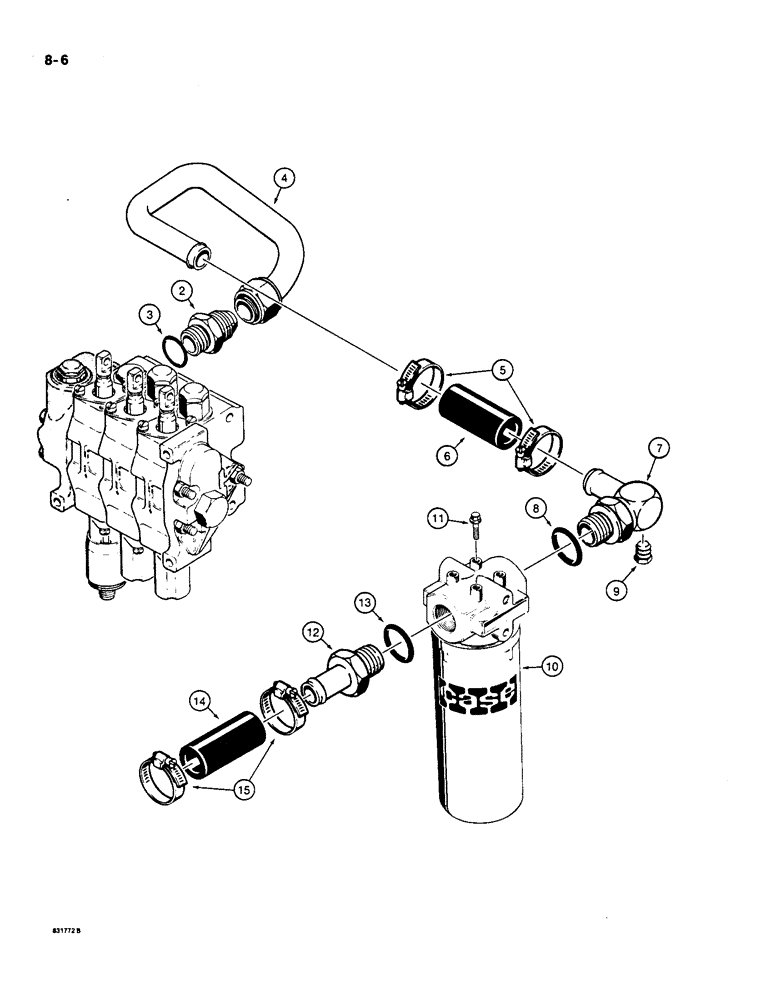

Запчасти Case 550 (8-06) - EQUIPMENT HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components see Figure 8-38 or 8-40

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

R47051

TUBE,1" OD

- control valve to filter

1шт.

5

214-190

HOSE CLAMP,1" - 1-7/8", HD Worm

CLAMP - hose, adjustable

2шт.

6

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

- 3-1/2 inch, Serial Range: long,-filter

1шт.

7

R51207

FITTING,90 Degree, 1" Hose x 1 5/16"-12 ORB Beaded

ELBOW - 90 degree, adjustable, special, not used on models with a backhoe, for backhoe connecting hydraulic circuit see Figure 8-18, Includes: Ref. 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

9

221-661

PLUG,Hex Hd, 1/8"-27

- hex, 1/8 inch taper PT

1шт.

10

R50518

FILTER

ASSEMBLY - equipment hydraulic oil, parts list Figure 6-54

1шт.

11

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

12

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Adapter, Includes Ref. 13 1" Hose X 1 5/16"-12 ORB, Beaded

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

14

R13912

HOSE,25.40 mm ID x 133.40 mm ID, SAE 100R3

- to hydraulic reservoir 25.40 mm ID x 133.40 mm ID, SAE 100R3

1шт.

15

214-190

HOSE CLAMP,1" - 1-7/8", HD Worm

CLAMP - hose, adjustable

2шт.
