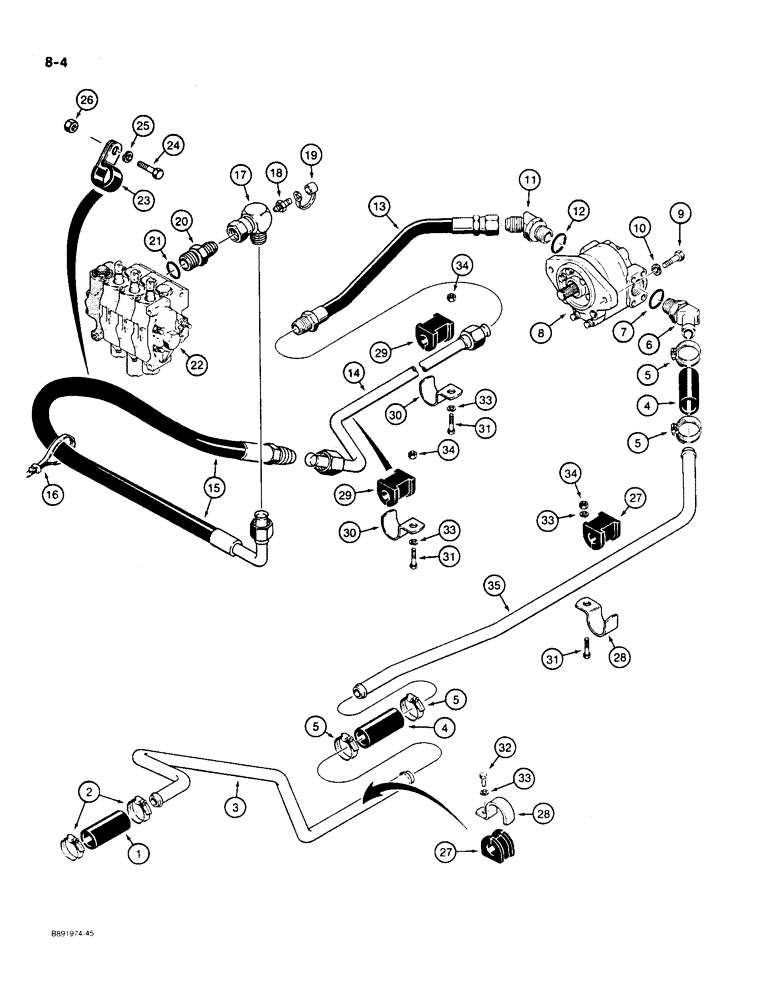

Запчасти Case 550 (8-04) - EQUIPMENT HYDRAULIC CIRCUIT, HYDRAULIC RESERVOIR TO PUMP AND CONTROL VALVE (08) - HYDRAULICS

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- at hydraulic reservoir, cut from S118465, see below 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

2

214-190

HOSE CLAMP,1" - 1-7/8", HD Worm

CLAMP - hose

2шт.

3

R47059

TUBE,31.75 - 33.35 mm OD

- from hydraulic reservoir

1шт.

4

D36350

HOSE

- 3 inch long, cut from S118465, see below

2шт.

5

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

4шт.

6

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

(Elbow), Pump inlet, Incl. Ref. 7 45º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

8

D41390

PUMP

ASSEMBLY - equipment, parts list Figure 8-8

1шт.

8

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

8

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Hydraulic Pump

1шт.

8

87644746R

REMAN-HYD PUMP

550

1шт.

8

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, adj, 1-5/16-12 inch flare x O-ring boss, pump outlet, Includes: Ref. 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

13

R50103

HOSE

- 15 inch long, from pump

1шт.

14

R51932

TUBE ASSY.,1" OD

TUBE - intermediate, from pump to control valve

1шт.

15

R51952

HOSE ASSY.

TUBE - to control valve

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

R47069

ELBOW

- 90 degree, swivel, special

1шт.

18

H434164

COUPLING

COUPLER - diagnostic

1шт.

19

H434163

DUST CAP

CAP - dust

1шт.

20

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components see Figure 8-38 or 8-40

1шт.

23

D41564

- hose

1шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

27

D67298

INSULATOR

- rubber, right-hand tubes

2шт.

28

D68845

MOUNTING CLIP

CLAMP - right-hand tubes

2шт.

29

D67297

BLOCK

INSULATOR - rubber, left-hand tubes

2шт.

30

D68846

CLAMP

- left-hand tubes

2шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

32

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

33

492-11038

LOCK WASHER,3/8"

4шт.

34

425-106

NUT,3/8"-16, Cl 5

3шт.

35

R47058

TUBE,31.75 - 33.35 mm OD

- to pump

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Bulk 1.25" ID x 180.00", SAE 100R3

1шт.
