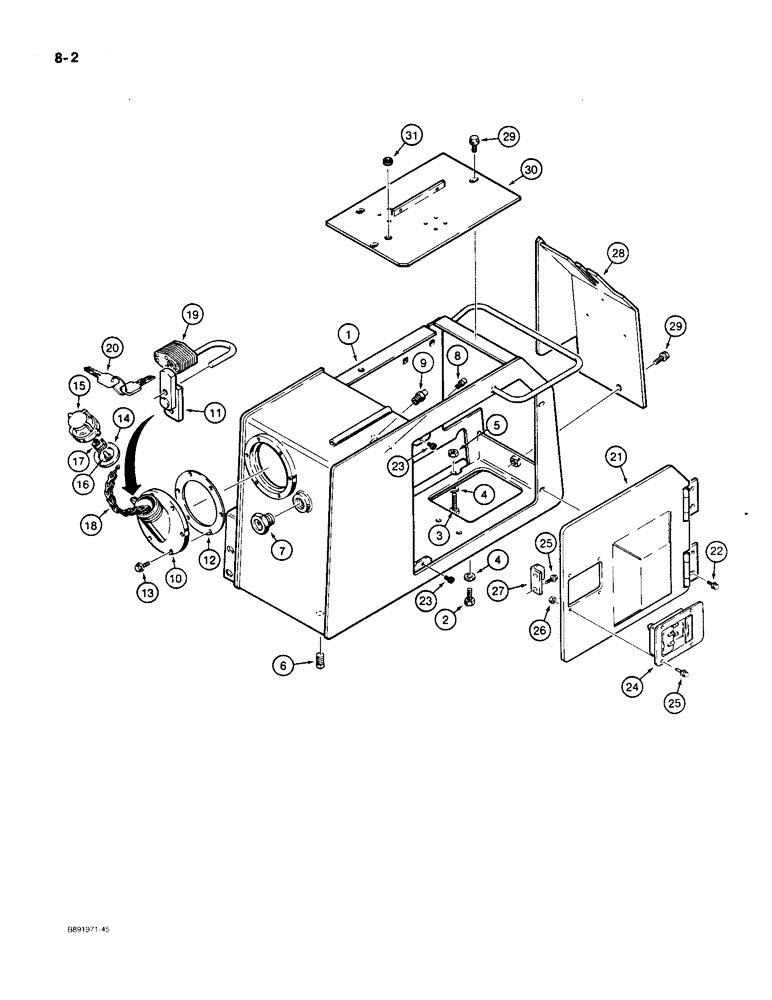

Запчасти Case 550 (8-02) - HYDRAULIC RESERVOIR FRAME AND COVERS (08) - HYDRAULICS

1

R57067

RESERVOIR

FRAME - hydraulic reservoir and equipment control valve, includes decal

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

4

R24718

WASHER

- flat, 1/2 inch, hardened

5шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

6

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square, 1/2 inch taper PT, drain

1шт.

7

L106452

GAUGE

- sight, hydraulic reservoir

1шт.

8

R15536

VALVE

- outlet, air

1шт.

9

R15538

VALVE

- inlet, air

1шт.

10

R51319

COVER

- rear, with filler tube, includes Ref. 15 filler cap, Includes: Ref. 11

1шт.

11

R46704

BRACKET

TAB - locking, filler cap

1шт.

12

D50547

GASKET,1.52mm Thk

- rear cover

1шт.

13

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

6шт.

14

R46984

GASKET

- filler cap

1шт.

15

R46929

CAP

- filler

1шт.

16

168-78

DRIVE SCREW,Type U, Rnd Hd, #12 x 3/4"

- drive, round head, No. 12 x 3/4 inch

2шт.

17

R48634

FASTENER

HOOK - chain

1шт.

18

R47786

CHAIN (CE)

CHAIN - filler cap

1шт.

19

D93753

PADLOCK

- filler cap, Includes: Ref. 20

1шт.

20

R29555

KEY

- for Master padlock only

2шт.

20

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

21

R55497

COVER

- right-hand side, hydraulic reservoir frame, with box for hydraulic fittings on models with a backhoe, service replacement for all models

1шт.

22

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

23

A161780

BUMPER

- rubber, side cover

2шт.

24

R56221

LATCH

- side cover

1шт.

25

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

6шт.

26

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

4шт.

27

R56397

LARGE PLATE

STRIKER - latch

1шт.

28

R50821

COVER

- front, hydraulic reservoir frame, includes operators manual box (see Figure 9-48 for manual box and mounting)

1шт.

29

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

6шт.

30

R50773

COVER

- top, includes decals

1шт.

31

D37936

GROMMET

- used on models with ROPS canopy and lamps, if used

1шт.
