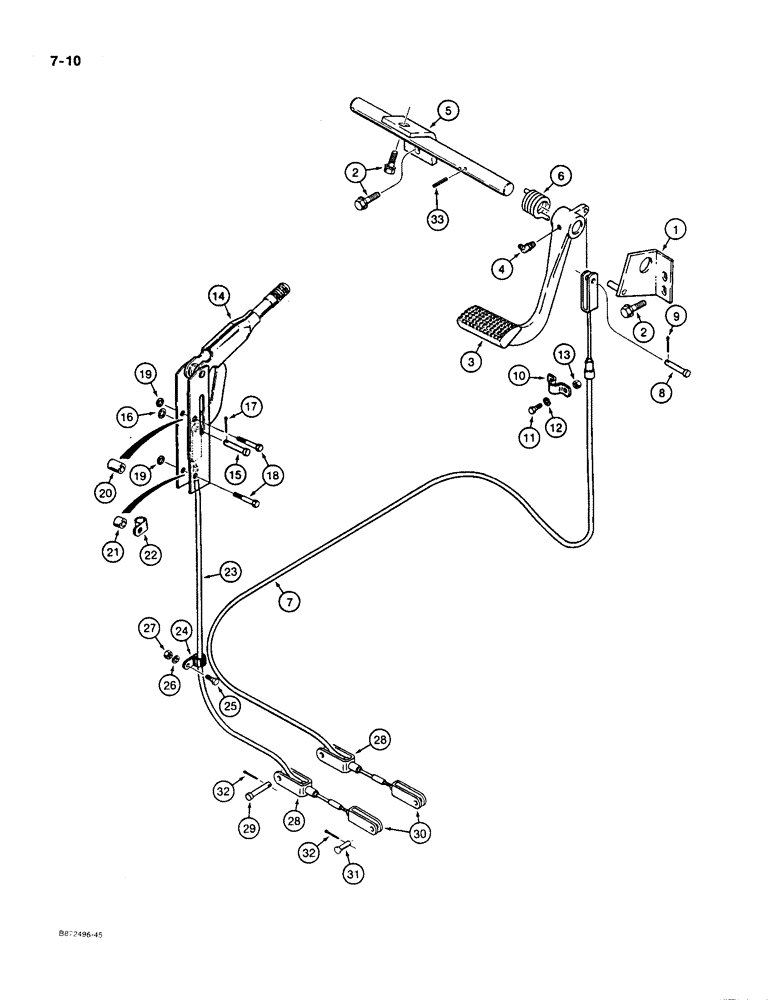

Запчасти Case 550 (7-10) - PARKING BRAKE (07) - BRAKES

1

R54313

SUPPORT

BRACKET - brake pedal shaft retaining

1шт.

2

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

4шт.

3

R54444

PEDAL

- parking brake

1шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 55/64 inch long

1шт.

5

R54302

SUPPORT

SHAFT - brake pedals, with mounting bracket

1шт.

6

R49035

SPRING

- parking brake pedal

1шт.

7

R54298

CABLE

- foot pedal to brake adjusters on transmission

1шт.

8

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

9

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

10

R26118

CLAMP

- foot cable to bracket on firewall

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

D40687

LEVER

ASSEMBLY - control, parking brake, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

LEVER - control, parking brake

1шт.

15

D42458

PIN

- clevis, cable to control lever

1шт.

16

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

1шт.

17

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

18

26-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch, grade 8

2шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

D40685

SPACER

- long, upper

1шт.

21

D30863

TUBE

SPACER - short, lower

1шт.

22

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

- P-style, hand lever cable

1шт.

23

R53521

CABLE

- hand lever to brake adjusters on transmission

1шт.

24

49771

CLAMP

- hand lever cable

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.

28

R51613

CLEVIS

- cable to brake adjuster lever, LH

2шт.

29

S10754

LINCH PIN

PIN - clevis, LH clevises

1шт.

30

R51621

CLEVIS

- cable to brake adjuster lever, RH

2шт.

31

H45096

SPLIT PIN/SAFETY PIN

PIN - clevis, RH clevises

1шт.

32

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

33

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.
