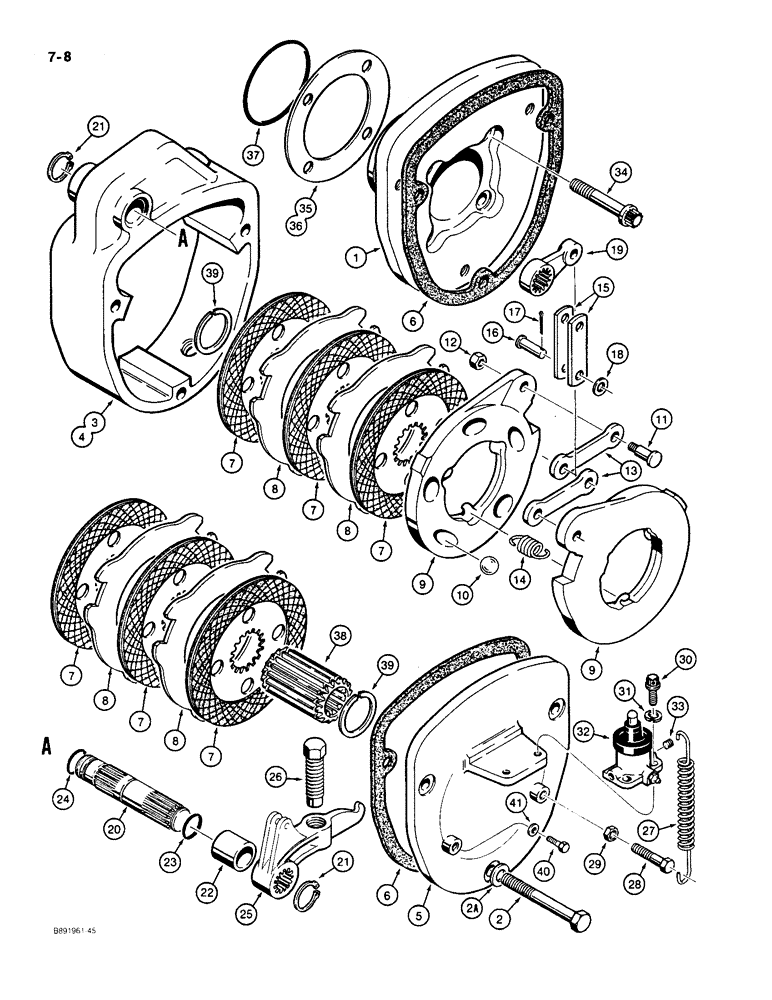

Запчасти Case 550 (7-08) - TRANSMISSION BRAKE ASSEMBLY (07) - BRAKES

1

G103640

PLATE ASSY.

SUPPORT - brake mounting

2шт.

2

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8, use with Loctite 242

6шт.

2a

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 17/32 ID x 1-1/16 OD x 1/8 inch

6шт.

3

G103648

HOUSING

- brake, RH

1шт.

4

G103121

HOUSING

- brake, LH

1шт.

5

G103094

COVER ASSY

COVER - brake

2шт.

6

1342382C1

GASKET

- brake housing

4шт.

7

G103117

PLATE ASSY.

DISC - friction, brake

12шт.

8

G103118

DISC

- steel, brake

8шт.

9

A50148

DISC

PLATE - mounting

4шт.

10

211-221

BALL,7/8" Dia

grade 200, chrome alloy steel 7/8" Dia

10шт.

11

A30898

STEP BOLT

BOLT - shoulder, special

4шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

4шт.

13

R18533

LINK

- brake actuating

4шт.

14

A155624

SPRING

- brake actuator

6шт.

15

R15369

LINK

- brake pull

4шт.

16

G105353

PIN,11.07mm OD x 29.97mm L

- brake links

4шт.

17

132-380

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), , Stainless steel 3/32" x 3/4"

4шт.

18

195-529

WASHER,7/16", SAE

- flat, 15/32 x 3/32 x 1/16 inch

4шт.

19

R15372

LEVER

- brake

2шт.

20

G107436

SHAFT

- brake actuating

2шт.

21

B18208

SNAP RING,#100, Ext

brake actuating shaft #100, Ext

4шт.

22

G103093

SPACER

- shaft

2шт.

23

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- brake actuating shaft, center

2шт.

24

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Brake actuating shaft, inner, was D63414 -117, 90 Duro, .799" ID x .103" Thk

2шт.

25

G109374

LEVER

- actuating

2шт.

26

A50395

ADJUSTMENT SCREW,Locking, 3/4" - 16 x 2.75"

SCREW - self-locking, 3/4 NF x 2-3/4 inch, brake adjusting

2шт.

27

A50589

SPRING

- brake actuating lever

2шт.

28

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Use with Loctite 242 Hex, 3/8"-16 x 1 3/4", G5

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

30

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

SCREW - Ferry head, 1/4 NC x 3/4 inch, grade 8, use Loctite 242

4шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

32

REF

INSTRUCTION

CYLINDER ASSEMBLY - brake, for correct assembly and components, see Figure 7-6

2шт.

33

222-1062

PLUG,7/16"-24, Inv Fl

- hex, 1/4 tube OD x 7/16-24 inch

2шт.

34

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - Ferry, 1/2 NC x 3 inch, brake mounting support to front housing cover, use with Loctite 242

8шт.

35

G103641

SHIM,.003" Thk

Brake mounting support .003" Thk

1шт.

36

G103643

SHIM,.010" Thk

Brake mounting support .010" Thk

1шт.

37

G104038

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

- brake mounting support

2шт.

38

G104123

HUB CAP

HUB - brake disc retaining

2шт.

39

A50046

RING

- snap, disc retaining

4шт.

40

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Use with Loctite 242 Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

41

D32117

COPPER WASHER

WASHER, COPPER, 3/8 inch

2шт.
