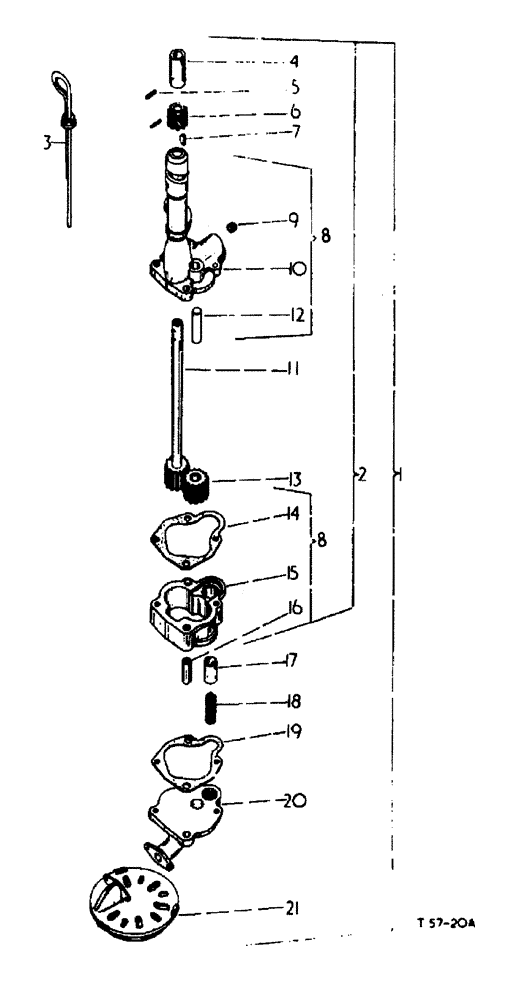

Запчасти Case 500 (12-086) - LUBRICATION SYSTEM DIESEL ENGINE No Description

1

3064060R91

PUMP

OIL ASSY.

1шт.

751830R2

VALVE

BALL

1шт.

3043132R93

BODY

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

3064061R1

COVER

1шт.

711588R1

GASKET

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

3064062R91

FILTER SCREEN

1шт.

751829R1

SPRING

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

6шт.

103319

LOCK WASHER,1/4"

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

1шт.

2

3043132R93

BODY

OIL PUMP ASSY.

1шт.

3042570R92

CASE

BODY

1шт.

3042479R1

COUPLING, BREAK AWAY

1шт.

3063757R1

GEAR

1шт.

NLS

NO LONGER SERVICED

1шт.

704107R1

GEAR

1шт.

932204R1

LOCK PIN,M3 x 20, Slotted

2шт.

3042572R92

SHAFT

1шт.

3

706977R91

DIPSTICK

GAUGE oil level, CPTE.

1шт.

4

3042479R1

COUPLING, BREAK AWAY

hourmeter drive

1шт.

5

932204R1

LOCK PIN,M3 x 20, Slotted

3 mm dia. x 20 mm long

1шт.

6

704107R1

GEAR

oil pump drive

1шт.

7

103905

KEY

woodruff

1шт.

8

3042570R92

CASE

BODY oil pump, CPTE.

1шт.

NSS

NOT SOLD SEPARAT

BODY

1шт.

NSS

NOT SOLD SEPARAT

CASE

1шт.

706628R1

GASKET

1шт.

932205R1

LOCK PIN,M10 x 40, Slotted

2шт.

103323

LOCK WASHER,1/2"

1шт.

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

9

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1шт.

10

NSS

NOT SOLD SEPARAT

BODY oil pump , not serviced

1шт.

11

3042572R92

SHAFT drive, oil pump, as required

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT idler, oil pump, not serviced

1шт.

13

3063757R1

GEAR

idler, oil pump, body

1шт.

14

706628R1

GASKET

oil pump, body

1шт.

15

NSS

NOT SOLD SEPARAT

CASE oil pump, gear, not serviced

1шт.

16

932205R1

LOCK PIN,M10 x 40, Slotted

10 mm dia. x 40 long

2шт.

17

751830R2

VALVE

BALL oil pressure, regulating valve

1шт.

18

751829R1

SPRING

oil pressure, regulating valve

1шт.

19

711558R1

GASKET

oil pump, gear, as required

1шт.

20

3064061R1

COVER

oil pump

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

4шт.

21

3064062R91

FILTER SCREEN

OIL PUMP ASSY.

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

2шт.
