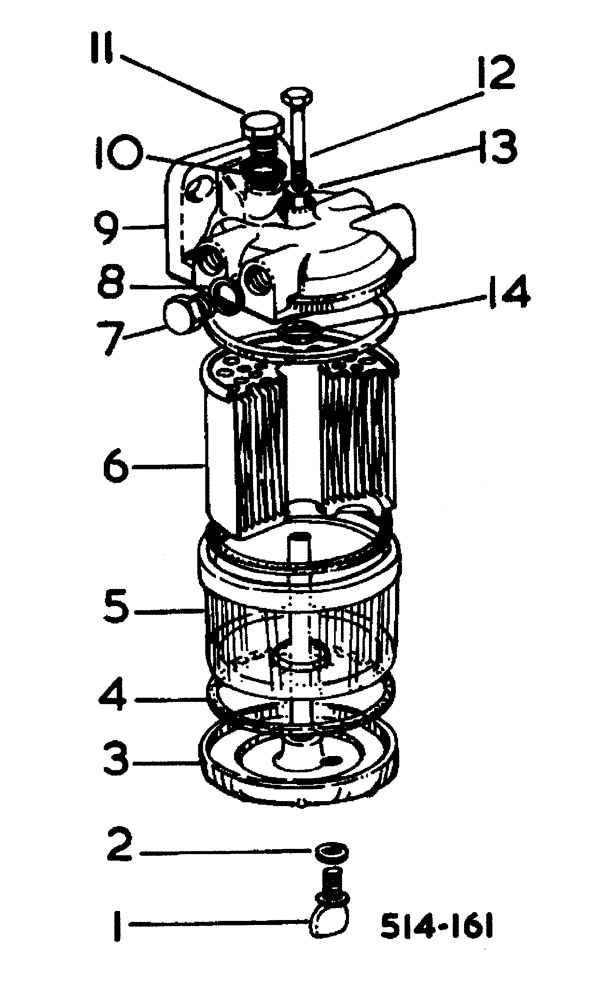

Запчасти Case 500 (12-082) - FUEL FILTER AGGLOMERATOR DIESEL ENGINE No Description

3069607R91

SPARE PART

FILTER ASSY. fuel, order filter 3069607R2

1шт.

1

3072558R1

PLUG

drain

1шт.

2

3072559R1

WASHER

seal drain plug

1шт.

3

3069612R91

BASE

FILTER ASSY. w/ STUD

1шт.

4

3105001R1

SEAL

cover and base

3шт.

15

3069610R1

BOWL

water sediment glass

1шт.

6

3044506R93

FILTER, FUEL

ELEMENT package

1шт.

7

3111735R1

PLUG

sealing

1шт.

8

3070777R1

SEALING WASHER

1шт.

8

708297R1

GASKET

WASHER, optional

1шт.

9

3115785R1

SPARE PART

COVER filter, order cover 3117036R91

1шт.

10

NSS

NOT SOLD SEPARAT

not applicable

1шт.

11

NSS

NOT SOLD SEPARAT

not applicable

1шт.

12

3070771R1

BOLT

center

1шт.

13

NSS

NOT SOLD SEPARAT

not applicable

1шт.

14

3044505R1

SEAL

element

1шт.
