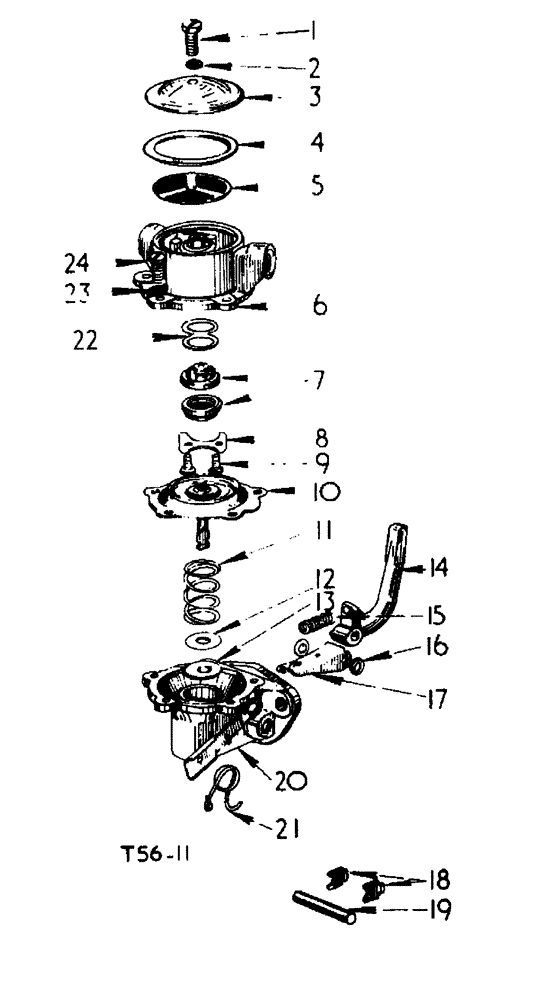

Запчасти Case 500 (12-078) - FUEL FEED PUMP DIESEL ENGINE No Description

708294R93

PUMP

fuel feed, FUEL PUMP CURRENTLY BEING FURNISHED WILL WORK ONLY IN APPLICATIONS WHERE THERE IS NOT A POWER STEERING PUMP OR AN UNDERSLUNG MUFFLER. FOR THESE APPLICATIONS, DEALER MUST REPAIR THE OLD PUMP AS SHOWN IN THE PARTS CATALOG

1шт.

1

702953R1

SCREW

filter cover

1шт.

2

3044511R1

GASKET

filter cover screw

1шт.

Part of repair kit 3066610R92

1шт.

3

3044512R1

COVER

filter

1шт.

4

3044518R1

GASKET

filter cover end

1шт.

Part of repair kit 3066610R92

1шт.

5

3044513R1

FILTER SCREEN

1шт.

Part of repair kit 3066610R92

1шт.

6

3105122R91

COVER

ASSY.

1шт.

7

702959R91

VALVE

ASSY.

2шт.

Part of repair kit 3066610R92

1шт.

8

702960R1

RETAINER

valve

1шт.

Part of repair kit 3066610R92

1шт.

9

702961R1

SCREW

SPARE PART

2шт.

Part of repair kit 3066610R92

1шт.

10

3066607R91

DIAPHRAGM

ASSY.

1шт.

Part of repair kit 3066610R92

1шт.

11

708954R1

SPRING

diaphragm

1шт.

12

3072671R1

WASHER

oil seal

1шт.

Part of repair kit 3066610R92

1шт.

13

3072672R1

SEALING WASHER

1шт.

Part of repair kit 3066610R92

1шт.

14

3044517R1

ARM

rocker

1шт.

15

708956R1

SPRING

rocker arm

1шт.

Part of repair kit 3066610R92

1шт.

16

708957R1

WASHER

rocker arm pin

2шт.

Part of repair kit 3066610R92

1шт.

17

708963R1

LINK

1шт.

Part of repair kit 3066610R92

1шт.

18

3044516R1

RETAINER

rocker arm pin

2шт.

Part of repair kit 3066610R92

1шт.

19

3044515R1

PIN

rocker arm

1шт.

Part of repair kit 3066610R92

1шт.

20

3044519R91

COVER ASSY

BODY and HAND PRIMER, ASSY.

1шт.

21

3044520R1

SPRING

priming lever

1шт.

22

3065032R1

SPARE PART valve

1шт.

Part of repair kit 3066610R92

1шт.

23

NSS

NOT SOLD SEPARAT

not used

1шт.

24

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

cover SLTD fill head no. 10 UNF x 3/8

5шт.

3063872R1

BOLT

12 point ring 5/16 x 3/4, not illustrated

2шт.

3066610R92

KIT

repair less rocker arms as required consists of Ref. and parts used in old repair kit assemblies, not illustrated

1шт.

702951R1

SPARE PART pin, parts used in old repair kit assembly, not illustrated

2шт.

702958R1

GASKET

SPARE PART valve, parts used in old repair kit assembly, not illustrated

1шт.

3061658R1

GASKET

pad, parts used in old repair kit assembly, not illustrated

1шт.

702950R1

SPARE PART rocker arm, parts used in old repair kit assembly, not illustrated

1шт.

702960R1

RETAINER

valve, parts used in old repair kit assembly, not illustrated

1шт.

702961R1

SCREW

SPARE PART retainer, parts used in old repair kit assembly, not illustrated

2шт.

708958R1

WASHER

oil seal metal, parts used in old repair kit assembly, not illustrated

1шт.

708959R1

WASHER

oil seal fabric, parts used in old repair kit assembly, not illustrated

1шт.

3066540R91

STRIPPER PACKAGE

first aid repair BD-17 as required consists of Ref, parts used in old repair kit assembly, not illustrated

1шт.

3044458R91

SPRING

SET, primer parts as required, parts used in old repair kit assembly, not illustrated

1шт.

3043370R1

GASKET

feed pump, parts used in old repair kit assembly, not illustrated

1шт.

3061658R1

GASKET

feed pump, parts used in old repair kit assembly, not illustrated

1шт.
