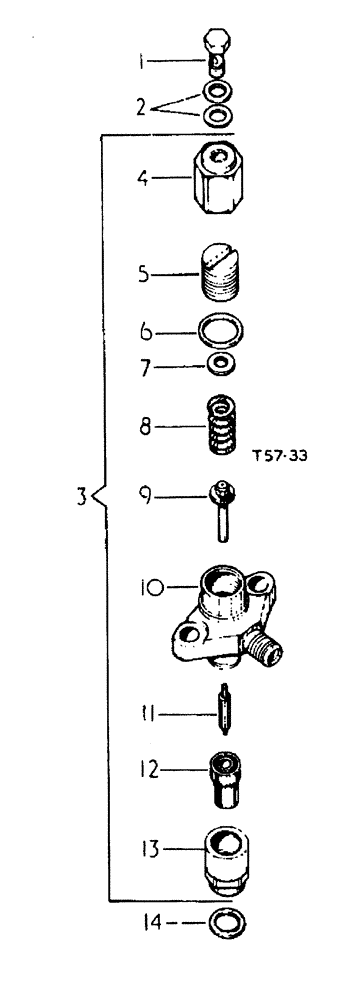

Запчасти Case 500 (12-068) - INJECTION NOZZLE DIESEL ENGINE No Description

1

705498R1

STUD,M8 x 14mm

banjo

4шт.

2

703519R1

WASHER

banjo, stud

8шт.

3

3040870R84

NOZZLE and HOLDER CPTE., injection C.A.V. set @ ATS

4шт.

4

3105349R1

NUT

nozzle holder, cap

1шт.

5

895579H1

SPARE PART spring, cap

1шт.

6

895581H1

WASHER

1шт.

7

895578H1

WASHER

shim

1шт.

8

3066625R1

SPRING

1шт.

9

3105348R91

SPINDLE

ASSY.

1шт.

10

3105347R91

BODY

1шт.

11

3040871R91

NOZZLE CAP

CPTE., injection

1шт.

12

3072556R92

HOLDER, INJECTOR NOZ

HOLDER, injection nozzle CPTE., comprises Ref.

1шт.

13

3105346R1

NUT

nozzle CAP

1шт.

14

706291

WASHER pressure setting must be

4шт.
