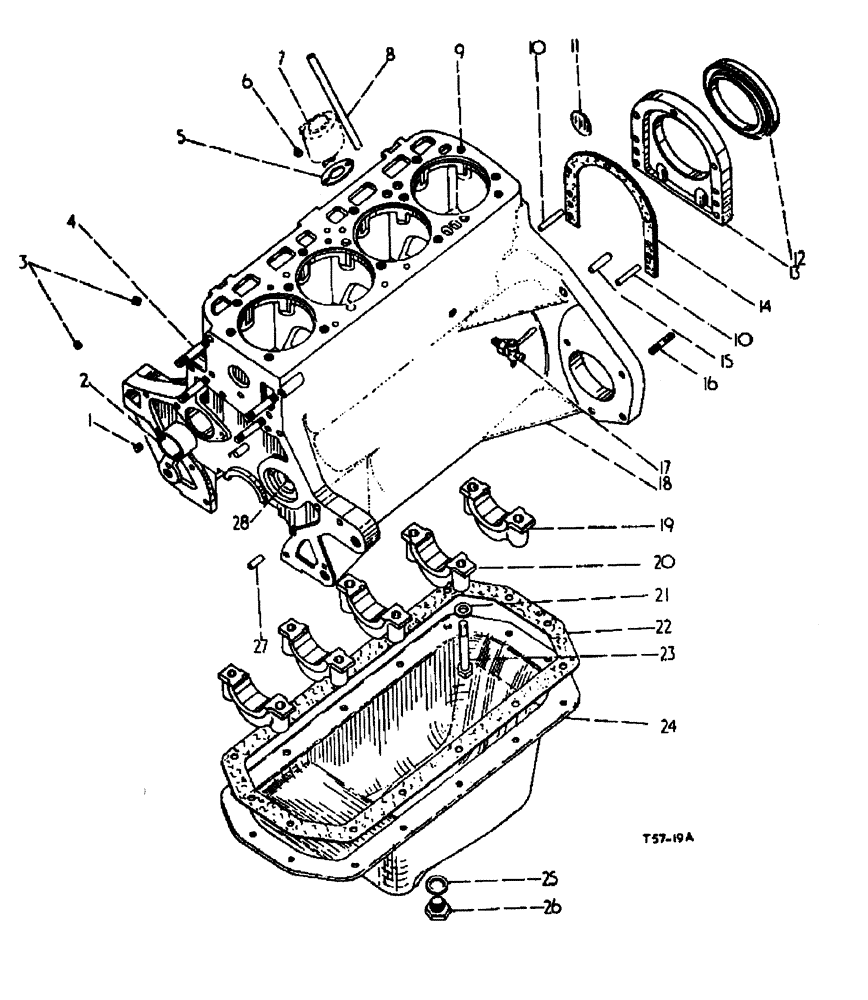

Запчасти Case 500 (12-064) - CRANKCASE AND OIL PAN DIESEL ENGINE No Description

1

444691

PLUG

pipe slotted headless, 1/4

1шт.

2

703827R1

CAMSHAFT BEARING

camshaft, front

1шт.

12

703828R1

CAMSHAFT BEARING

camshaft, center

1шт.

2

703829R1

CAMSHAFT BEARING

camshaft, rear

1шт.

3

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1шт.

4

NSS

NOT SOLD SEPARAT

see water pump

1шт.

5

NSS

NOT SOLD SEPARAT

not applicable

1шт.

6

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

Not applicable

1шт.

8

751826R1

TUBE,0.375" OD, 5.75" Length

dipstick

1шт.

9

751834R1

INSERT

heli-coil thread, 7/16 x 14

16шт.

10

141223

DOWEL,5/16" x 1"

dowel, crankshaft rear, oil seal retainer

1шт.

11

172578

PLUG,Exp, 1 3/4"

expansion, type 1, 1-304 dia.

1шт.

12

3072092R91

OIL SEAL

rear, cankshaft

1шт.

13

708904R1

RETAINER

crankshaft rear, oil seal

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

crankshaft rear, oil seal reatainer

7шт.

103320

LOCK WASHER,5/16"

1шт.

14

708907R2

OIL SEAL

crankshaft rear, oil seal retainer

1шт.

15

141287

DOWEL,1/2" x 1 1/2"

dowel

1шт.

16

703877R1

STUD

starter motor

1шт.

17

444734

PLUG,Sq Hd, 1/4"-18 NPTF

water drain

1шт.

18

3047288R31

CRANKCASE

CPTE.

1шт.

3061211R1

BOLT,1/2" - 13 x 2.875"

10шт.

703827R1

CAMSHAFT BEARING

1шт.

703828R1

CAMSHAFT BEARING

1шт.

703829R1

CAMSHAFT BEARING

BUSH

1шт.

708902R1

CAP

CAP

1шт.

706491R1

CAP

CAP

1шт.

751834R1

INSERT

16шт.

751610R1

INSERT

1шт.

141223

DOWEL,5/16" x 1"

1шт.

37-1616

DOWEL,3/8" x 1"

1шт.

141287

DOWEL,1/2" x 1 1/2"

1шт.

172578

PLUG,Exp, 1 3/4"

1шт.

444691

PLUG

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1шт.

703877R1

STUD

1шт.

106794

VALVE

1шт.

751826R1

TUBE,0.375" OD, 5.75" Length

1шт.

3061325R1

WASHER

10шт.

19

708902R2

BEARING CAP,2.273" ID x 1.1013"

crankshaft bearing, rear, as required

1шт.

20

706491R2

CAP

crankshaft bearing as required

1шт.

21

3061325R1

WASHER

crankshaft, bearing, cap bolt

10шт.

22

703840R1

GASKET

crankcase pan

1шт.

23

3061211R1

BOLT,1/2" - 13 x 2.875"

crankshaft bearing, cap

10шт.

24

3064063R11

SUMP

PAN, oil crankcase, CPTE.

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

1шт.

25

3405H

GASKET

crankcase pan, drain plug

1шт.

25

3043644R1

WASHER

GASKET crankcase pan, drain plug

1шт.

26

445096

PLUG

drain, crankcase pan

1шт.

751610R1

INSERT

not illustrated

1шт.

37-1616

DOWEL,3/8" x 1"

not illustrated

1шт.

3073687R93

SPARE PART service, crankcase, and crankshaft, not illustrated

1шт.

708910R91

BEARING ASSY

not illustrated

1шт.

3064523R11

CRANKSHAFT BEARING

not illustrated

4шт.

3070536R11

BEARING

not illustrated

4шт.

3047288R31

CRANKCASE

not illustrated

1шт.

3065298R91

SHAFT

CRANK, not illustrated

1шт.

3061216R91

CONNECTING ROD

PACKAGE conn-rods, not illustrated

1шт.

3044478R94

PISTON ASSY.

PACKAGE, sleeves and pistons, not illustrated

1шт.

3042468R1

COVER

SPARE PART hourmeter, drive opening, not illustrated

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Not illustrated

1шт.

103319

LOCK WASHER,1/4"

Not Illustrated

1шт.

3042467R1

GASKET

hourmeter, drive opening, not illustrated

2шт.
