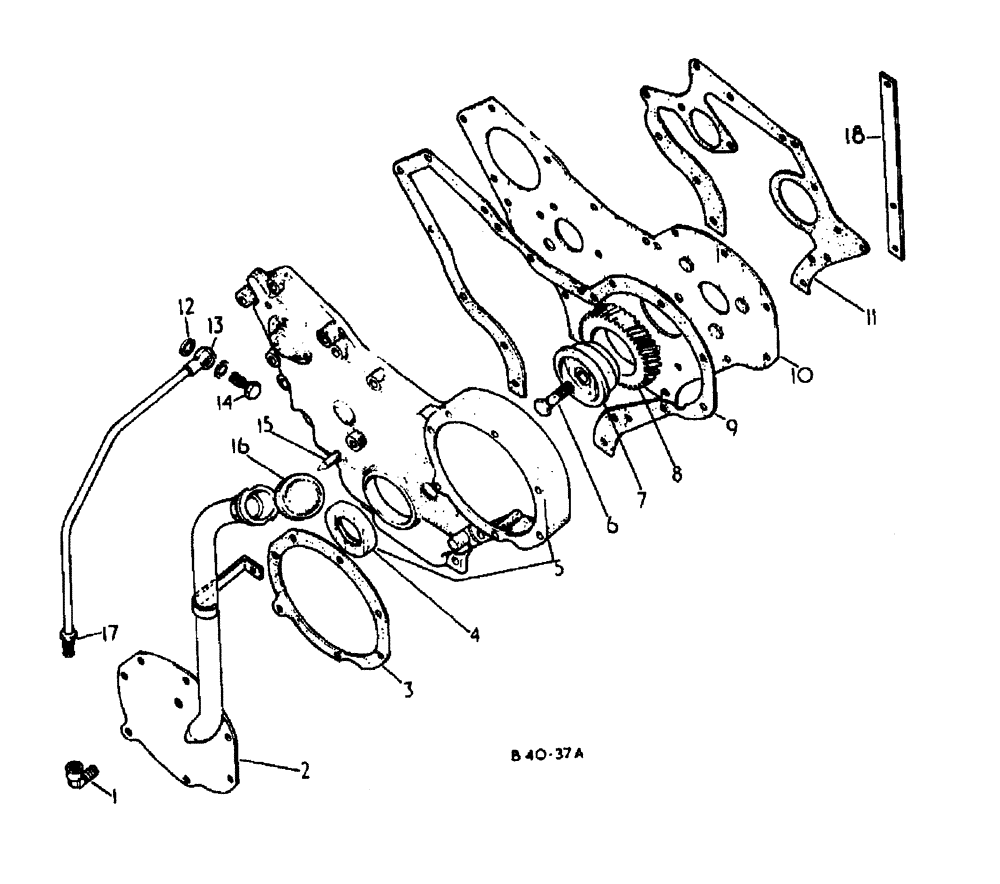

Запчасти Case 500 (12-062) - FRONT COVERS DIESEL ENGINE No Description

1

3110596R1

ELBOW

breather INJ pump gear cover end

1шт.

2

3114618R2

COVER

oil filler, CPTE.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

5шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

7шт.

3

703849R1

GASKET

INJ pump gear cover

1шт.

4

3108650R91

SEAL

crankshaft, front

1шт.

5

895502H1

SPARE PART

COVER front crankcase, CPTE. w/seal 3108650R91, and pointer 3067393R1

1шт.

5

3071158R11

COVER

front crankcase CPTE., w/seal 3108650R91, and pointer 3067393R1, optional

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

8шт.

6

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

hex head, 1/2 UNF x 1-7/8

1шт.

7

703853R11

SHAFT

idler gear CPTE., w/ pin 932039R1

1шт.

932039R1

LOCK PIN,M3 x 16, Slotted

3 mm x 16 mm

1шт.

8

703852R1

GEAR

idler

1шт.

9

708285R2

GASKET

crankcase front cover

1шт.

10

709901R11

PLATE

crankcase front CPTE.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

3047230R1

SCREW

MACH crankcase front plate

2шт.

703636R1

WASHER

tab front plate bolt

1шт.

11

709903R2

GASKET

crankcase front plate

1шт.

12

708297R1

GASKET

WASHER, breather pipe banjo bolt

2шт.

13

3043654R92

HOSE

PIPE, crankcase breather, CPTE.

2шт.

14

708296R1

CONNECTOR, ELEC

CONNECTOR BOLT, banjo breather pipe

1шт.

14

3070324R1

BOLT,1/2" - 20 x 1.067"

banjo breather pipe, optional

1шт.

15

3067393R1

INDICATOR

timing

1шт.

16

3049863R91

CAP

oil filler

1шт.

3070882R1

WASHER

paroid fibre

1шт.

17

700153R11

NUT

connector, crankcase breather pipe, CPTE.

1шт.

17

222-504

TUBE NUT,9/16"-20

connector crankcase breather pipe, CPTE., optional

1шт.

18

3124357R1

BRACKET

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

80681

LOCK WASHER,5/16"

1шт.
