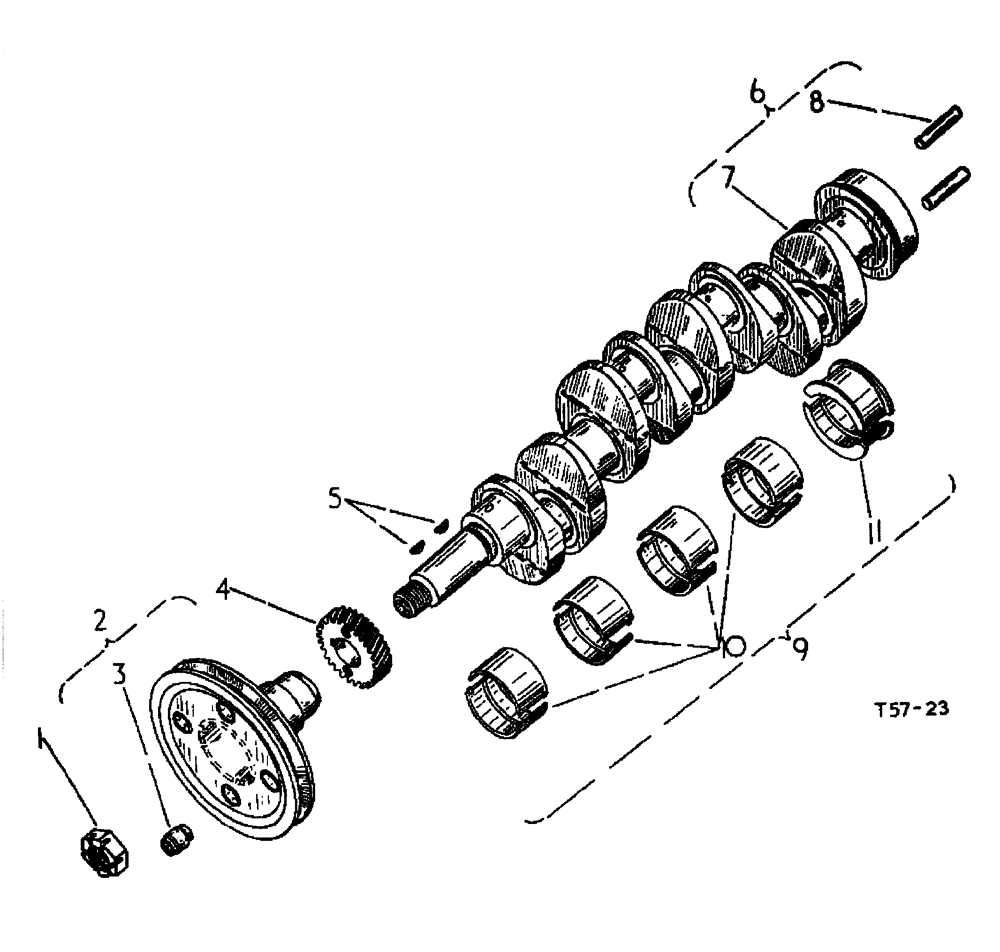

Запчасти Case 500 (12-060) - CRANKSHAFT DIESEL ENGINE No Description

1

NLS

NO LONGER SERVICED

lock hex, 1 in.

1шт.

2

3047453R11

PULLEY

fan drive, CPTE., w/ four bush 3047454R1

1шт.

3

3047454R1

BUSHING

fan drive, pulley

4шт.

4

703865R1

GEAR

crankshaft, 33 teeth

1шт.

5

218221

KEY crankshaft pinion

1шт.

6

3065298R91

SHAFT

CRANK CPTE.

1шт.

7

3040379R3

CRANKSHAFT

1шт.

8

3065299R1

PIN

dowel, flywheel

2шт.

9

708912R91

CRANKSHAFT BEARING

main STD w/ bearing 708910R91, and four 708910R91, bearing 3064523R11, as required

1шт.

9

708913R91

CRANKSHAFT BEARING

CRANKSHAFT main .030 undersize, w/bearing 708911R91, and four bearing 3064524R11, as required

1шт.

9

708914R91

CRANKSHAFT BEARING

CRANKSHAFT main .015 undersize, w/bearing 708915R91, and four 3064525R11, as required

1шт.

10

3064523R11

CRANKSHAFT BEARING

main front, and center, STD CPTE.

4шт.

10

3064524R11

BEARING LINER

CRANKSHAFT main front, and center, .030, CPTE.

4шт.

10

3064525R11

BEARING LINER

CRANKSHAFT main front, and center, .015, CPTE., each consists of one upper, and lower half

4шт.

11

708910R91

BEARING ASSY

CRANSHAFT main rear, STD CPTE.

1шт.

11

708911R91

BEARING ASSY

CRANKSHAFT main rear, .030, CPTE.

1шт.

11

708915R91

BEARING ASSY

CRANKSHAFT main rear, .015, CPTE., each consists of two halves

1шт.
