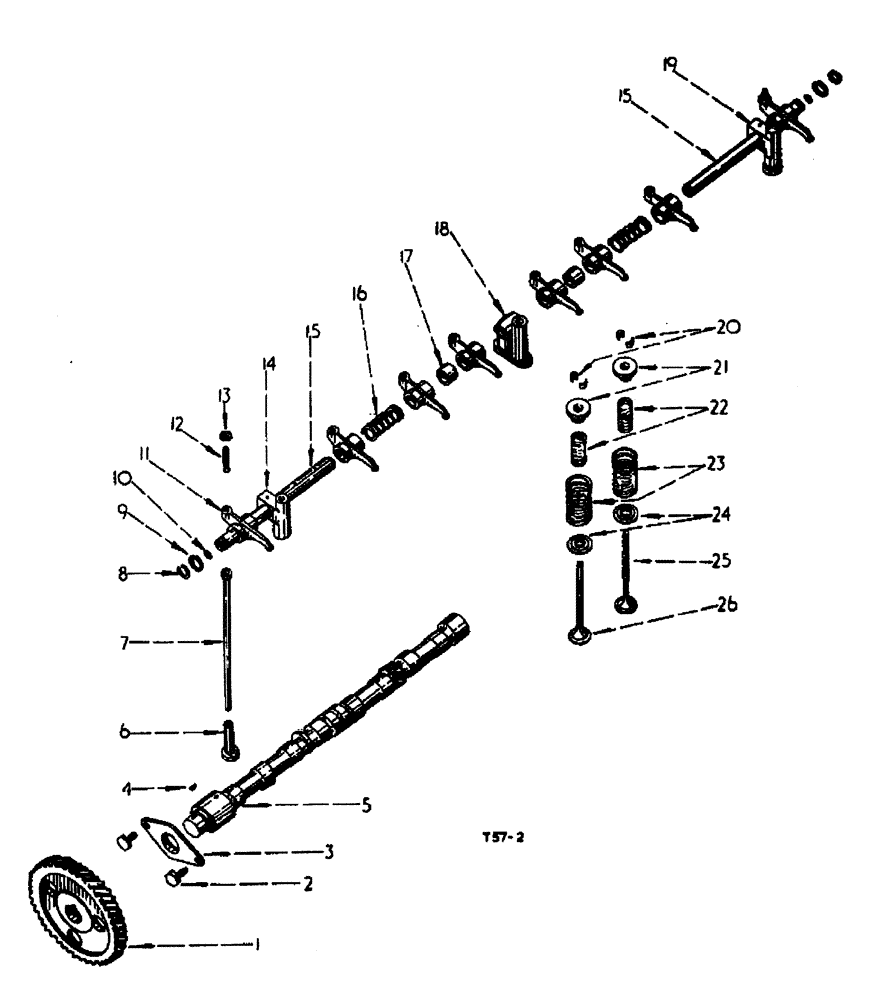

Запчасти Case 500 (12-054) - CAMSHAFT AND VALVE MECHANISM DIESEL ENGINE No Description

1

3064085R91

GEAR

camshaft 66 teeth

1шт.

2

26058D

SCREW

camshaft thrust plate

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

2шт.

3

43249D

PLATE

thrust, camshaft

1шт.

4

218217

KEY

camshaft gear

1шт.

5

3064086R91

GEAR

CAMSHAFT ASSY.

1шт.

5

3063934R1

CAMSHAFT

1шт.

6

704782R1

TAPPET

valve

8шт.

7

704783R2

ROD

push, valve

8шт.

8

43375D

RING

snap, valve lever, shaft

2шт.

9

43374D

SPRING WASHER

spring valve lever, shaft

2шт.

10

172528

PLUG,Exp, 9/16"

end, valve lever, shaft

2шт.

11

706131R11

ROCKER

LEVER valve CPTE., w/eight bushing 24564DA, optional

8шт.

12

3108732R1

ADJUSTMENT SCREW

adjusting valve, lever

8шт.

13

133093R1

NUT,Hex, 3/8" - 24

screw, adjusting valve, lever

8шт.

14

703886R2

SUPPORT

BRACKET valve lever shaft, front

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

groove, 3/8 x 1-1/4

1шт.

15

703884R21

CAMSHAFT

valve lever CPTE., w/plug 172528

2шт.

16

45949D

SPRING

valve lever

2шт.

17

703893R2

SPACER

valve lever

2шт.

18

703885R1

SUPPORT

BRACKET valve lever shaft, center

1шт.

19

703887R2

SUPPORT

BRACKET valve lever shaft, rear

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

groove, 3/8 x 1-1/4

1шт.

20

704443R1

WEDGE

LOCK valve spring

16шт.

21

3044176R1

CUP

retainer, valve spring, upper

8шт.

22

3044239R1

VALVE SPRING

valve, inner

8шт.

23

3044240R1

VALVE SPRING

valve, outer

8шт.

24

3044491R1

CUP

retainer, valve spring, lower

1шт.

25

3040361R1

OVERSIZE INLET VALVE

intake

4шт.

26

3043826R1

LOCK VALVE

exhaust

4шт.

24564DA

BUSHING

valve lever, not illustrated

8шт.
