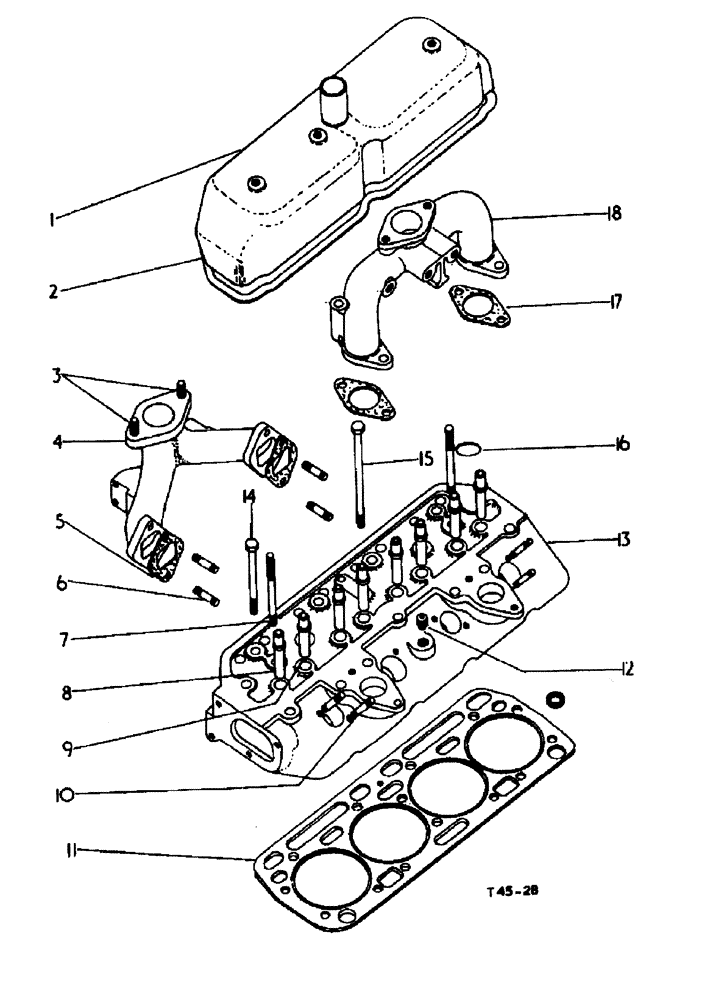

Запчасти Case 500 (12-048) - CYLINDER HEAD AND MANIFOLDS DIESEL ENGINE No Description

1

3064720R11

SPARE PART valve housing, CPTE.

1шт.

1

703894R21

COVER

valve housing, CPTE., optional

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

2шт.

Q1597

WASHER

flat, 13/32 x 3/4 x 16 gallon

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

2

3069767R1

GASKET

valve cover

1шт.

3

704164R1

STUD

exhaust, manifold

2шт.

4

3042719R11

MANIFOLD

exhaust, CPTE., w/two STUD 704164R1

1шт.

4

3045354R11

MANIFOLD

exhaust, CPTE., w two STUD 704164R1, optional

1шт.

5

704165R2

MANIFOLD GASKET

exhaust manifold

2шт.

6

703874R1

STUD

exhaust manifold

4шт.

280136

NUT,3/8"-16, G8

NUT, , Exhaust manifold stud 3/8"-16, G8

4шт.

7

703875R1

STUD

rocket, shaft end, bracket

2шт.

8

3044493R1

VALVE GUIDE

exhaust, valve stem

4шт.

9

3044492R1

VALVE GUIDE

intake, valve stem

8шт.

10

703876R2

STUD

injection, nozzle holder

8шт.

11

703883R6

GASKET

cylinder head

1шт.

3049382R1

GROMMET

cylinder head, gasket, as required

1шт.

12

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

pipe square head, 1/2 cast iron

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Pipe, Malleable, Optional

1шт.

13

3044489R91

CYLINDER HEAD

ASSY., CPTE., w/valves

1шт.

3044176R1

CUP

8шт.

3044491R1

CUP

8шт.

3044490R91

HEAD (CYLINDER)

1шт.

704443R1

WEDGE

LOCK

16шт.

3044239R1

VALVE SPRING

8шт.

3044240R1

VALVE SPRING

8шт.

3040361R1

OVERSIZE INLET VALVE

4шт.

3043826R1

LOCK VALVE

4шт.

3044490R91

HEAD (CYLINDER)

ASSY., less valves, as required

1шт.

3044492R1

VALVE GUIDE

4шт.

3044493R1

VALVE GUIDE

4шт.

172558

PLUG,Exp, 1 1/4"

2шт.

703874R1

STUD

4шт.

703875R1

STUD

2шт.

703876R2

STUD

8шт.

14

708331R1

BOLT

cylinder head, short

15шт.

15

708332R1

BOLT,Cyl Hd

cylinder head, long

1шт.

63116D

WASHER

cylinder, head bolt

16шт.

16

172558

PLUG,Exp, 1 1/4"

expansion

2шт.

17

704162R1

MANIFOLD GASKET

intake manifold

2шт.

18

3049869R1

MANIFOLD

air intake

1шт.

186279

BOLT,Hex, 3/8" - 16 x 3 1/8", Gr 5

hex head, 3/8 x 3-1/8

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

4шт.

710348R1

GLOW PLUG

not illustrated

4шт.

3047624R1

NUT

terminal as required, not illustrated

1шт.

3065070R1

ELECTRICAL WIRE

WIRE connecting no. 1 glow-plug, not illustrated

1шт.

708127R2

ELECTRICAL WIRE

WIRE connecting no. 1-2, 3-4, glow plug, not illustrated

2шт.

708128R2

ELECTRICAL WIRE

WIRE connecting no. 2-3 glow-plug, not illustrated

1шт.

710474R1

ISOLATOR

INSULATOR glow-plug, not illustrated

4шт.
