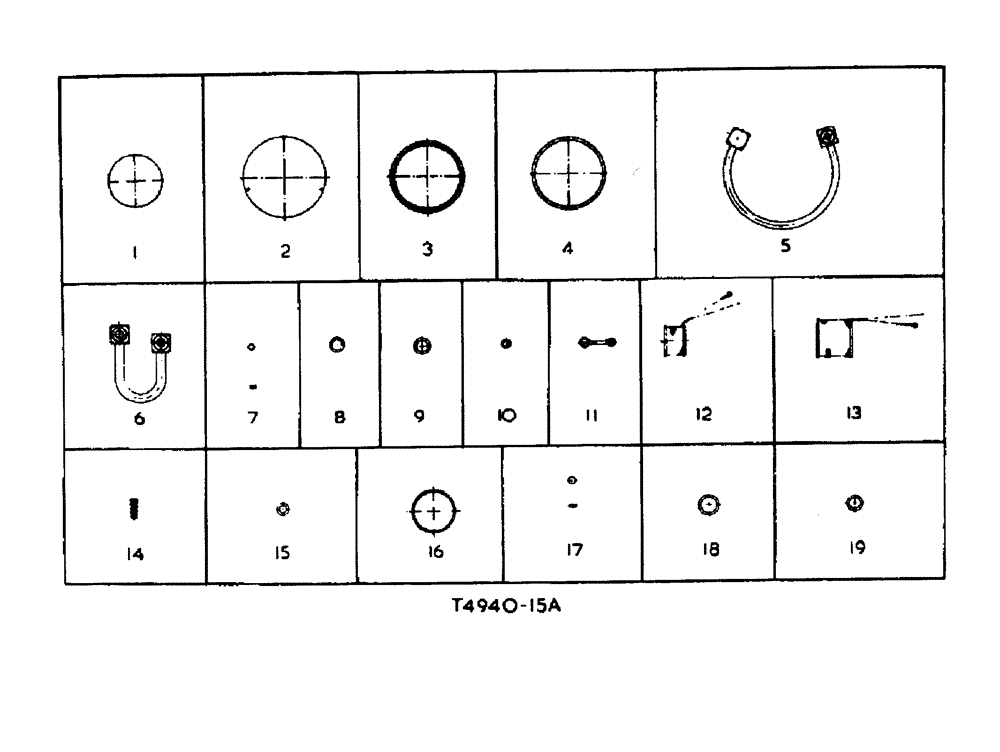

Запчасти Case 500 (12-046) - VAPORISER REPAIR KIT No Description

1

NSS

NOT SOLD SEPARAT

DIAPHRAGM regulator, first stage

1шт.

2

NSS

NOT SOLD SEPARAT

DIAPHRAGM regulator, second stage

1шт.

3

NSS

NOT SOLD SEPARAT

DIAPHRAGM water sealing

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL o-ring, LP chamber

1шт.

5

NSS

NOT SOLD SEPARAT

PIPE heating primary

1шт.

6

NSS

NOT SOLD SEPARAT

PIPE heating secondary

1шт.

7

NSS

NOT SOLD SEPARAT

PAD pressure relief valve, 2 mm x 8 mm

1шт.

8

NSS

NOT SOLD SEPARAT

RING sealing heating pipe

1шт.

9

NSS

NOT SOLD SEPARAT

RING sealing heating pipe, large

1шт.

10

NSS

NOT SOLD SEPARAT

RING sealing heating pipe, small

1шт.

11

NSS

NOT SOLD SEPARAT

VALVE seat assembly, stage regulator

1шт.

12

NSS

NOT SOLD SEPARAT

COIL primary solenoid, 6V or 12V

1шт.

13

NSS

NOT SOLD SEPARAT

COIL solenoid shut off 6V or 12V

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING regulator control, second stage

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING filter, bottom end

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING regulator control, second stage

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING filter, top seal

1шт.

17

NSS

NOT SOLD SEPARAT

PAD regulator valve, first and second stage, 2 mm x 8 mm

1шт.

18

NSS

NOT SOLD SEPARAT

RING sealing, gas nozzle

1шт.

19

NSS

NOT SOLD SEPARAT

RING sealing, water nozzle

1шт.
