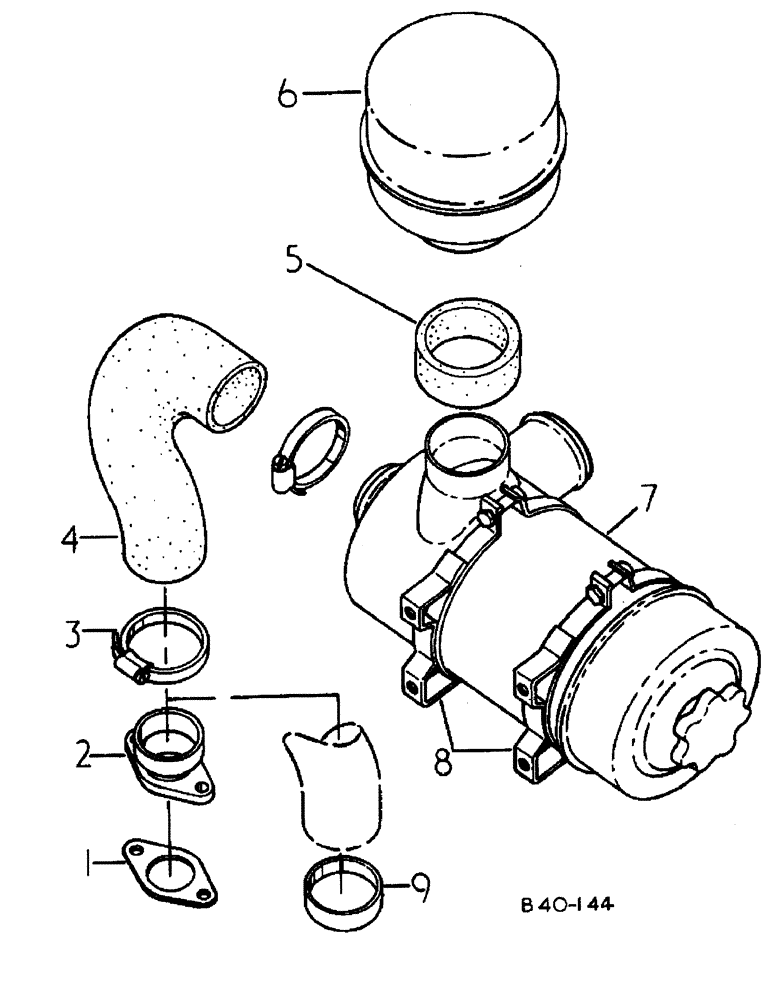

Запчасти Case 500 (12-032) - AIR CLEANER AND CONNECTIONS- 500/1335 UP No Description

1

3049815R1

GASKET

air intake flange diesel only

1шт.

2

3114508R1

FLANGE

air intake diesel only

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

3

3065136R91

CLAMP

hose

2шт.

4

3120486R1

HOSE

air cleaner

1шт.

5

3114507R1

SPARE PART

SEAL air, Serial Range: cleaner,-hood

1шт.

6

3114506R1

HOOD

rain

1шт.

6

49464DA

CYLINDER END CAP

HOOD rain, optional

1шт.

7

3124532R1

CLEANER air, for components, see list of details under air cleaner

1шт.

8

3114505R1

BAND

mountings

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

WASHER lock spring, 3/8

1шт.
