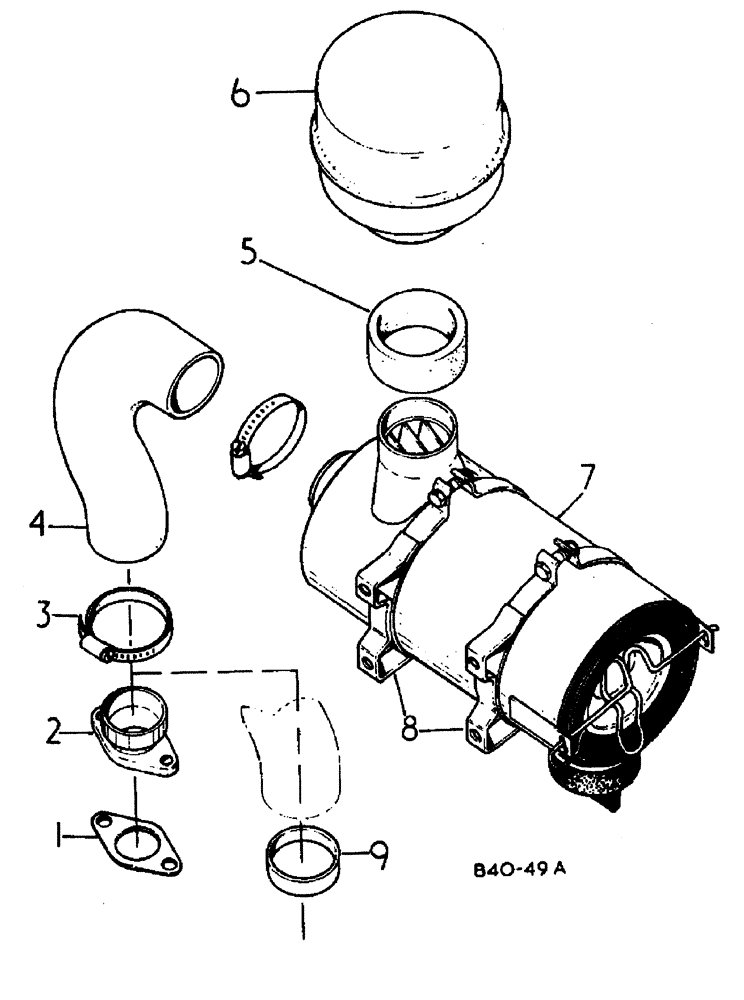

Запчасти Case 500 (12-030) - AIR CLEANER AND CONNECTIONS UP TO 500PL/1334 No Description

1

3049815R1

GASKET

air intake flange, diesel only

1шт.

2

3114508R1

FLANGE

air intake, diesel only

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

3025291R91

CLIP

hose, upto 500PL/1116, diesel

2шт.

3

3065136R91

CLAMP

hose, 500PL/1117, diesel up

2шт.

4

3114509R2

INTAKE AIR HOSE,2.50" ID x 14.50"

Air Cleaner, To intake flange petrol, and L.P.G., Order 3120486R1, w/two clip

1шт.

4

3120486R1

HOSE

air cleaner, diesel only

1шт.

5

3114507R1

SPARE PART

SEAL air, Serial Range: cleaner,-hood

1шт.

6

3114506R1

HOOD

rain

1шт.

6

49464DA

CYLINDER END CAP

HOOD rain, optional

1шт.

7

3114504R92

FILTER CARTRIDGE

CLEANER air, for components, see list of parts under details, of air cleaner

1шт.

8

3114505R1

BAND

mounting

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

103321

LOCK WASHER,3/8"

4шт.

9

3114510R1

RING

intake hose, to carburettor, petrol, and L.P.G. tartarini vaporiser reg.

2шт.

3110054R91

REGULATOR

Tartarini, vaporiser consists of first, and second stage diaphragm, heating pipes, support bracket, vaporiser repair kits, for components, see list of parts under detail

1шт.

3110053R1

BRACKET

support

1шт.
