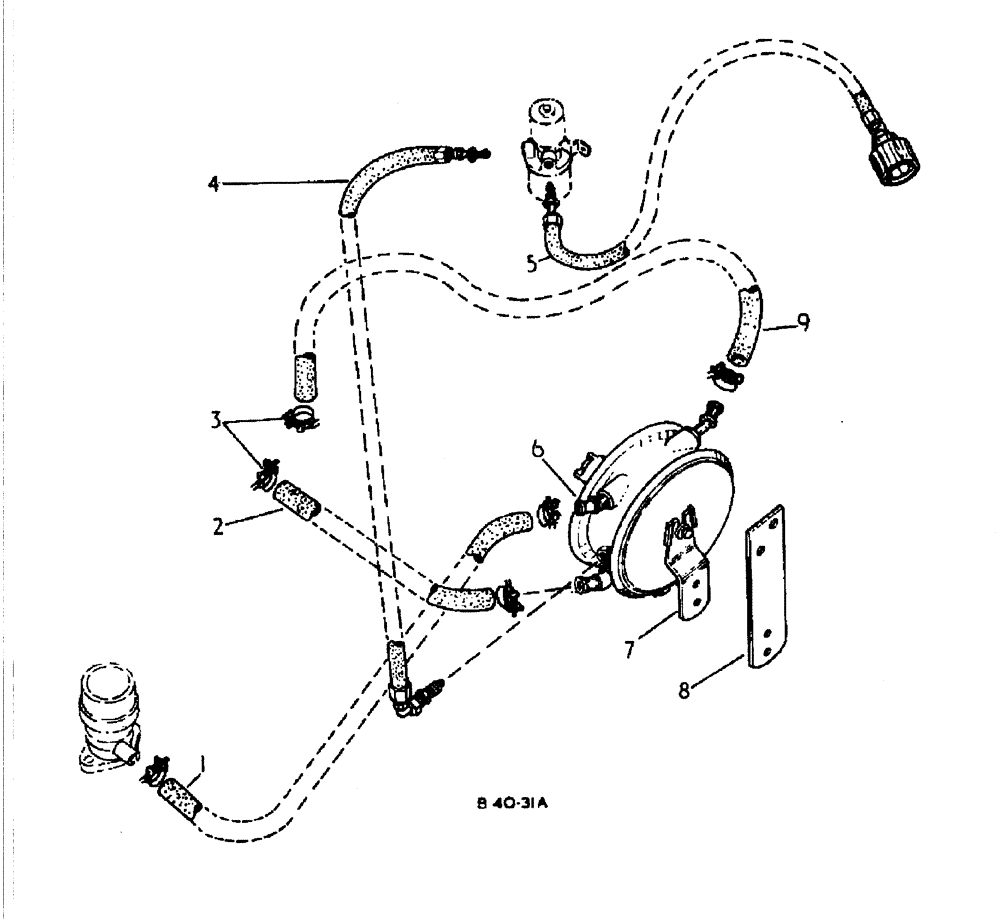

Запчасти Case 500 (12-028) - REGULATOR AND HOSES L.P.G. EQUIPMENT No Description

1

3117049R1

HOSE, 1/2 neoprene

1шт.

2

3114646R1

HOSE

1/2 water, vaporiser

1шт.

NSS

NOT SOLD SEPARAT

REGULATOR INLET

1шт.

3

3065128R91

COLLAR CLAMP

CLIP hose

6шт.

4

3114649R1

HOSE

ARMOURED ASSY.

1шт.

5

3114648R1

HOSE

ARMOURED ASSY. w/coupling

1шт.

6

3110054R91

REGULATOR

Tartarini vaporiser CPTE., for components, see list of parts under details Tartarini vaporiser reg.

1шт.

7

3110053R1

BRACKET

support

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

3114647R1

BAR

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

2шт.

9

3114645R1

HOSE, 1/2 water

1шт.

751686R1

SPARE PART CONNECTOR, ripaults SS3, not illustrated

1шт.
