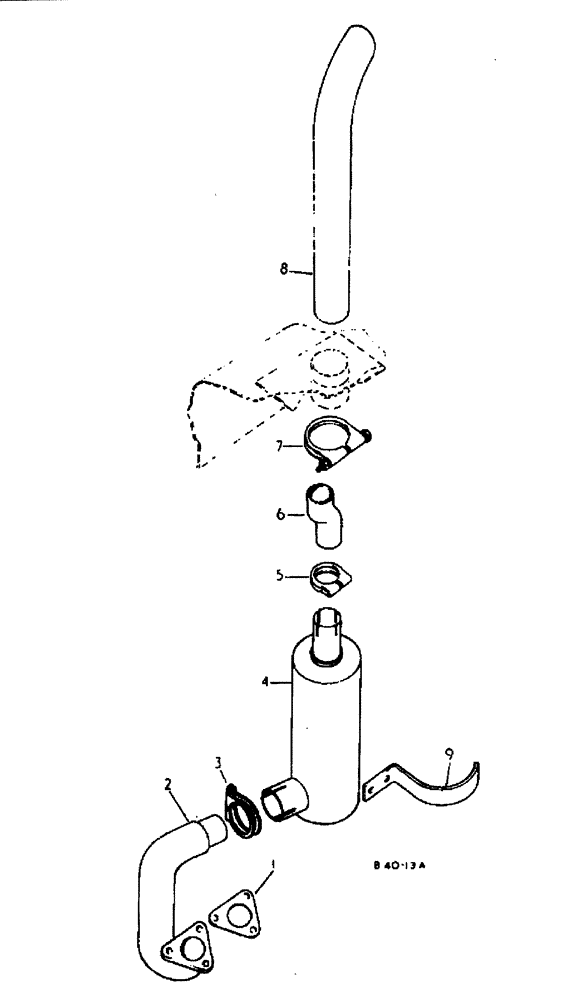

Запчасти Case 500 (12-026) - EXHAUST SYSTEM PETROL/L.P.G. No Description

1

3060566R1

GASKET

exhaust, Serial Range: pipe,-manifold

1шт.

2

3114511R1

PIPE

, Serial Range: engine,-muffler

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

3

3114630R91

CLAMP

exhaust, Serial Range: pipe,-muffler

1шт.

4

3060017R91

MUFFLER

SPARE PART exhaust

1шт.

5

894660H1

CLIP

1шт.

181349

BOLT,Hex, 5/16" - 24 x 2 1/2", Gr 5

1шт.

425-115

NUT,5/16"-24, G5

1шт.

103020

NUT

WASHER lock, 5/16

1шт.

95-11034

WASHER,1/4"

plain, 11/32 x 11/16 x .065

2шт.

6

3114636R1

PIPE

exhaust upto 1173

1шт.

6

3119782R1

PIPE exhaust, 1174 up

1шт.

7

895909H1

FASTENER

CLIP exhaust pipe

1шт.

8

3114634R1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

9

3114632R1

CLAMP

exhaust muffler

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

L2782

2шт.
