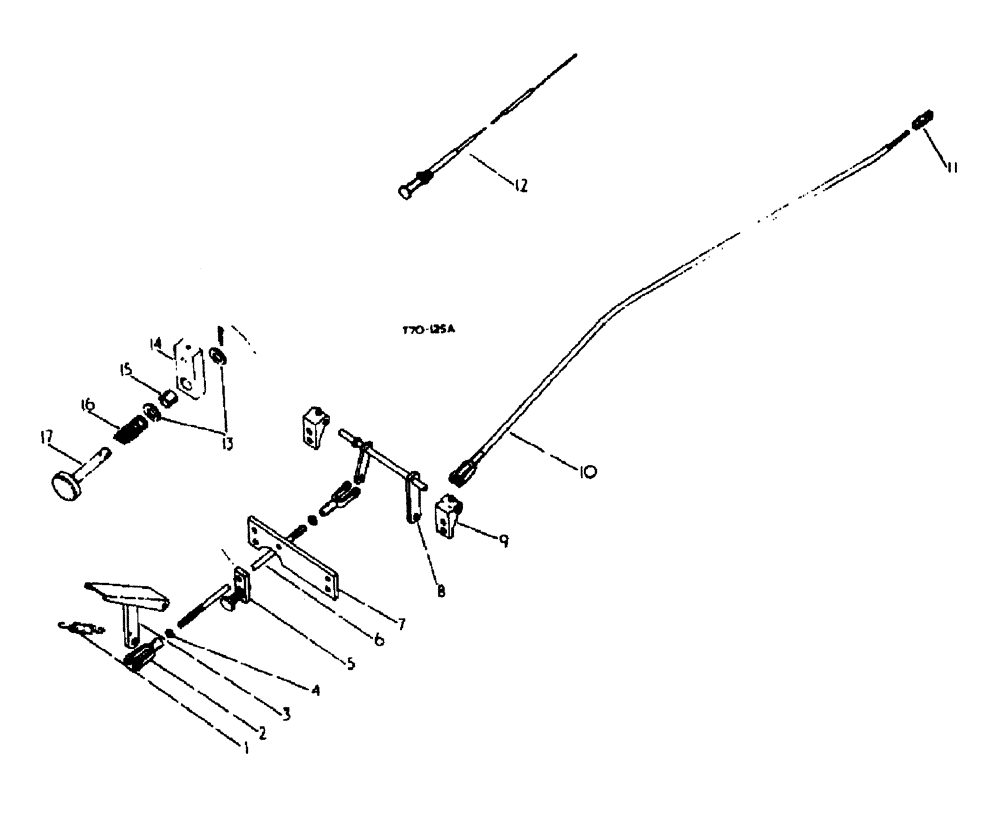

Запчасти Case 500 (12-022) - ACCELERATOR AND CHOKE LINKAGE No Description

1

12755D

SPRING

pedal return

1шт.

2

104037

CLEVIS

rod end, 5/16 x 2-1/4

2шт.

3

3049800R11

PEDAL

accelerator CPTE.

1шт.

U5355

SPARE PART,3/8" x 2 1/16"

PIN PIN STD headed, 3/8 x 2 - 1/16

1шт.

108630

COTTER PIN,1/8" x 7/8"

1шт.

4

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

5

3108751R12

ARM

actuating micro switch

1шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

hex head, 1/4 UNF x 3/4

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

6

3049802R1

ROD

accelerator, Serial Range: pedal,-bellcrank

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

rod end, 5/16 x 31/32

2шт.

107762

WASHER,3/32" x 5/8"

2шт.

7

895464H1

SUPPORT bellcrank

1шт.

8

895460H1

LEVER CPTE.

1шт.

181314

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5

hex head, 1/4 UNF x 7/8

4шт.

414-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

1шт.

109084

NUT,1/4"-20, G5

5шт.

103319

LOCK WASHER,1/4"

5шт.

9

HA800

SPARE PART accelerator

2шт.

117715

LUBRICATOR, 1/4 - 28 x 45 deg.

2шт.

10

895465H1

ROD ACCELERATOR ASSY.

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

rod end, 5/16

1шт.

107762

WASHER,3/32" x 5/8"

1шт.

11

3068537R1

TRUNNION

END control rod

1шт.

12

895469H1

CABLE choke control CPTE., petrol

1шт.

13

120393

BEARING WASHER,5/16", SAE

2шт.

14

3108751R1

ARM micro switch actuating

1шт.

15

3108752R1

BUSHING

3/8 oilite

1шт.

16

3072161R1

SPRING

1шт.

17

3108753R2

VALVE

PLUNGER

1шт.

137159

COTTER PIN

3/32" x 5/8"

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Not Illustrated

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

Not illustrated

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065), Accelerator pedal stop, Floor plate, Not Illustrated

1шт.
