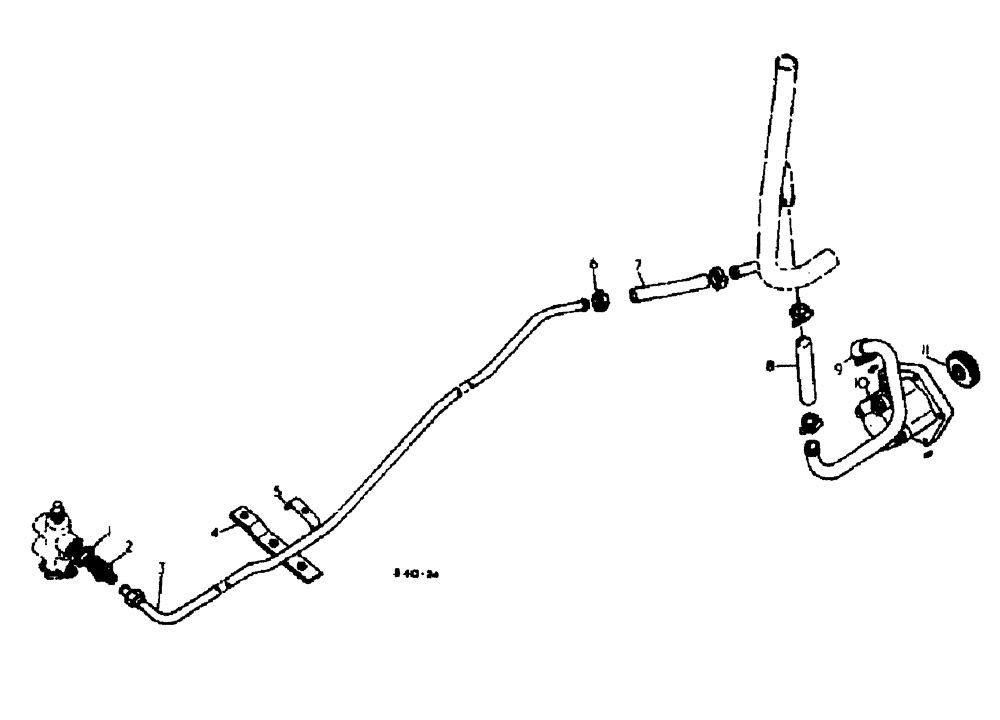

Запчасти Case 500 (10-028) - LINE, POWER STEERING SUCTION No Description

1

708496R1

SEAL

WASHER dowty

1шт.

2

894149H1

UNION

1шт.

3

3114574R1

PIPE

PIPE ASSY., relief, Serial Range: valve,-suction

1шт.

4

3114576R1

SPARE PART comlete

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

5

3114578R1

CLAMP

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

6

3065216R91

CLIP

4шт.

7

3114560R1

HOSE

1шт.

8

3106782R1

HOSE,1.00", SAE R30R2

Bulk, Order Length Required

1шт.

9

3114561R1

PIPE

ASSY., power steering suction

1шт.

10

704330R95

PUMP

power steering hydraulic for components, see list of parts under details power steering hydraulic pump

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

3шт.

426444

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

hex head, 5/16 x 3/4

1шт.

95-11034

WASHER,1/4"

13/32 x 11/16 x .065

1шт.

11

704331R1

GEAR

HYDRAULIC pump

1шт.

703851R1

GASKET

HYDRAULIC pump, opening cover, not illustrated

1шт.
