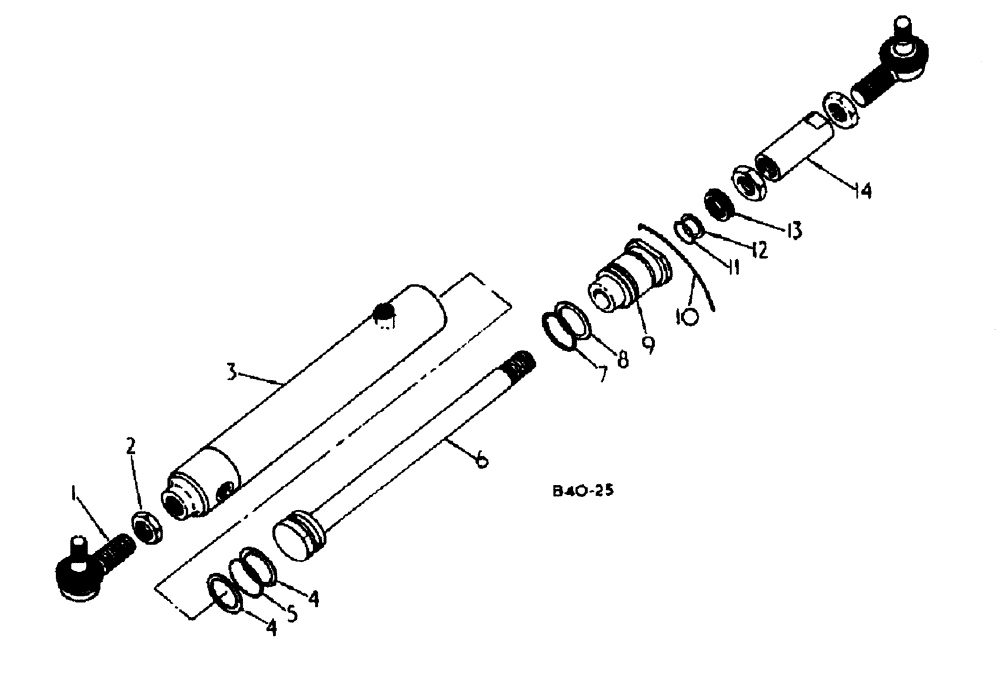

Запчасти Case 500 (10-026) - POWER STEERING CYLINDER No Description

1

3114544R91

CYLINDER

power steering

1шт.

1

3114922R1

BALL JOINT

SOCKET ASSY., power steeing cylinder

1шт.

NSS

NOT SOLD SEPARAT

END

2шт.

3041569R1

NUT

lock, 5/8 UNF

2шт.

103375

COTTER PIN,3/32" x 1 1/4"

2шт.

575812R1

WASHER

2шт.

2

3068199R1

SPECIAL NUT

special, 13/16

3шт.

3

3114545R91

CYLINDER

ASSY.

1шт.

4

3114553R1

WASHER

back up

2шт.

5

461173R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

6

3114550R1

ROD

ASSY., piston

1шт.

7

290987R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

8

3114555R1

WASHER

SPARE PART back up

1шт.

9

3114554R1

HEAD

cylinder rear

1шт.

10

461180R1

RETAINER

RING

1шт.

11

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

12

3114556R1

WASHER

SPARE PART back up

1шт.

13

3071553R2

SEALING RING

scraper, wyclip

1шт.

14

3114557R1

ADJUSTER

SPARE PART

1шт.
