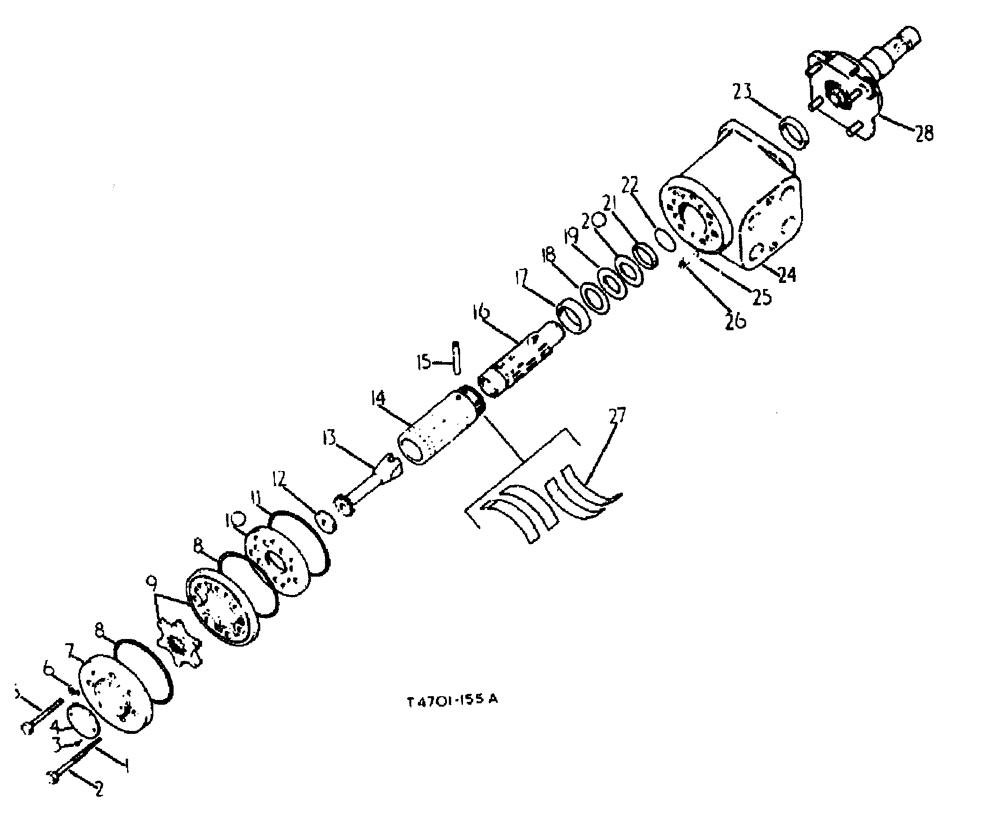

Запчасти Case 500 (10-024) - INTEGRAL POWER STEERING VALVE No Description

67698C91

HYDRAULIC VALVE

ASSY., integral power steering

1шт.

1

NSS

NOT SOLD SEPARAT

PIN rolled

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW

2шт.

4

NSS

NOT SOLD SEPARAT

PLATE rating

1шт.

5

3146908R1

BOLT,M8 x 1 x 35mm

plain

5шт.

5

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

drilled

1шт.

6

3141538R1

WASHER

WASHER

7шт.

7

3112273R1

COVER

CAP end

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

2шт.

9

538918R1

ROTOR ASSY.

SET orbit drive, consists of Ref.12 and 13

1шт.

10

3112276R1

PLATE

valve

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

12

538916R1

SPACER

1шт.

Part of kit 538918R1

1шт.

13

538915R1

DRIVE SHAFT

1шт.

Part of kit 538918R1

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

Part of Ref. 24 Housing

1шт.

15

3112269R1

PIN

cross

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

Part of Ref. 24 Housing

1шт.

17

3112264R1

RING

1шт.

18

3112268R1

WASHER

RACE bearing

1шт.

19

3112267R1

NEEDLE BEARING

1шт.

20

3112266R1

WASHER

axial

1шт.

21

NSS

NOT SOLD SEPARAT

RING pin

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING

1шт.

23

NSS

NOT SOLD SEPARAT

RING seal

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING, consists of Ref. 14 and 16

1шт.

25

NSS

NOT SOLD SEPARAT

BALL

1шт.

26

3112272R1

BUSHING

threaded

1шт.

27

3112265R1

SPRING

PLATE

4шт.

28

67699C91

PEDESTAL

SHAFT control

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

538928R92

KIT

seal and o-ring, not illustrated

1шт.
