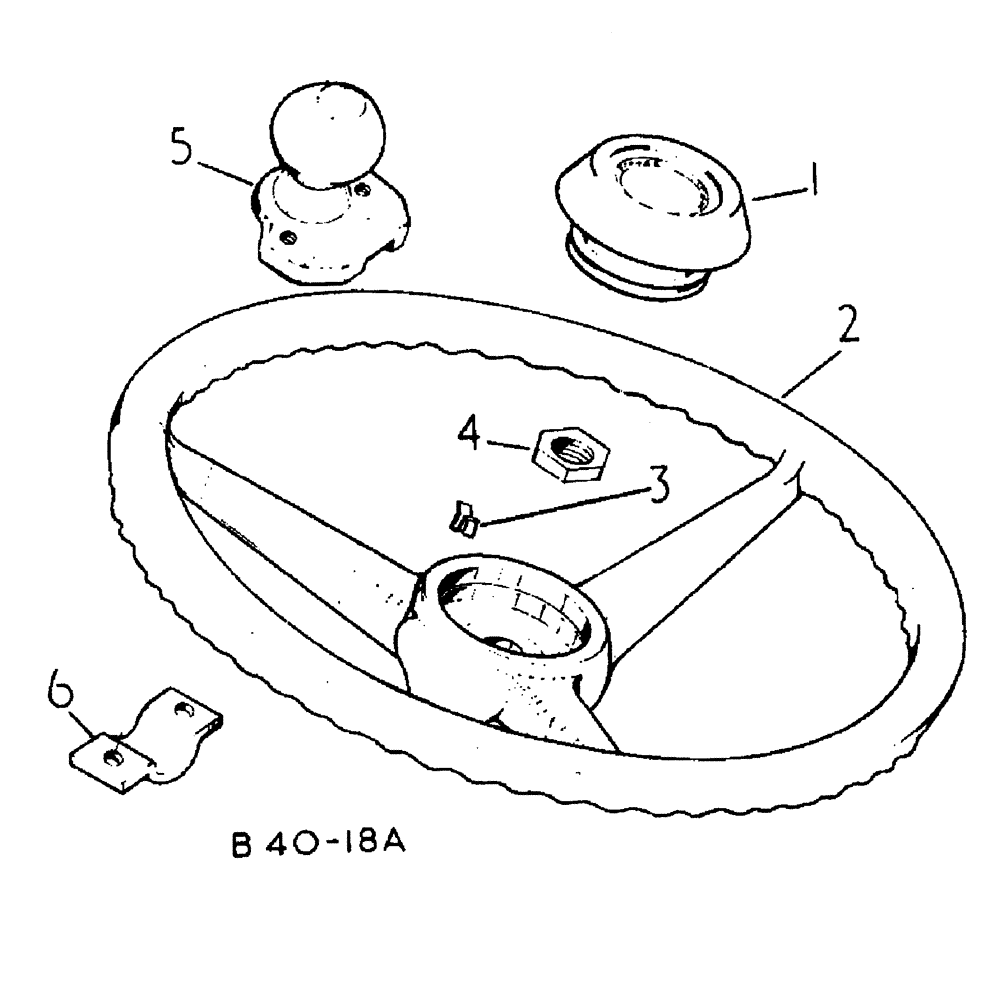

Запчасти Case 500 (10-022) - STEERING WHEEL No Description

1

68837C1

CAP

steering wheel

1шт.

2

3123597R91

HANDWHEEL

steering, 408 mm dia.

1шт.

3

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, upto 500PL/1282

1шт.

3

3123598R1

CLIP,ELECTRICAL

retaining 500PL/1283 up

3шт.

4

F19646

LOCK NUT,13/16"-20, Thin

steering wheel

1шт.

5

3114928R91

KNOB

steering wheel

1шт.

6

3114931R1

SPARE PART

BRACKET

1шт.

22523R1

BOLT (SPREADER),3/8" x 1", Gr 5

hex head, 3/8 x 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.
