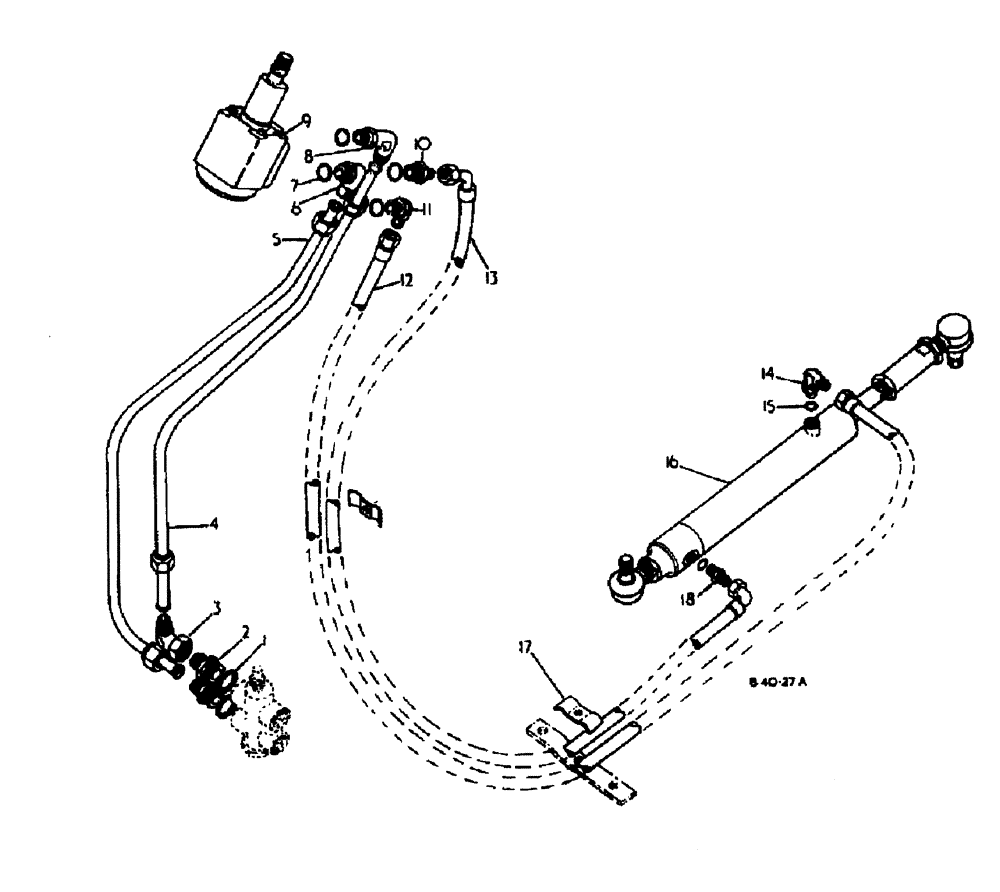

Запчасти Case 500 (10-020) - POWER STEERING No Description

1

708496R1

SEAL

WASHER, dowty

2шт.

2

894147H1

UNION

2шт.

3

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

swivel, 90 deg.

1шт.

4

3114572R1

PIPE

ASSY., orbitrol to, relief valve

1шт.

5

3114566R1

PIPE

ASSY., relief, Serial Range: valve,-orbitrol

1шт.

6

3114568R1

ELBOW

adjustable 90 deg.

1шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x 9087, class 6

4шт.

8

3114569R1

ELBOW

90 deg.

1шт.

9

537422R91

SPARE PART

VALVE ASSY., integral power steering for components, see list of parts under details

1шт.

10

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

ADAPTOR

1шт.

11

533358R1

ELBOW

adjustable, 90 deg.

1шт.

12

3117757R1

HOSE

CPTE. long, 500/568 up

1шт.

12

3114571R1

HOSE ASSY.

CPTE long, Serial Range: up-500/567

1шт.

On Orders For 3114571R1 furnish 31177571R1 W/Elbow 9410976-

1шт.

13

3114570R1

HOSE

CPTE. short

1шт.

14

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

500/568 up

1шт.

14

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

short swivel, up to 500/567

1шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

16

3114544R91

CYLINDER

power steering for components, see list of parts under details

1шт.

17

3049887R1

CLAMP

2шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

703952R2

SPACER

2шт.

18

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

short swivel note, on orders for 3114571R1, furnish 3117757R1 w/elbow 9410976

1шт.
