(10-018) - POWER STEERING HYDRAULIC PUMP

Запчасти Case 500 (10-018) - POWER STEERING HYDRAULIC PUMP No Description

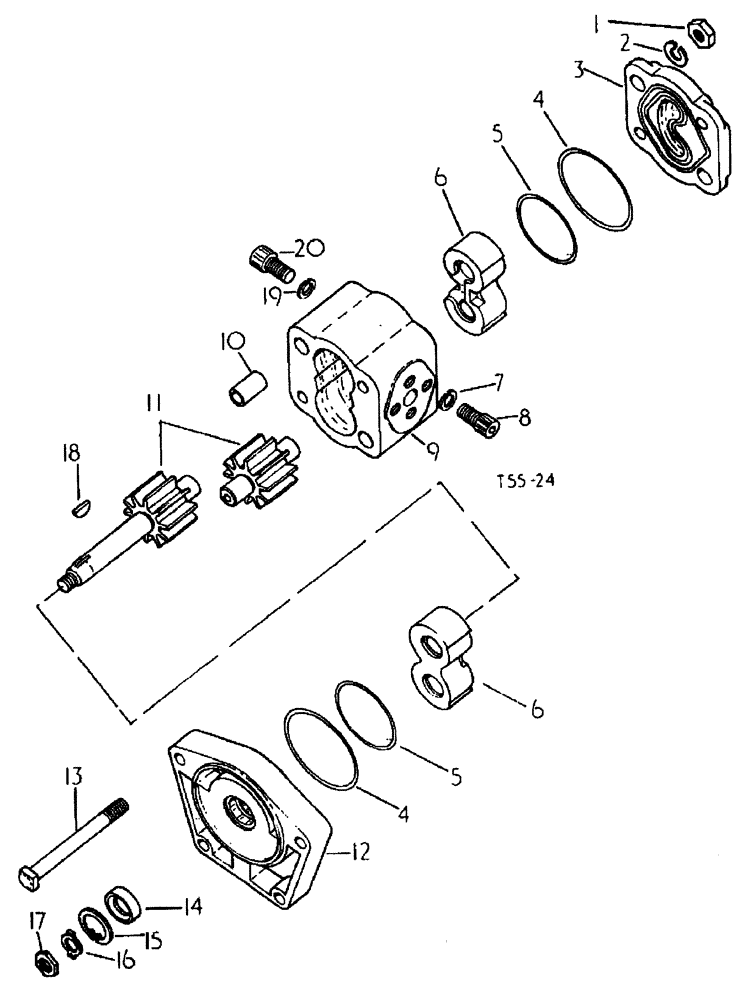

Схема запчастей Case 500 - (10-018) - POWER STEERING HYDRAULIC PUMP No Description
6
8
20
1
16
4
19
13
14
18
4
11
2
5
3
5
12
15
7
10
17
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

704330R95

PUMP

hydraulic CPTE., plessey C25VR

1шт.

1

214441

NUT

UNF 3/8, class 2B

4шт.

2

103321

LOCK WASHER,3/8"

4шт.

3

3044628R1

COVER

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING flange sealing

2шт.

Part of kit 3044645R91

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING pressure relief

2шт.

Part of kit 3044645R91

1шт.

6

3066762R91

BEARING

2шт.

7

706053R1

SPRING WASHER

spring

2шт.

8

3044642R1

SCREW

allen, 1/4 x 3/4

2шт.

9

NSS

NOT SOLD SEPARAT

BODY pump, not serviced

1шт.

NSS

NOT SOLD SEPARAT

O-RING manifold inlet

1шт.

Part of kit 3111634R91

1шт.

NSS

NOT SOLD SEPARAT

O-RING manifold outlety

1шт.

Part of kit 3111634R91

1шт.

10

3064277R1

PIN

dowel hollow

4шт.

11

3044627R91

GEAR

spares pack

1шт.

12

708395R1

FLANGE

1шт.

13

3044635R1

BOLT

4шт.

14

NSS

NOT SOLD SEPARAT

SEAL oil

1шт.

Part of kit 3044645R91

1шт.

15

706066R1

RETAINER

RING

1шт.

16

103321

LOCK WASHER,3/8"

1шт.

17

3044638R1

NUT

lock

1шт.

18

706067R1

KEY

woodruff

1шт.

19

706072R1

WASHER

spring

2шт.

20

706075R1

SCREW

allen, 5/16 x 3/4

2шт.

3044645R91

SEAL

seal comprises Ref. as required, including 1 envelope, 2 strip stuffers and 1 seal pack 3111634R91, not illustrated

1шт.

3111634R91

SEAL KIT

PACKAGE, comprises Ref. as required, not illustrated

1шт.
