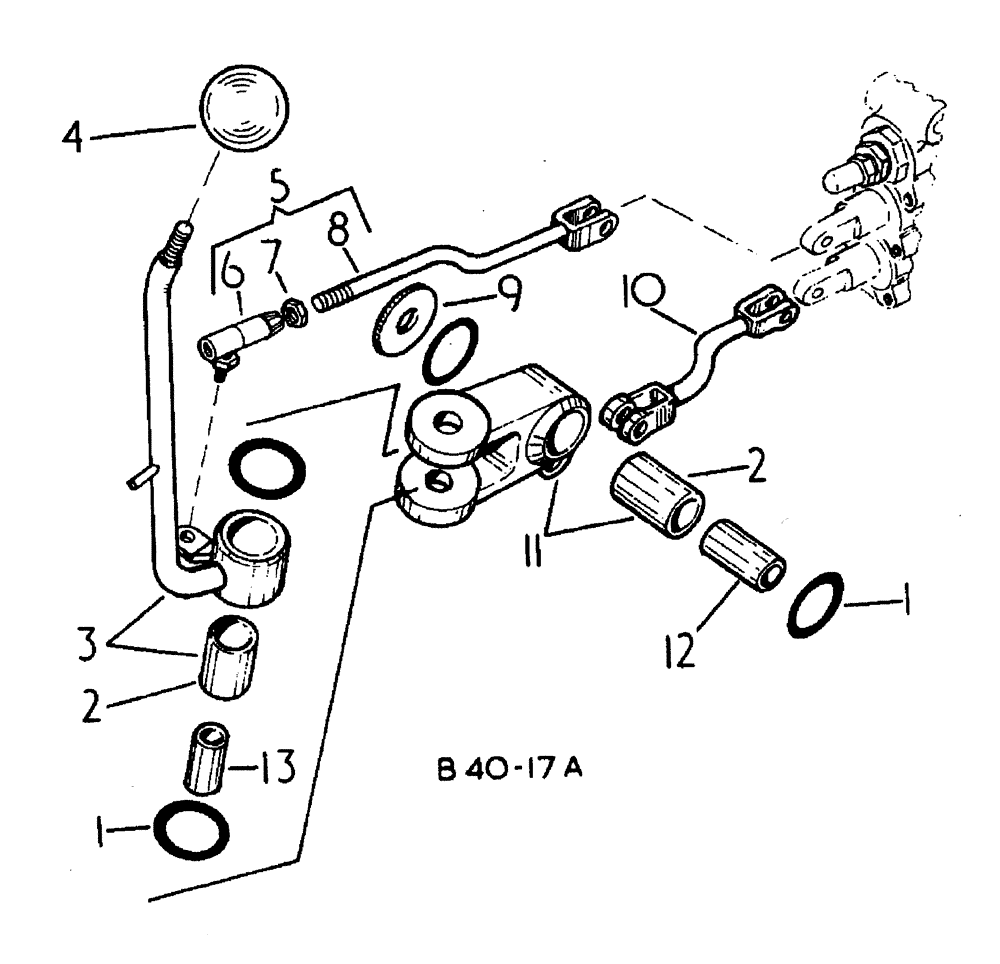

Запчасти Case 500 (10-014) - HYDRAULIC VALVE CONTROLS No Description

1

375269R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1-1/2 x 1-11/16, class 5

2шт.

2

3060121R1

BUSHING

2шт.

3

3117027R91

LEVER

boom and bucket, CPTE., w/ bush 3060121R1

1шт.

4

264055R2

KNOB

1шт.

5

3065226R91

ROD

bucket control, CPTE.

1шт.

6

109416

JOINT

5/16 UNF ball

1шт.

7

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

8

894645H1

ROD

bucket control

1шт.

425-115

NUT,5/16"-24, G5

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

5/16 rod end

1шт.

107762

WASHER,3/32" x 5/8"

1шт.

NSS

NOT SOLD SEPARAT

PRONG

1шт.

103320

LOCK WASHER,5/16"

1шт.

9

615135R1

WASHER

plain, 21/32 x 1-3/4 x 11 gallon

1шт.

10

3065228R91

ROD

SPARE PART boom control, CPTE.

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

5/16 rod end

2шт.

107762

WASHER,3/32" x 5/8"

1шт.

NSS

NOT SOLD SEPARAT

PRONG

1шт.

11

3065222R11

FORK

CPTE. valve control, w/bush 3060121R1

1шт.

12

3060125R1

BUSHING

TUBE pivot

1шт.

271589

SCREW,Hex, 5/8" - 18 x 2 1/2", Gr 5

hex head, 5/8 UNF x 2-1/2

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

1шт.

13

3060125R1

BUSHING

TUBE pivot, valve lever

1шт.

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

hex head, 5/8 UNF x 3

1шт.

709615R1

NUT

lock, 5/8 UNF

1шт.
