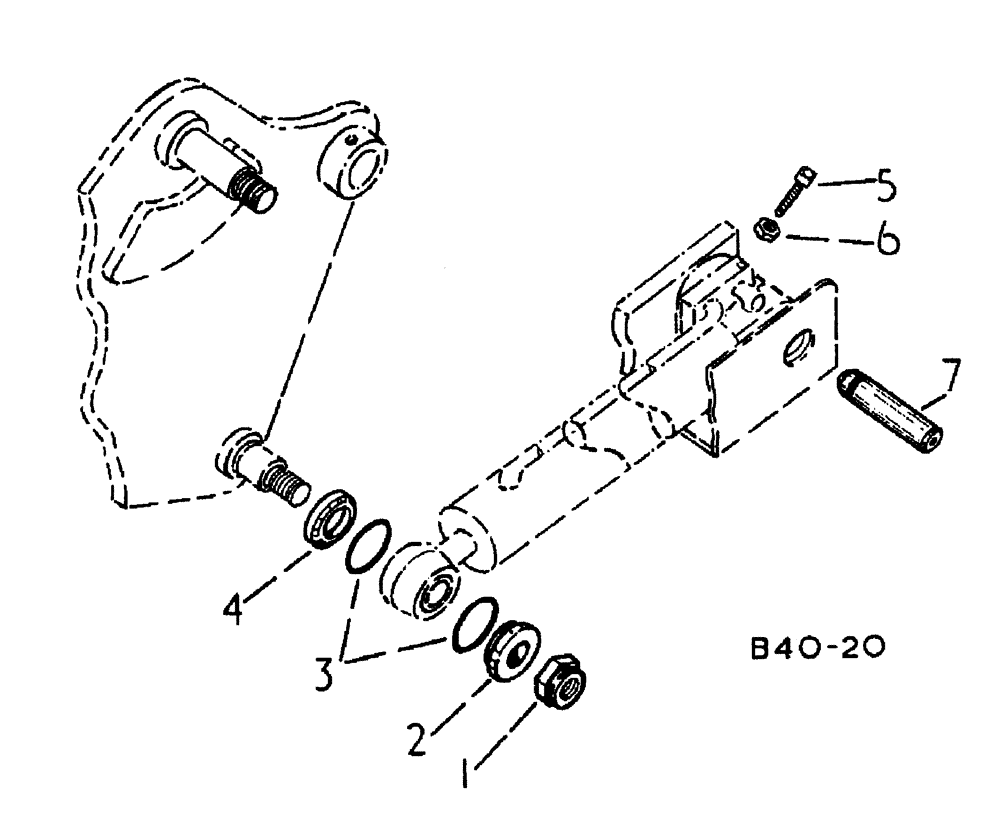

Запчасти Case 500 (10-010) - BOOM CYLINDER SPACERS AND No Description

1

3049970R1

NUT

nyloc

2шт.

2

3049969R1

SPACER

outside

2шт.

3

383260R1

O-RING,0.21" Thk x 2.475" ID, -333, Cl 5, 75 Duro

2.475 x .210

4шт.

4

3049968R1

SPACER

inside

2шт.

5

NLS

NO LONGER SERVICED

set, 1/2 x 1-1/2, square head DOG PT

2шт.

6

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

7

148575H1

PIN

boom cylinder, pivot

2шт.

104938

PLUG

cork no. 2, not illustrated

2шт.
