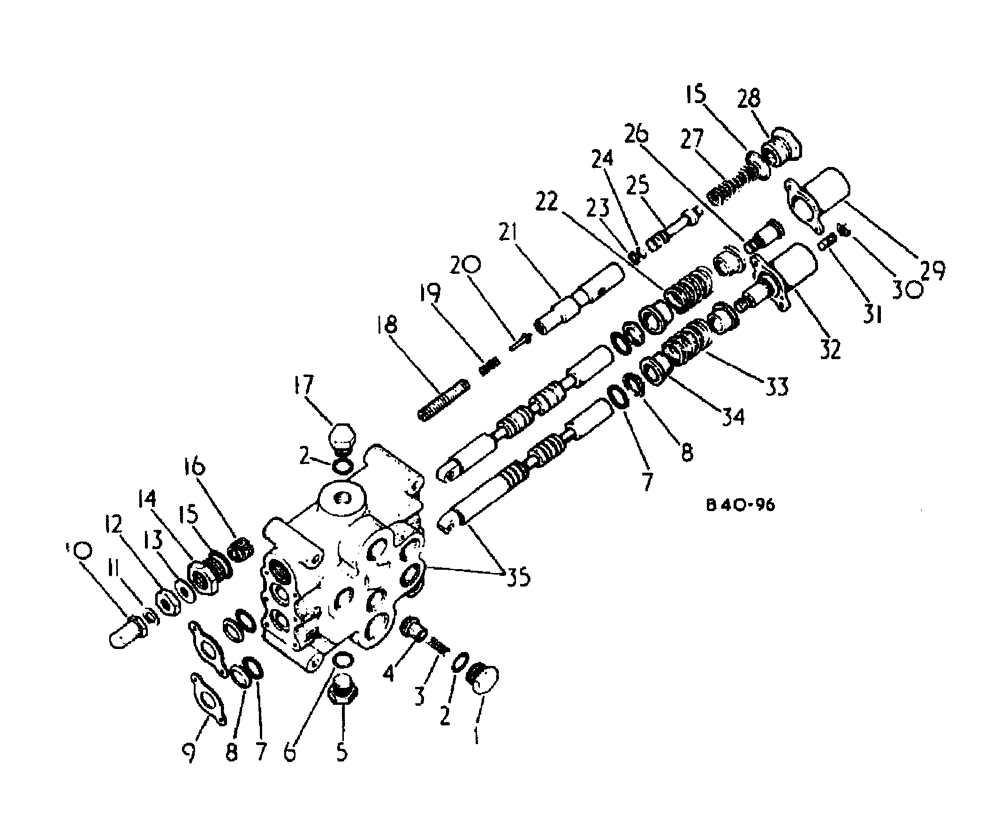

Запчасти Case 500 (10-006) - HYDRAULIC CONTROL VALVE No Description

3065221R93

VALVE

hydraulic control, CPTE.

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG check valve, not serviced

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3шт.

3

310820R1

VALVE SPRING

check

2шт.

4

NSS

NOT SOLD SEPARAT

VALVE check poppet, not serviced

2шт.

5

NSS

NOT SOLD SEPARAT

PLUG, not serviced

1шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

7

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

8

3066453R1

GASKET

SEAL wiper

2шт.

9

310798R1

PLATE

seal

2шт.

113954

SCREW

MACH RD head

2шт.

10

NSS

NOT SOLD SEPARAT

NUT castle, not serviced

1шт.

11

175684H1

WASHER

1шт.

12

NSS

NOT SOLD SEPARAT

NUT lock, not serviced

1шт.

13

175683H1

SPARE PART

1шт.

14

310815R1

PLUG

pilot, relief valve

1шт.

15

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

16

310814R1

SPARE PART PLUG adjust

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG, not serviced

1шт.

18

310816R1

CAPSCREW,7/16" x 2 1/2"

valve relief, adjust

1шт.

19

148586H1

SPARE PART RELIEF

1шт.

20

148588H1

SPARE PART VALVE pilot relief

1шт.

21

148585H1

SPARE PART relief valve

1шт.

22

3068928R2

SPRING

plunger

1шт.

23

152661H1

SPARE PART back-up

1шт.

24

355967R1

O-RING,0.364" ID x 0.003" Width

1шт.

25

148587H1

SPARE PART VALVE relief

1шт.

26

310824R1

BOLT

special

2шт.

27

148584H1

SPARE PART relief valve

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG relief valve, not serviced

1шт.

29

310825R1

CAP

plunger

1шт.

217904

BOLT head socket

2шт.

30

3117438R1

NUT

lock

1шт.

31

3117439R1

SCREW

adjusting

1шт.

32

3068920R1

CAP plunger

1шт.

217904

SCREW head socket

2шт.

33

310823R1

VALVE SPRING

plunger

1шт.

34

310822R1

LOCK VALVE

SEAT spring

4шт.

35

NSS

NOT SOLD SEPARAT

HOUSING valve CPTE., w/plungers, not serviced

1шт.

NSS

NOT SOLD SEPARAT

WIRE lock, not serviced, not illustrated

1шт.

3064474R1

SEAL

not illustrated

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Not Illustrated

3шт.

103321

LOCK WASHER,3/8"

Not Illustrated

3шт.

118575

SPARE PART WASHER plain, .406 x .065, valve attaching parts, not illustrated

3шт.
