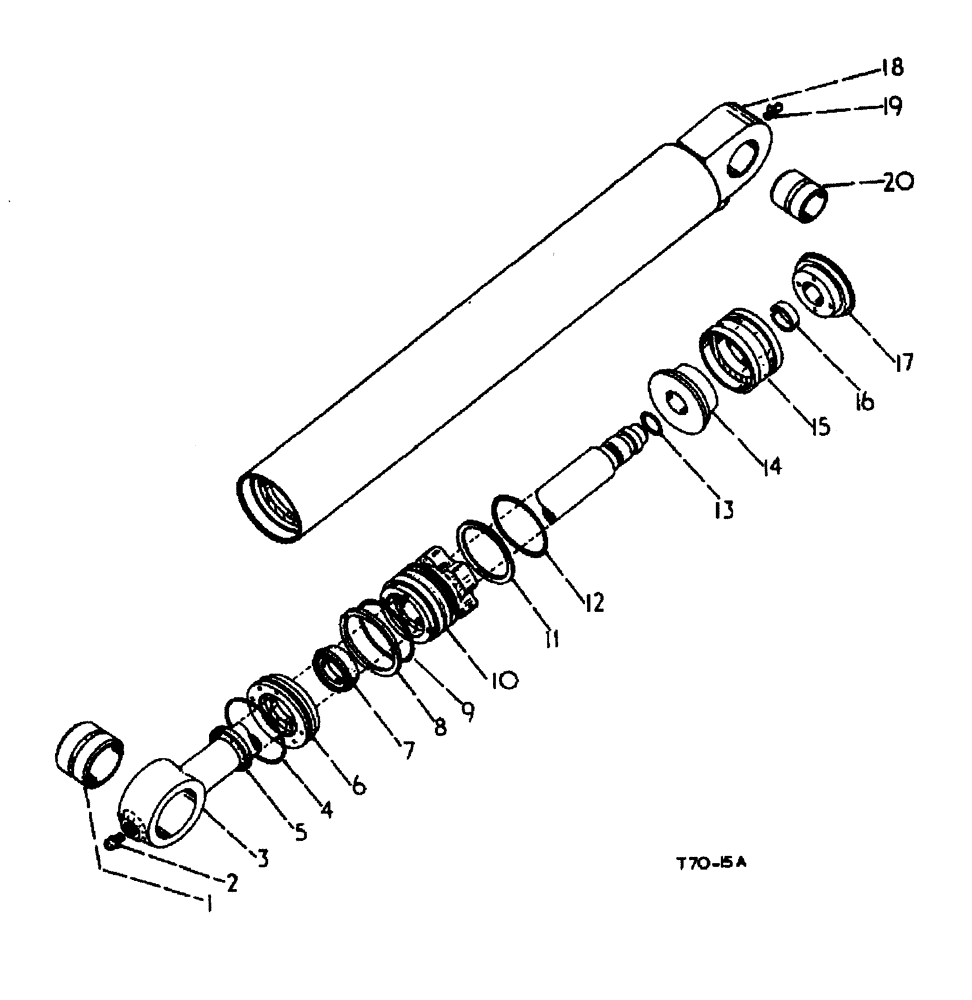

Запчасти Case 500 (10-002) - BREAKOUT CYLINDERS No Description

3063339R93

SPARE PART

CYLINDER breakout, 3.0 L.H.

1шт.

1

3063329R1

BUSHING

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

1шт.

3

3063348R2

ROD

piston

1шт.

4

3065556R1

RING

O- seal housing, 3/4 x 3-1/8 x 1/16

1шт.

5

3063328R1

SEALING RING

wiper

1шт.

6

3063325R1

HOUSING

seal

1шт.

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

piston rod bearing

4шт.

115547

LOCK WASHER,Int Tooth, 1/4"

4шт.

7

3072083R1

SEAL piston rod

1шт.

7

895717H1

SPARE PART

SEAL piston rod

1шт.

7

3063327R91

SPARE PART

SEAL piston rod, optional

1шт.

8

3063323R91

RING

SPARE PART split

1шт.

9

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

10

3063322R2

BEARING,1.502" ID x 2.825" OD x 2.63"

piston rod

1шт.

11

387370R1

BACK-UP RING

back-up

1шт.

12

3044436R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

2-5/8 x 3 x 3/16

1шт.

13

704378R1

O-RING,0.139" Thk x 0.85" ID

7/8 x 1-1/8 x 1/8

1шт.

14

3063317R1

PISTON

rear half

1шт.

15

895712H1

SEAL

piston, 3 x 2.25 x .937

1шт.

15

3063319R91

SEAL ASSY.

piston, 3 x 2.25 x .937

1шт.

15

3072078R91

SPARE PART

SEAL piston, 3 x 2.25 x .937, optional

1шт.

16

3063318R1

KEY

piston

1шт.

17

3063316R1

PISTON

front half

1шт.

3063320R91

BOLT piston

4шт.

703836R1

SPARE PART lock piston rod

1шт.

18

3063340R91

SPARE PART CYLINDER WELDED SUB ASSY. L.H., illustrated

1шт.

18

3063341R91

SPARE PART CYLINDER WELDED SUB ASSY. R.H.

1шт.

19

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

90 deg., 1/8 NPT

1шт.

20

3063315R1

BUSHING

SPARE PART

1шт.
