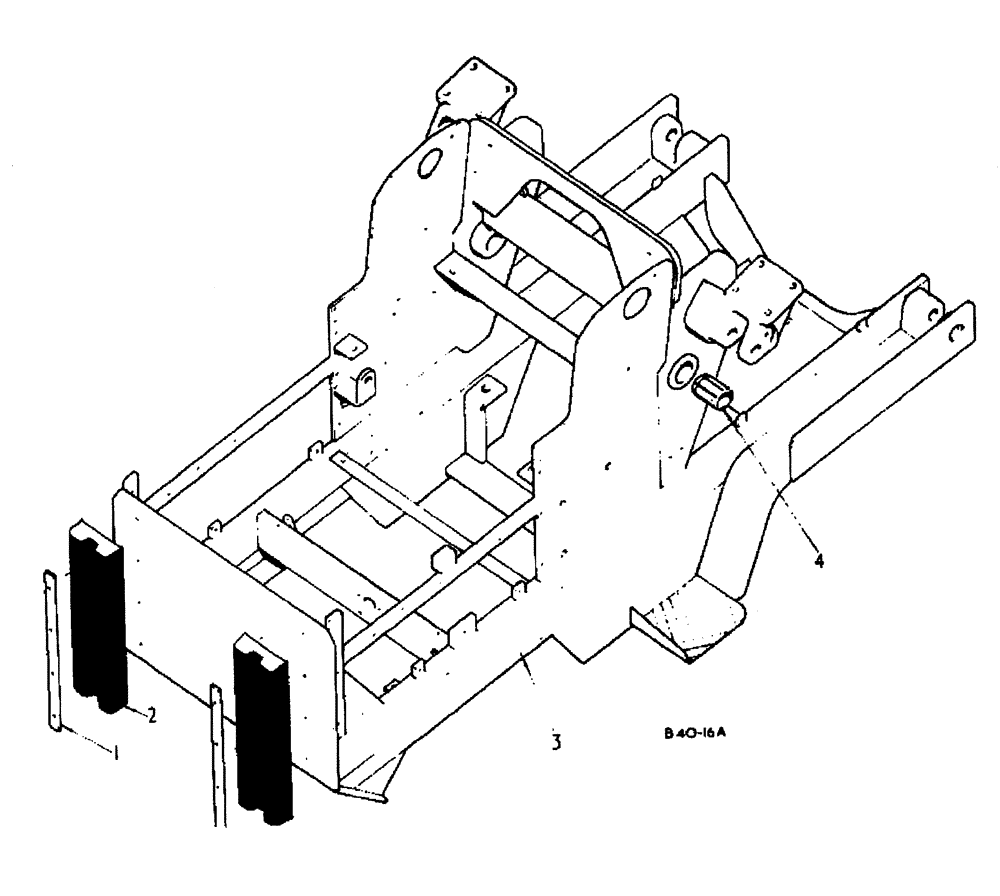

Запчасти Case 500 (09-002) - MAIN FRAME AND BUMPER No Description

1

3114502R1

RETAINER

bumper

2шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

8шт.

3063560R1

LOCK NUT

lock philidas, 3/8

8шт.

2

3114501R1

BUMPER

2шт.

3

3114356R93

FRAME, main CPTE., on order for 3114356R91, frame 3114356R93, w/bar 3119646R1, bar 3119647R1, and 2 off washers 575812R1, Serial Range: up-500/1282

1шт.

3

3120254R91

SPARE PART

FRAME, main CPTE., 500/1283 up

1шт.

3115605R1

SPARE PART

STUD grooved

4шт.

443106

BOLT

grooved, optional

4шт.

4

144160H2

BUSHING

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

Used on main frame

2шт.
