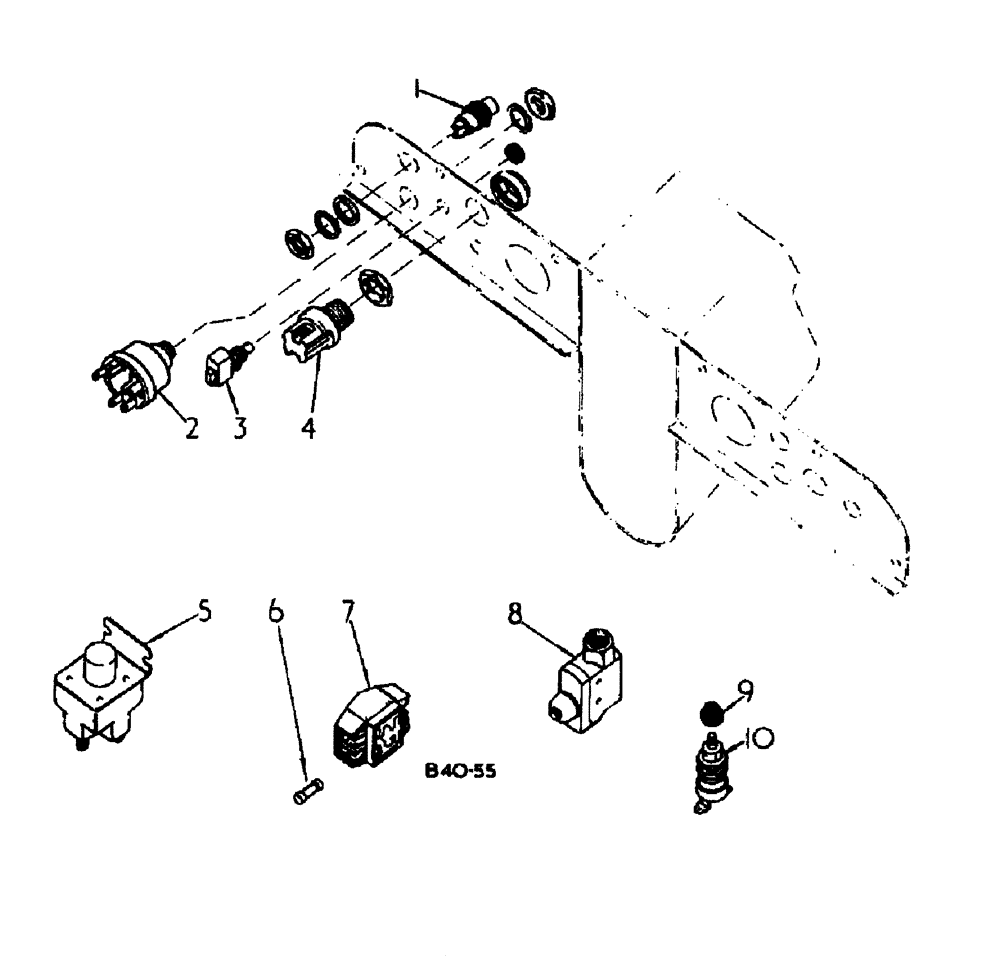

Запчасти Case 500 (08-024) - RELAYS, SWITCHES AND FUSES No Description

1

3114312R91

BUTTON

horn

1шт.

2

529800R91

SWITCH ASSY

key start, for petrol and L.P.G., tractors; Use With K962338 Key, Which Replaces 3110259R1 Key

1шт.

3111311R1

SPARE PART spring

1шт.

538389R1

TERMINAL CONNECTOR

1шт.

2

3109707R91

SWITCH

key start, for diesel tractors

1шт.

3

3074021R91

SWITCH

priming, 12 volt L.P.G., tractors

1шт.

4

3042230R91

RESISTOR

glow plug, indicator, diesel tractors

1шт.

5

3109131R91

SWITCH

starter motor, solenoid, petrol and L.P.G., tractors

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

head, no.10-24 x 1, pan

2шт.

120217

LOCK WASHER,#10

2шт.

395-31022

WASHER,#10

13/64 x 15/32 x .036

2шт.

3111318R1

NUT

2шт.

705829R1

SPRING WASHER

2шт.

6

707887R1

NO LONGER SERVICED

FUSE

2шт.

6

707887R1

NO LONGER SERVICED

FUSE spare

2шт.

7

3113098R1

HOLDER

BOX fuse

1шт.

147840

SCREW,Cross Rec Oval Hd, #10 - 24 x 3/4"

head no.10-24 x 3/4 oval CR REC M/C

1шт.

8

3068664R91

SWITCH

micro

1шт.

436502

BEARING ASSY

SCREW slotted head, pan MEC M/C, no. 6 x 3/8

1шт.

894905H1

SCREW slotted head cheese, no. 5 BA x 1-1/2

2шт.

894738H1

NUT

SCREW hex, MACH no. 5 BA

2шт.

3068935R1

RUBBER

GROMMET sealing, micro switch

1шт.

894948H1

WASHER sealing, fiber, Serial Range: up-500/1282

4шт.

9

534351R1

COVER

switch

1шт.

10

529461R92

IGNITION SWITCH

1шт.

3113429R1

PLUG

blanking petrol and L.P.G., not illustrated

1шт.

3112888R1

PLUG

blanking 2 for diesel, 2 for petrol 1 for L.P.G., not illustrated

1шт.

NSS

NOT SOLD SEPARAT

COIL ignition and bracket, see group 12 engine, not illustrated

1шт.
