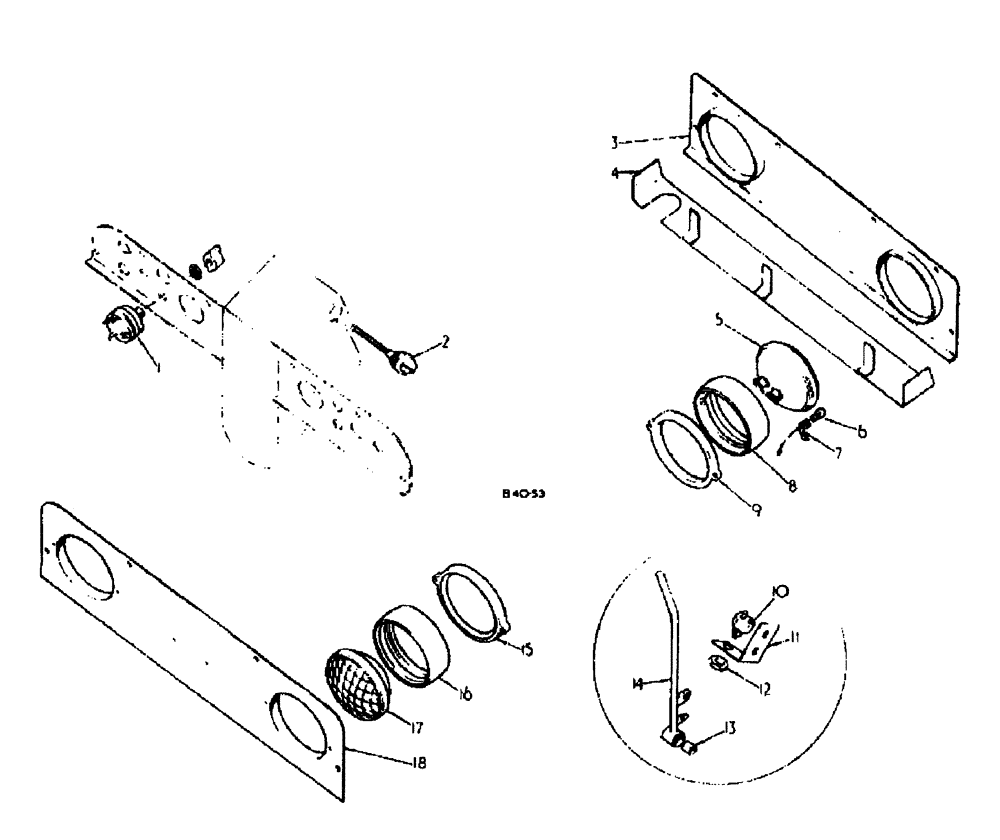

Запчасти Case 500 (08-022) - LIGHTING ATTACHMENT No Description

3114671R91

ATTACHMENT lighting

1шт.

1

528357R1

LIGHT SWITCH

16SA 4 position light

1шт.

2

3109335R91

LIGHT ASSY.

panel

2шт.

3114685R1

SCREW

4шт.

3114686R1

CLIP

screw

4шт.

705897R1

CONNECTOR, ELEC

CONNECTOR

4шт.

3

3114678R1

PANEL

CPTE. rear

1шт.

4

3114676R1

BAFFLE

radiator CPTE.

1шт.

5

371461R91

LENS

LIGHT rear

2шт.

6

3025214R91

LAMP

2шт.

7

470258R91

SOCKET/RECEPTACLE

ASSY. lamp

2шт.

3124565R1

SLEEVE

insulating

2шт.

8

529674R1

RETAINER

fender headlamp

2шт.

9

377305R1

RING

headlamp clamp

2шт.

3114675R1

SCREW

no. 10-24 x 1-1/2, large pan head, cross recess

4шт.

10

3072122R93

SWITCH

1шт.

11

3114683R1

BRACKET

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex head, 5/16 x 3/4

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

2шт.

22654R1

SPARE PART plain, 11/32 x 11/16 x .051

2шт.

12

3112570R1

NUT

16 mm x 2 mm THD

1шт.

13

3060121R1

BUSHING

1шт.

14

3114680R91

SPARE PART

LEVER CPTE., valve control

1шт.

15

377305R1

RING

headlamp clamp

2шт.

3114675R1

SCREW

no. 10-24 x 1-1/2 large pan head, cross recess

4шт.

16

529674R1

RETAINER

fender headlamp

2шт.

17

535850R1

LAMP

front

2шт.

18

3114672R1

PANEL

CPTE. front

1шт.

3114684R1

SPARE PART

HARNESS lighting, not illustrated

1шт.

708114R1

SPARE PART cable, not illustrated

1шт.

708115R1

PLATE ASSY.

CLIP cable, not illustrated

3шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Not Illustrated

4шт.
