(08-020) - STARTER MOTOR, PETROL

Запчасти Case 500 (08-020) - STARTER MOTOR, PETROL No Description

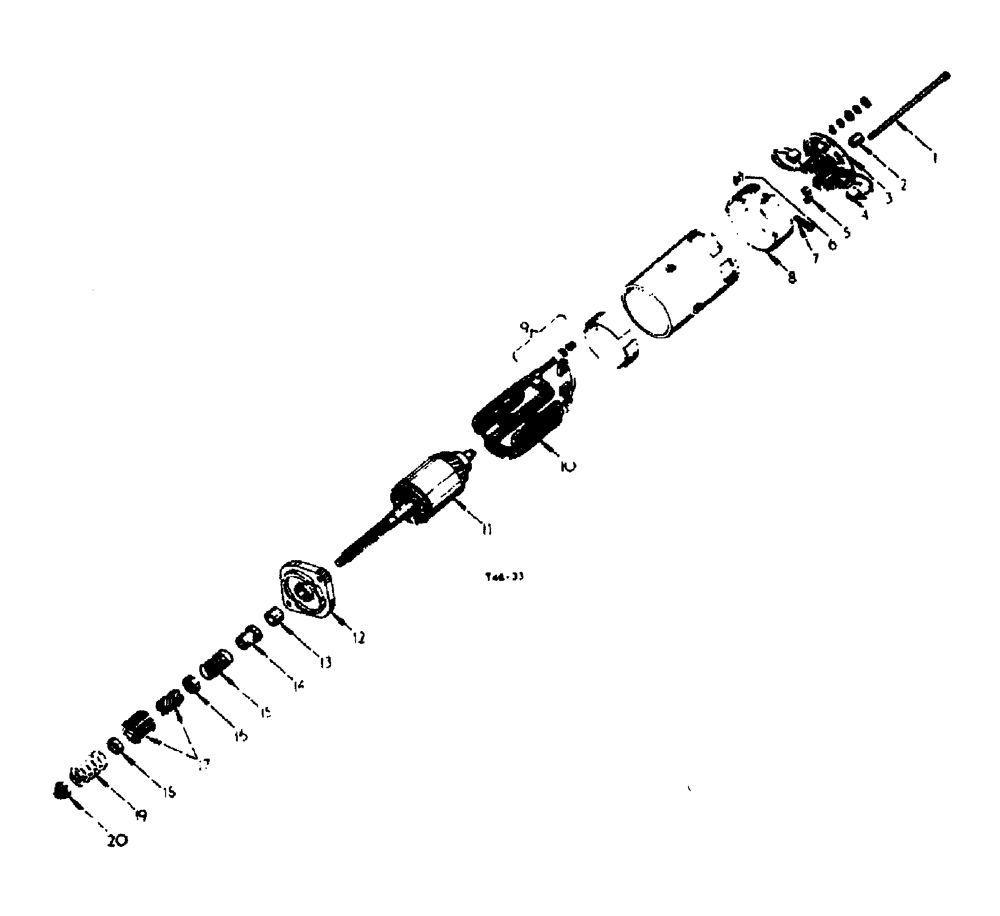

Схема запчастей Case 500 - (08-020) - STARTER MOTOR, PETROL No Description
19
20
12
1
15
9
4
16
3
15
8
6
7
11
10
13
2
16
13
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3045322R91

STARTER MOTOR

12V, lucas 25612

1шт.

1

3047182R1

BOLT

through fixing

2шт.

2

702006R1

BUSHING

1шт.

3

3047108R1

BRACKET

commutator end

1шт.

4

700452R91

BRUSH, COMMUTATOR

BRUSH set

1шт.

5

3106687R91

SPARE PART SPRING SET brush tension

1шт.

6

705832R1

NUT

cover fixing

1шт.

7

3106686R1

SCREW

cover fixing

1шт.

8

3047106R1

SPARE PART cover

1шт.

9

3047181R1

TERMINAL CONNECTOR

field

1шт.

10

3047116R1

COIL FIELD SET

1шт.

11

3114160R91

SPARE PART

1шт.

3047107R1

SPARE PART shaft

1шт.

12

3047113R1

BRACKET

driving end

1шт.

13

3047114R1

BUSHING

SPARE PART bearing

1шт.

14

3114158R1

SPARE PART spring guide

1шт.

15

700457R1

SPRING

pinion retaining

1шт.

16

3114159R1

CUP

spring retaining

1шт.

17

700456R91

GEAR

sleeve

1шт.

18

3047112R1

WASHER

buffer

1шт.

19

700455R1

SPRING

main

1шт.

20

3110450R1

SPARE PART shaft

1шт.

3114161R1

SPARE PART jump

1шт.

702010R91

SPARE PART KIT sundry part, not illustrated

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

Not Illustrated

2шт.

103321

LOCK WASHER,3/8"

Starter motor fixing, Not illustrated

2шт.
