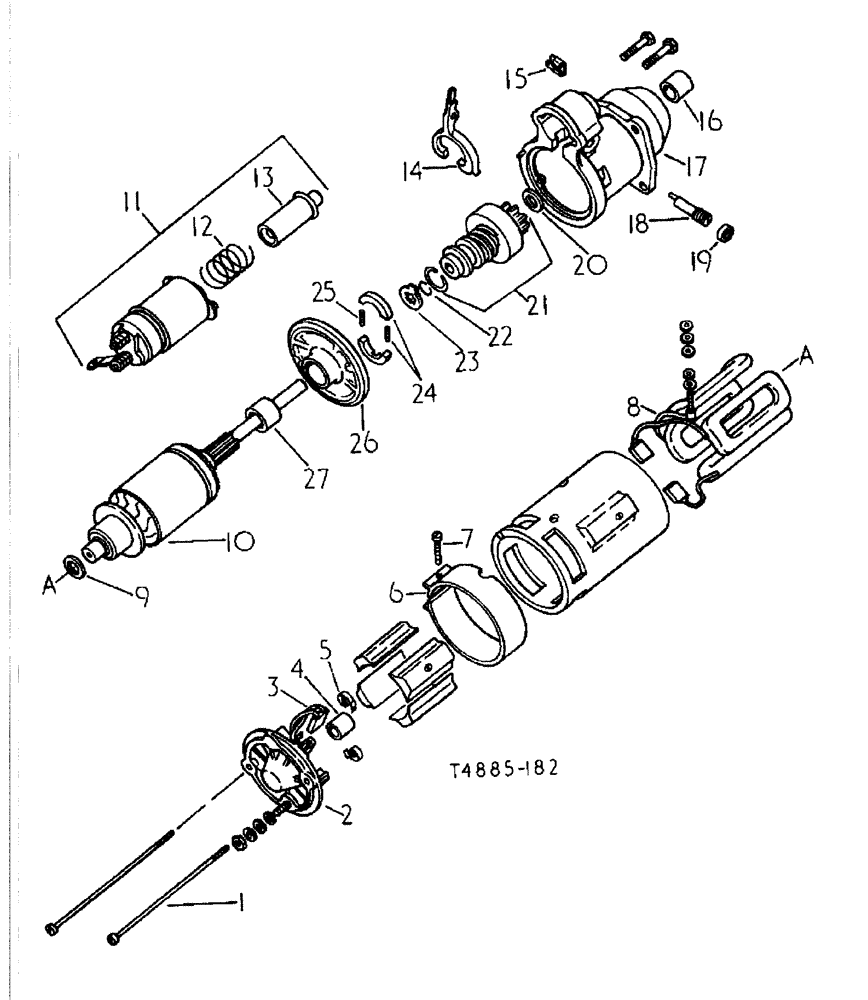

Запчасти Case 500 (08-018) - STARTER MOTOR -DIESEL- No Description

3046890R92

STARTER MOTOR

lucas 26288

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

3шт.

1

NSS

NOT SOLD SEPARAT

BOLT, through order KIT 3114768R91

2шт.

2

3111024R91

BRACKET

FRAME w/ bush 3111025R1

1шт.

NSS

NOT SOLD SEPARAT

COMMUTATOR END

1шт.

3

705833R91

BRUSH, COMMUTATOR

BRUSH set

1шт.

4

3113029R1

KIT bushes

1шт.

5

3043618R91

VALVE SPRING

KIT brush tension spring

1шт.

6

3062342R91

SPARE PART cover w/nut 705832R1, and screw

1шт.

NSS

NOT SOLD SEPARAT

3106686R1

1шт.

7

3106686R1

SCREW

cover, band fixing

1шт.

705832R1

NUT

cover, band fixing, screw

1шт.

8

3062381R91

COIL

FIELD set

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER commutator thrust, order KIT 3114823R91

1шт.

10

NSS

NOT SOLD SEPARAT

ARMATURE, order KIT 3114823R91 or armature 3111039R91

1шт.

11

3111040R91

SOLENOID SWITCH

RELAY starter

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING plunger, order KIT 3117008R91

1шт.

13

3117008R91

NUT

KIT solenoid, end cap, nut

11шт.

NSS

NOT SOLD SEPARAT

NUT solenoid fixing, order KIT 3114821R91

1шт.

14

NSS

NOT SOLD SEPARAT

LEVER, order KIT 3114821R91

1шт.

15

NSS

NOT SOLD SEPARAT

NOT USED

1шт.

16

NSS

NOT SOLD SEPARAT

BUSHING bearing, order KIT 3113029R91

1шт.

17

3111030R91

BRACKET

FRAME, w/bush 3111031R1

1шт.

18

NSS

NOT SOLD SEPARAT

PIN pivot, order KIT 3114821R91

1шт.

19

NSS

NOT SOLD SEPARAT

NUT pivot bolt, order KIT 3114821R91

1шт.

20

NSS

NOT SOLD SEPARAT

COLLAR thrust, order KIT 3114822R91

1шт.

21

NSS

NOT SOLD SEPARAT

DRIVE roller, order KIT 3114822R91 or drive 3111029R91

1шт.

22

NSS

NOT SOLD SEPARAT

RING retaining, order KIT 3114822R91

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER thrust comutator end, and order KIT 3114823R91

1шт.

24

NSS

NOT SOLD SEPARAT

SHOE CPTE. brake, w/two spring 3062376R1, order KIT 3113030R91

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING brake shoe, order KIT 3113030R91

2шт.

26

3111034R91

BRACKET

or FRAME brake, w/bush 3111035R1

1шт.

27

NSS

NOT SOLD SEPARAT

BUSHING brake bracket, order KIT 3113029R91

1шт.

705860R91

PACKAGE

sundry parts, as required, not illustrated

1шт.

313030R91

SPARE PART KIT brakes, not illustrated

1шт.

3114821R91

PACKAGE

solenoid, not illustrated

1шт.

3114822R91

KIT

DRIVE ASSY. year 1971 up, not illustrated

1шт.

3114823R91

ARMATURE

KIT, year 1971 up, not illustrated

1шт.

3113029R91

BUSHING

KIT bushes, not illustrated

1шт.

3114768R91

BOLT

KIT washers, not illustrated

1шт.

3111029R91

DRIVE

roller clutch, up to year 1971, not illustrated

1шт.

3111039R91

ARMATURE

up to year 1971, not illustrated

1шт.
