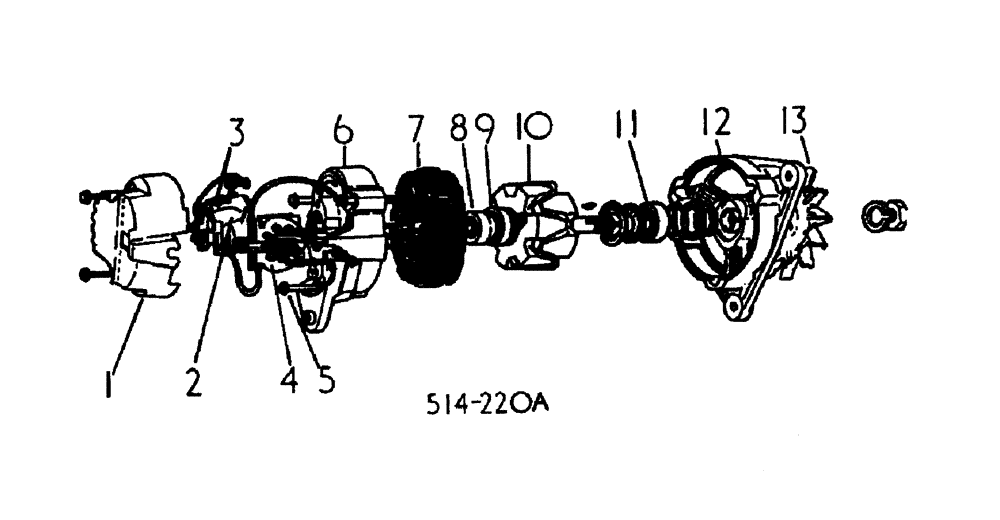

Запчасти Case 500 (08-016) - ALTERNATOR No Description

NSS

NOT SOLD SEPARAT

ALTERNATOR, lucas 15 ACR

1шт.

3125132R92

ALTERNATOR

lucas 17 ACR

1шт.

1

3116086R1

COVER

1шт.

2

3116094R91

BRUSH HOLDER

HOLDER, BRUSH BOX ASSY. w/brush kit 3116099R91

1шт.

3116099R91

BRUSH SET

kit

1шт.

3

3116087R2

REGULATOR

1шт.

4

3116088R1

RECTIFIER

1шт.

5

3116095R1

BOLT

fixing

3шт.

6

3116092R1

BRACKET

S.R.E.

1шт.

7

3116093R1

STATOR

15 ACR alternator

1шт.

7

3125134R1

STATOR

SPARE PART 17 ACR alternator

1шт.

8

3116097R1

RING

slip

1шт.

9

3116098R1

KIT

BEARING, S.R.E.

1шт.

10

3125130R91

ROTOR ASSY.

15 ACR alternator

1шт.

10

3125133R91

ROTOR ASSY.

17 ACR alternator w/ring 3116097R1, and bearing 3116098R91

1шт.

11

3116096R91

BEARING ASSY

KIT D.E.

1шт.

12

3116089R91

BRACKET

ASSY. drive end

1шт.

13

3117067R1

FAN

alternator

1шт.

3116090R91

KIT

SPARE PART sundry parts, not illustrated

1шт.

3123891R1

RECTIFIER

15 ACR alternator, not illustrated

1шт.

3118367

RECTIFIER, not illustrated

1шт.

3125297R1

CAPACITOR

17 ACR alternator, not illustrated

3шт.
