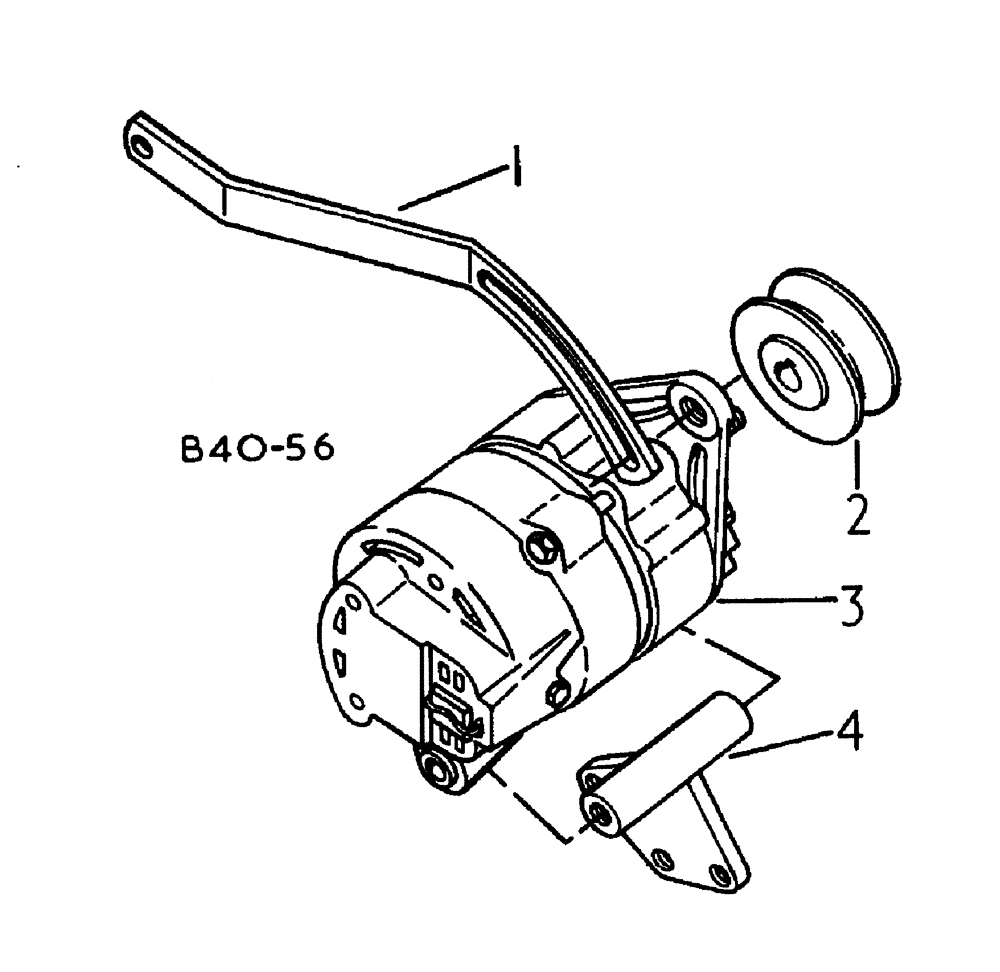

Запчасти Case 500 (08-014) - ALTERNATOR AND CONNECTIONS No Description

1

3114320R1

CLIP

brace

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 PLN MACH

1шт.

103320

LOCK WASHER,5/16"

1шт.

95-11034

WASHER,1/4"

flat, 11/32 x 11/16 x 16 gallon

1шт.

2

3114316R1

PULLEY

1шт.

3

NSS

NOT SOLD SEPARAT

ALTERNATOR, lucas 15 ACR

1шт.

3

3125132R92

ALTERNATOR

lucas, 17 ACR, for components, see list of parts under alternator

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

1шт.

95-11034

WASHER,1/4"

plain, flat

2шт.

4

3114317R1

BRACKET alternator, CPTE.

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex head, 5/16 x 1/4

1шт.

103320

LOCK WASHER,5/16"

1шт.
