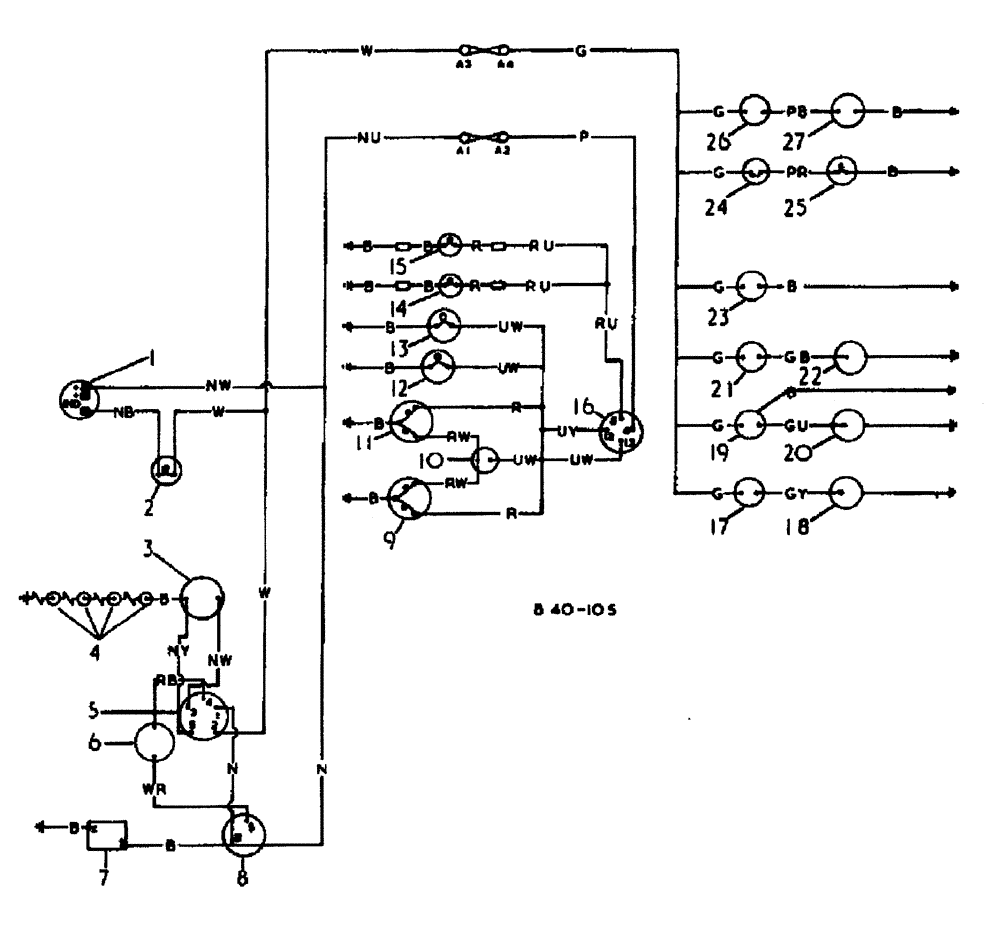

Запчасти Case 500 (08-006) - STARTING AND LIGHTING DIESEL No Description

3120109R1

SPARE PART

HARNESS ASSY., main code cable colour black - b, blue - u, brown - n, green - g, pink - k, purple - p, red - r, slate - s, white - w, yellow - y, dark - d, light - l, medium - m, and orange - o

1шт.

1

NSS

NOT SOLD SEPARAT

ALTERNATOR, see alternator, and connections

1шт.

2

NSS

NOT SOLD SEPARAT

LIGHT alternator warning, see gauges, and warning lights

1шт.

3

NSS

NOT SOLD SEPARAT

INDICATOR RESISTOR, see engine

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG glow, see engine

4шт.

5

NSS

NOT SOLD SEPARAT

SWITCH key, see relays, switches, and fuses

1шт.

6

NSS

NOT SOLD SEPARAT

SWITCH SAFETY STARTER, see safety cut out switches

1шт.

7

NSS

NOT SOLD SEPARAT

BATTERY

1шт.

8

NSS

NOT SOLD SEPARAT

STARTER MOTOR, see starter motor

1шт.

9

NSS

NOT SOLD SEPARAT

LIGHT rear, L.H., see lighting attachments

1шт.

10

NSS

NOT SOLD SEPARAT

SWITCH rear, work light, see lighting attachments

1шт.

11

NSS

NOT SOLD SEPARAT

LIGHT rear, R.H., see lighting attachments

1шт.

12

NSS

NOT SOLD SEPARAT

LIGHT FRONT WORK, see lighting attachments

1шт.

13

NSS

NOT SOLD SEPARAT

LIGHT front work, see lighting attachments

1шт.

14

NSS

NOT SOLD SEPARAT

LIGHT panel, see lighting attachments

1шт.

15

NSS

NOT SOLD SEPARAT

LIGHT panel, see lighting attachments

1шт.

16

NSS

NOT SOLD SEPARAT

SWITCH light, see relays, switches, and fuses

1шт.

17

NSS

NOT SOLD SEPARAT

LIGHT OIL WARNING, see gauges and warning lights

1шт.

18

NSS

NOT SOLD SEPARAT

TRANSMITTER oil, warning light, see trans. oil temp. gauge

1шт.

19

NSS

NOT SOLD SEPARAT

INDICATOR heat, see gauges, and warning lights

1шт.

20

NSS

NOT SOLD SEPARAT

TRANSMITTER heat indicator, see gauges and warning lights

1шт.

21

NSS

NOT SOLD SEPARAT

LIGHT FUEL WARNING, see gauges and warning lights

1шт.

22

NSS

NOT SOLD SEPARAT

TRANSMITTER fuel, warning lights, see gauges, and warning lights

1шт.

23

NSS

NOT SOLD SEPARAT

METER hour, see gauges and warning lights

1шт.

24

NSS

NOT SOLD SEPARAT

SWITCH hand brake, see relays, switches, and fuses

1шт.

25

NSS

NOT SOLD SEPARAT

LIGHT hand brake, warning, see gauges, and warning lights

1шт.

26

NSS

NOT SOLD SEPARAT

HORN, see horn

1шт.

27

NSS

NOT SOLD SEPARAT

BUTTON horn, see relays, switches, and fuses

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR SSI, not illustrated

1шт.

3061346R91

SPARE PART starter to crankcase earth, not illustrated

1шт.

3114411R1

CABLE

battery to earth, not illustarted

1шт.

3114412R2

CABLE

battery to starter, not illustrated

1шт.

3114416R1

CABLE

ASSY. key switch to IND RES, not illustrated

1шт.

108712R1

CLIP cable

1шт.

708113R1

CLIP

cable

1шт.

708115R1

PLATE ASSY.

cable

6шт.

708117R1

NO LONGER SERVICED

CABLE STRAP/Retired CLIP cable

2шт.

708114R1

SPARE PART cable

1шт.

537024R1

CLIP

cable

2шт.

3070900R1

CLIP cable

1шт.

708115R1

PLATE ASSY.

CLIP cable

1шт.

3068378R1

CLIP cable

2шт.

289862R1

STRAP

1шт.

103319

LOCK WASHER,1/4"

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

Main harness earth connector

1шт.
