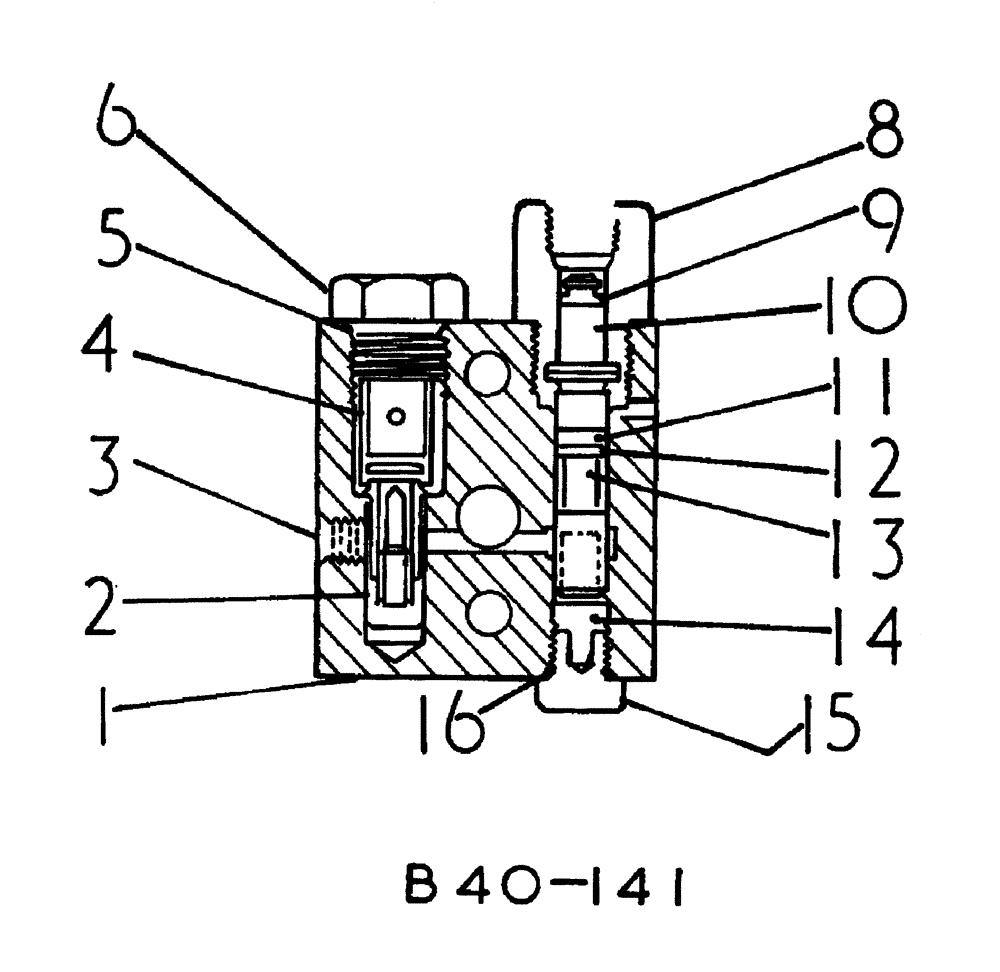

Запчасти Case 500 (07-050) - REGULATOR FLOW/DISCONNECT No Description

928725C92

REGULATOR ASSY., flow and disconnect

1шт.

1

1121313C92

VALVE

ASSY.

1шт.

2

929676C91

REGULATOR

ASSY., flow

1шт.

929678C1

SPRING

1шт.

929679C1

PLUG

1шт.

3

24524R1

PLUG

1шт.

4

929675C1

SPRING

1шт.

16

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

929673C91

FILTER ASSY. inlet

1шт.

1121311C1

SPARE PART ASSY.

1шт.

1121446C1

SPARE PART cartridge

1шт.

7

NSS

NOT SOLD SEPARAT

not used

1шт.

8

929685C1

BODY disconnect

1шт.

9

929686C1

SEAL

1шт.

10

929687C1

PISTON disconnect

1шт.

11

1106854C1

RING

back up

1шт.

12

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL disconnect, not serviced

1шт.

14

929691C1

SPRING

1шт.

15

929692C1

PLUG

1шт.
