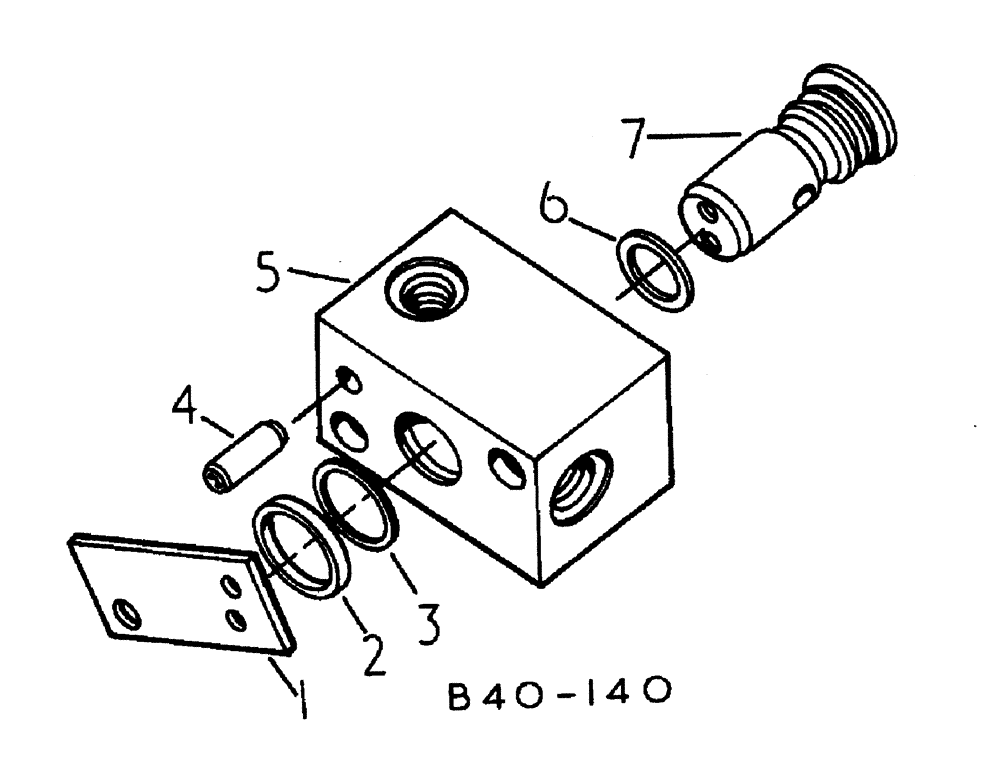

Запчасти Case 500 (07-048) - ROTARY VALVE ASSEMBLY No Description

1

NSS

NOT SOLD SEPARAT

LEVER actuating, not serviced

1шт.

191209

SCREW,#10 - 24 x 3/8"

10-24 x 3/8

2шт.

2

NSS

NOT SOLD SEPARAT

SPACER, not serviced

1шт.

3

576065C1

SPARE PART O-RING

1шт.

4

18556R1

LOCK PIN,1/4" x 3/4", Slotted

dowel

1шт.

5

NSS

NOT SOLD SEPARAT

BODY, not serviced

1шт.

9409954

PLUG,Hex Soc, 1/16"-27

PIPE, 1/16-27 socket

1шт.

6

615007R1

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE rotary, not serviced

1шт.
