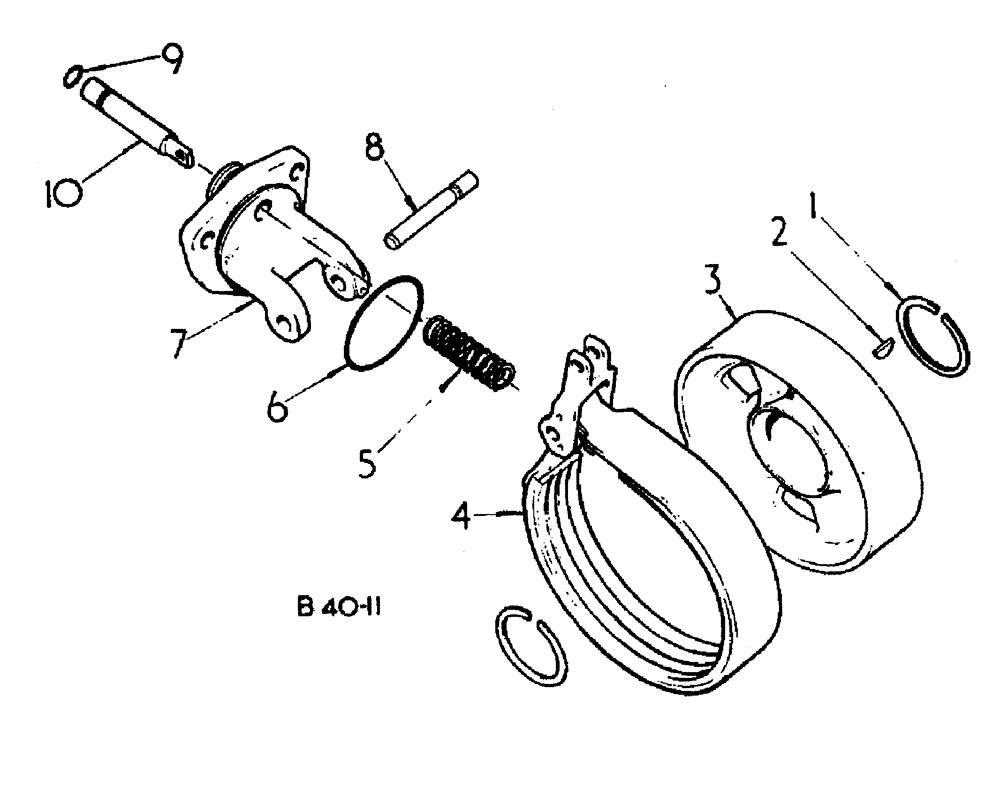

Запчасти Case 500 (07-036) - PARKING BRAKE HUB AND BAND No Description

1

327058R1

RING, SNAP

RING SNAP brake, drum retainer

2шт.

2

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

3

399828R1

HUB

brake, drum

1шт.

4

401992R3

BAND

ASSY. brake and actuating, toggle

1шт.

702269R1

HEADED PIN,5/16" x 15/16"

rod end, 5/16 x 1-5/16

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

5

402000R1

SPRING

parking brake, return

1шт.

6

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32

1шт.

7

401997R1

PIVOT

parking brake

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

8

401998R1

PIVOT PIN

parking brake, pivot

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

1шт.

9

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

1шт.

10

3114309R1

SHAFT

PLUNGER parking brake, pivot

1шт.
