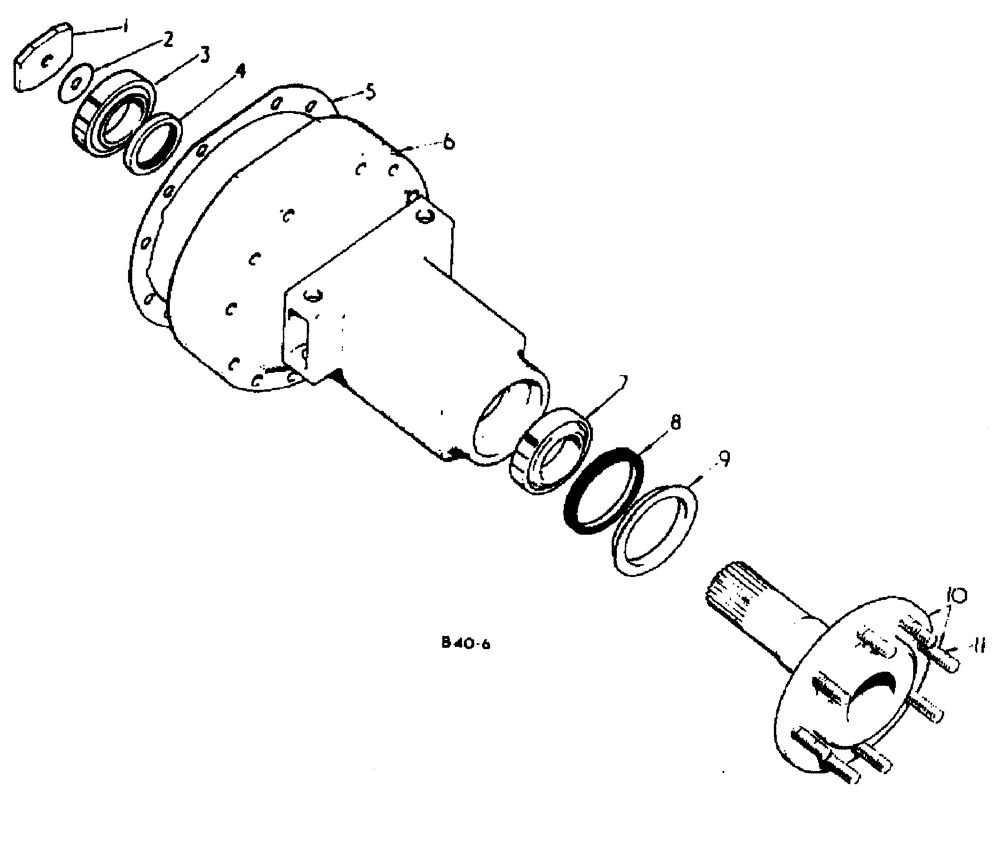

Запчасти Case 500 (07-034) - AXEL, SHAFT AND CARRIER, DRIVE AXLE No Description

1

399748R1

SPACER

planet, carrier/retainer

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

hex head, 5/8-18 x 1-1/2

2шт.

2

NSS

NOT SOLD SEPARAT

SHIM axle, retainer, order package 65422C1

1шт.

3

298188R91

BEARING ASSY

ASSY. axle, inner

2шт.

3

298189R91

BEARING ASSY,2.5" ID x 4.3307" OD x 0.866"

ASSY. axle, inner optional

2шт.

4

380200R91

SEAL

oil, axle, inner

2шт.

4

530094R91

SEAL

oil, axle, inner optional

2шт.

5

399762R1

GASKET

axle, carrier

2шт.

6

3114307R1

SPARE PART axle, L.H., illustrated

1шт.

6

3114308R2

SPARE PART axle, R.H.

1шт.

271570R2

BOLT hex head, 5/8-11 x 4

27шт.

198750

PIN, 5/8 x 1-1/2

4шт.

26068R1

WASHER

hardened, .812 x 1.50 x .179

4шт.

7

ST2000A

TAPERED BEARING

ASSY. axle, outer

2шт.

7

102160H

BEARING ASSY

ASSY. axle, outer

2шт.

7

399756R91

BEARING ASSY,2.6876" ID x 4.3307" OD x 0.8661, 0.7411"

ASSY. axle, outer optional

2шт.

8

399752R91

NO LONGER SERVICED

SEAL oil, axle, outer

2шт.

8

530106R2

SEAL oil, axle, outer optional

2шт.

9

399754R1

SLEEVE

SLEEVE wear

2шт.

10

3114305R91

SHAFT

axle, w/eight bolts 404341R3

2шт.

11

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

wheel

16шт.

65422C1

SHIM KIT

service, axle retainer, not illustrated

1шт.
