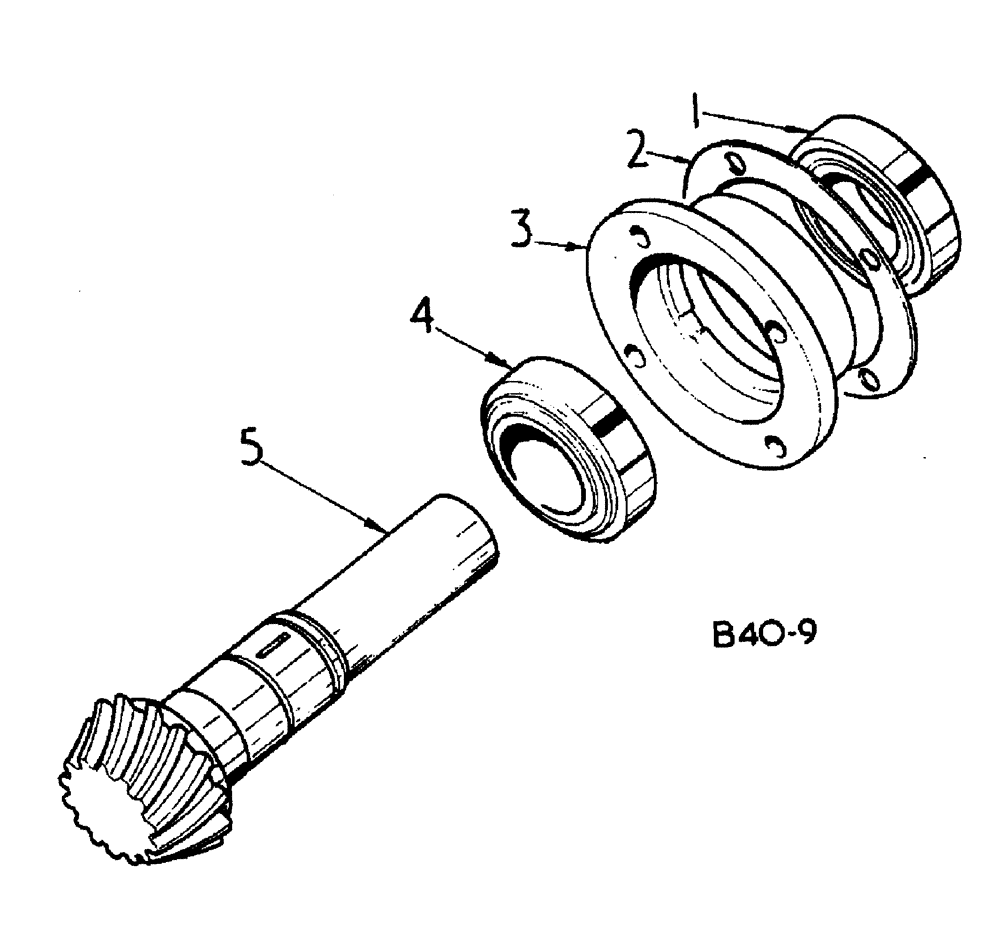

Запчасти Case 500 (07-032) - DIFFERENTIAL BEVEL PINION, DRIVE AXLE No Description

1

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSY. bevel pinion, front

1шт.

1

399822R91

ROLLER BEARING

ASSY. bevel pinion, front, optional

1шт.

2

NSS

NOT SOLD SEPARAT

SHIM main shaft, bearing cage, order package 65423C1

1шт.

3

399825R1

BEARING CUP

CAGE bearing, main shaft

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

hex head, 3/8 x 1-3/4

4шт.

3063560R1

LOCK NUT

lock, 3/8

4шт.

4

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSY. bevel pinion, rear

1шт.

4

399824R91

ROLLER BEARING

ASSY. bevel pinion, rear, optional

1шт.

5

3114703R91

GEAR-SET

bevel drive, 14/51T, service package, bevel pinion shaft

1шт.

65423C1

SHIM KIT

service, main shaft, bearing cage, not illustrated

1шт.
