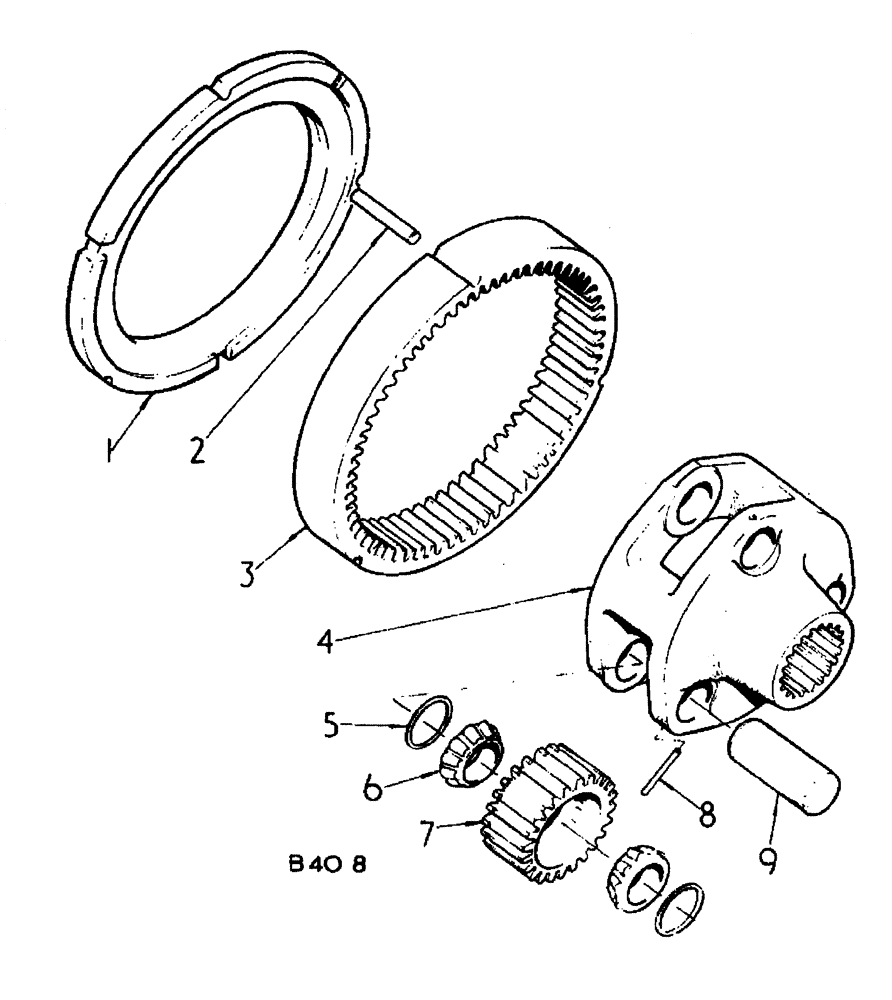

Запчасти Case 500 (07-030) - PLANET GEARS, RING AND CARRIER, DRIVE AXLE No Description

1

114620C1

RING,260mm OD

brake, outer disc

2шт.

2

529685R1

DOWEL

dowel, 3/8 x 2-1/4

6шт.

3

535316R1

GEAR, RING

RING, GEAR 66T

2шт.

4

404399R3

CARRIER planet gear, on orders for 404339R2, furnish 1 404339R3, w/3 399784R2

2шт.

5

NSS

NOT SOLD SEPARAT

SHIM planet, order package 65420C1

1шт.

6

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

ASSY. planet gear

12шт.

7

399784R2

PINION

GEAR planet

6шт.

8

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

9

399788R1

PIN

planet shaft

6шт.

65420C1

SHIM KIT

service package, planet gear, not illustrated

1шт.
