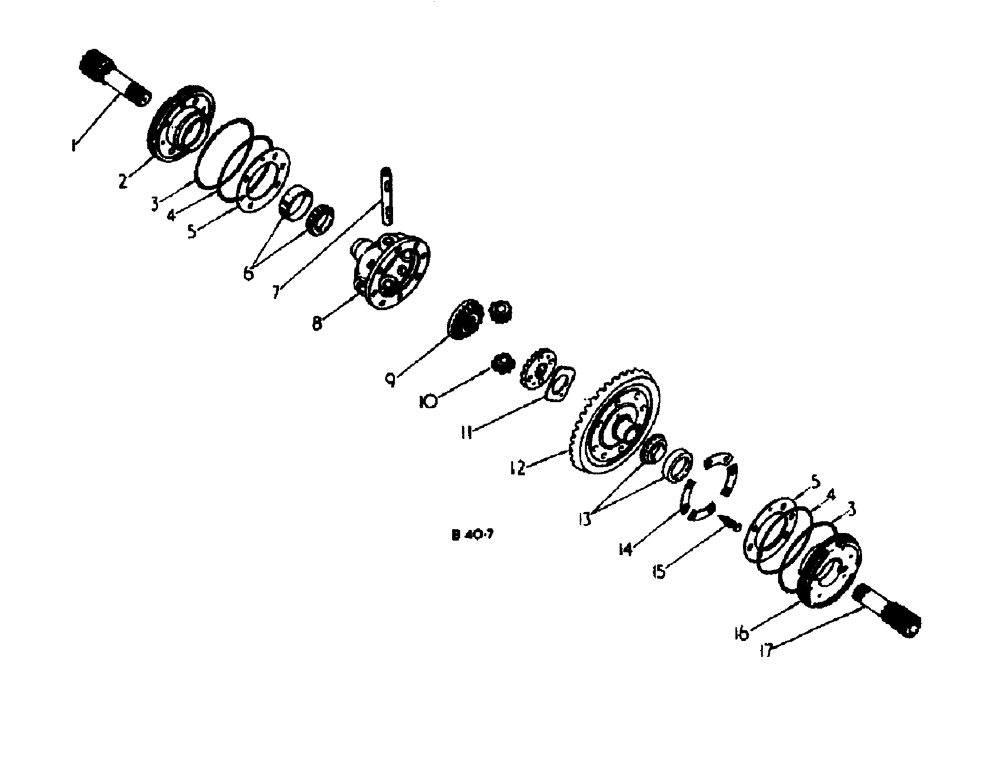

Запчасти Case 500 (07-028) - DIFFERENTIAL, DRIVE AXLE No Description

1

404338R1

SHAFT

planetary drive, R.H.

1шт.

2

399770R1

BEARING CARRIER

differential, R.H.

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

3

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

diffferential bearing carrier, 8-1/4 x 8-1/2 x 1/8

2шт.

4

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

differential bearing carrier seal, 7-1/2 x 7-7/8 x 3/16

2шт.

5

NSS

NOT SOLD SEPARAT

SHIM differential carrier, order package 65419C1

1шт.

6

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

differential, R.H.

1шт.

6

402353R91

BEARING ASSY,2.25" ID x 3.815" OD x 0.8268"

differential, R.H., optional

1шт.

7

399775R1

SHAFT

differential pinion

1шт.

8

399763R1

PINION CARRIER

GEAR CARRIER differential

1шт.

9

404336R1

PINION

gear, differential bevel, 20T

2шт.

10

399776R1

PINION

gear, differential, 10T

2шт.

11

399778R1

THRUST WASHER

thurst, differential bevel, gear

1шт.

12

3114703R91

GEAR-SET

bevel drive, 14/51T, service package, gear and shaft

1шт.

13

105502H

TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"

ASSY. differential, L.H.

1шт.

13

399766R91

ROLLER BEARING

ASSY. differential, L.H., optional

1шт.

14

NSS

NOT SOLD SEPARAT

not used

1шт.

15

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

dowel special

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex head, 1/2-13 x 1-1/2, type 8

7шт.

16

399769R1

BEARING CARRIER

CARRIER differential bearing, L.H.

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

17

404337R1

SHAFT

planetary drive, L.H.

1шт.

65419C1

BEARING CARRIER

service package, differential bearing carrier, shim service, not illustrated

1шт.
