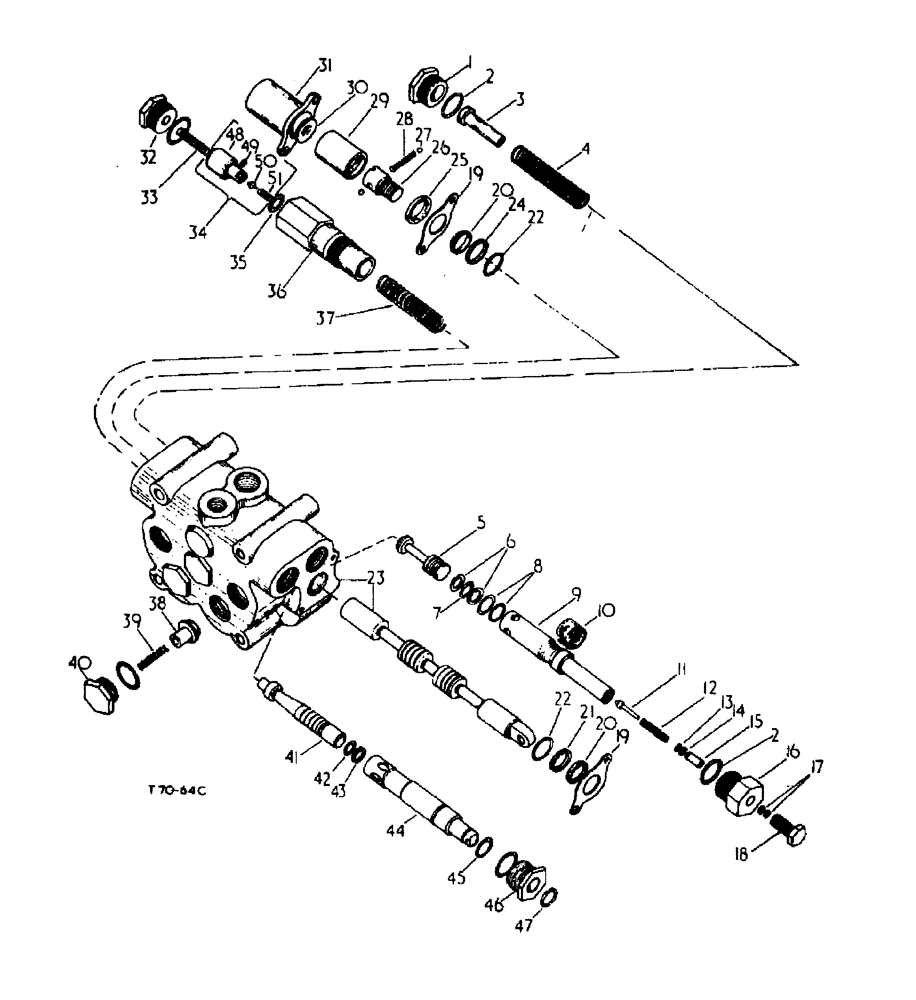

Запчасти Case 500 (07-024) - TRANSMISSION - CONTROL VALVE No Description

187039H8

VALVE

transmission control, HUSCO 3701, 45D

1шт.

1

144589H1

SPARE PART

1шт.

2

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

8шт.

3

187434H1

SPARE PART spring

1шт.

4

187435H1

SPRING

unloading valve

1шт.

5

187436H1

VALVE

unloading poppet

1шт.

6

198368H2

SPARE PART back up

2шт.

7

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

8

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

9

187437H2

SLEEVE

unloading valve

1шт.

10

198360H1

FILTER SCREEN

1шт.

11

144606H1

VALVE

needle, unloading

1шт.

12

144605H1

SPARE PART unloading valve

1шт.

13

359158R1

O-RING,0.301" ID x 0.07" Width

1шт.

14

187440H1

RING

back up

1шт.

15

187441H1

STOP

spring

1шт.

16

187442H1

PLUG

unloading valve

1шт.

17

187445H1

SHIM

as required

1шт.

18

187446H1

PLUG

1шт.

19

205574H1

SPARE PART seal

2шт.

24606R1

SPARE PART MACH RD head

2шт.

20

220734H1

SPARE PART

RING scraper

1шт.

21

220735H1

SPARE PART

RING spacer

1шт.

22

220737H1

O-RING

quad

2шт.

23

NSS

NOT SOLD SEPARAT

HOUSING and PLUNGER, order valve 187039H7

1шт.

24

220736H1

SPARE PART

RING retaining

1шт.

25

187423H1

WASHER

detent stop

1шт.

26

187421H1

PIN

detent

1шт.

27

16008R1

BALL,1/4" Dia, Steel

2шт.

28

187422H1

SPRING

detent

1шт.

29

187420H2

SLEEVE detent

1шт.

30

212639H1

SPARE PART

1шт.

31

187433H1

CAP

plunger

1шт.

138242

HEX SOC SCREW,3/8" - 16 x 1"

2шт.

32

187424H1

SPARE PART piston, stop

1шт.

33

187443H1

SPARE PART

1шт.

34

199962H1

SPARE PART

PISTON SUB ASSY. consists of Ref. 48, 49, 50, and 51

1шт.

35

187444H1

SHIM

as required

1шт.

36

187425H3

CYLINDER

valve relief

1шт.

37

187427H1

SPRING

1шт.

38

144600H1

SPARE PART check poppet

3шт.

39

144604H1

SPRING

check valve

3шт.

40

144599H2

SPARE PART check valve

3шт.

41

198361H1

VALVE

1шт.

42

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

43

216057H1

SPARE PART back up

1шт.

44

187430H2

SLEEVE

relief valve

1шт.

46

187432H1

SPARE PART relief valve

1шт.

47

164288H1

RING

retaining

1шт.

48

199963H1

PISTON

1шт.

Part of Piston Assy. P/N 199962H1

1шт.

49

103337

WASHER,#6

1шт.

Part of Piston Assy. P/N 199962H1

1шт.

50

199964H1

VALVE

needle

1шт.

Part of Piston Assy. P/N 199962H1

1шт.

51

148596H1

SPRING

1шт.

Part of Piston Assy. P/N 199962H1

1шт.

9410359

PLUG

1шт.

3063651R1

WASHER

copper drive, axle complete, not illustrated

1шт.

3114293R92

AXLE drive CPTE., not illustrated

1шт.

14-12112

BOLT,Hex, 3/4" - 16 x 7", Gr 5

3/4-16 UNF x 7, not illustrated

4шт.

26068R1

WASHER

.812 x 1.50 x 1.79, hardened, not illustrated

4шт.

3069368R1

NUT

lock, nylon, insert type, 3/4-16 UNF, not illustrated

4шт.
