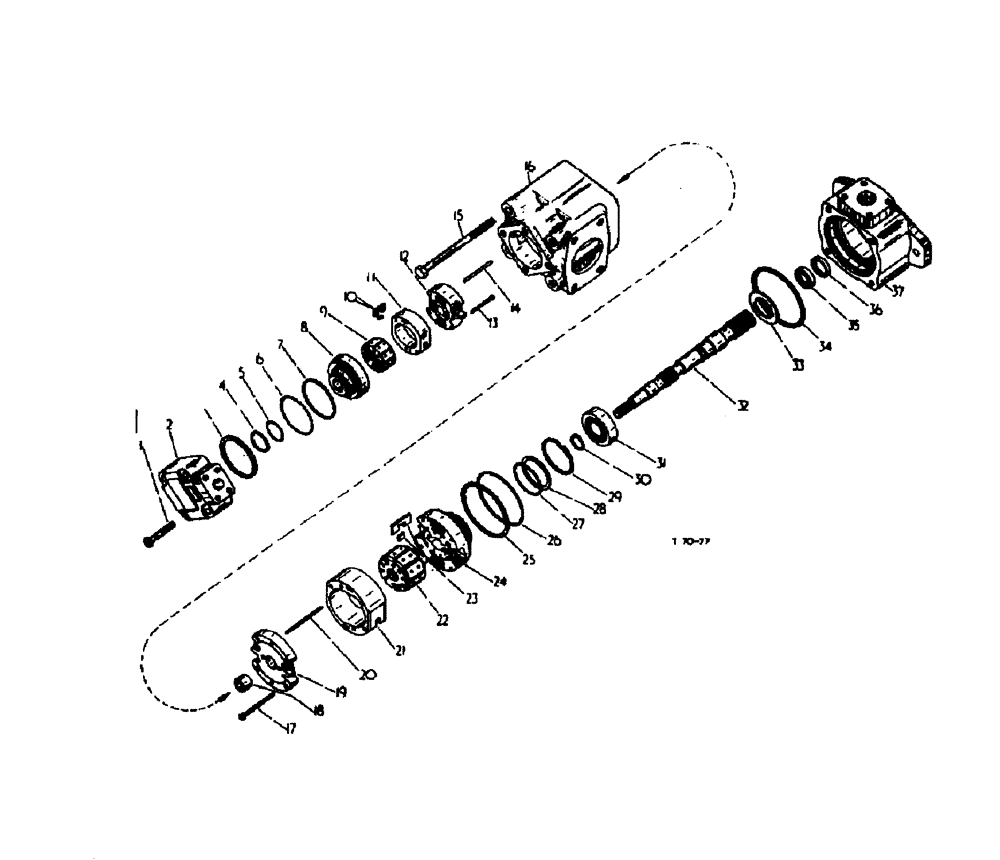

Запчасти Case 500 (07-020) - TRANSMISSION - HYDRAULIC PUMP No Description

187019H4

PUMP

hydraulic

1шт.

1

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

4шт.

2

177596H1

SPARE PART

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of kit 187894H2

1шт.

4

NSS

NOT SOLD SEPARAT

RING back up

1шт.

Part of kit 187894H2

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of kit 187894H2

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of kit 187894H2

1шт.

7

NSS

NOT SOLD SEPARAT

RING back up

1шт.

Part of kit 187894H2

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE

1шт.

Part of kit 187896H4

1шт.

9

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

Part of kit 187896H4

1шт.

10

NSS

NOT SOLD SEPARAT

KIT vane

1шт.

Part of kit 187896H4

1шт.

11

NSS

NOT SOLD SEPARAT

RING

1шт.

Part of kit 187896H4

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE wear

1шт.

Part of kit 187896H4

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW

1шт.

Part of kit 187896H4

1шт.

14

NSS

NOT SOLD SEPARAT

PIN

2шт.

Part of kit 187896H4

1шт.

15

17171R1

SCREW,Hex, 5/8" - 11 x 6 1/2", Gr 5

4шт.

16

177595H1

BODY

HOUSING inlet

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW

1шт.

Part of kit 187896H4

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

Part of kit 187896H4

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE wear

1шт.

Part of kit 187896H4

1шт.

20

NSS

NOT SOLD SEPARAT

PIN

2шт.

Part of kit 187896H4

1шт.

21

NSS

NOT SOLD SEPARAT

RING

1шт.

Part of kit 187896H4

1шт.

22

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

Part of kit 187896H4

1шт.

23

NSS

NOT SOLD SEPARAT

KIT vane

1шт.

Part of kit 187896H4

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE pressure

1шт.

Part of kit 187896H4

1шт.

25

NSS

NOT SOLD SEPARAT

RING back up

1шт.

Part of kit 187894H2

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of kit 187894H2

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of kit 187894H2

1шт.

28

NSS

NOT SOLD SEPARAT

RING back up

1шт.

Part of kit 187894H2

1шт.

29

616518R1

SNAP RING,#283, 2.954, Int, Spiral

snap

1шт.

30

301020R1

SNAP RING,#118, Ext

. #118, Ext

1шт.

31

177598H1

SPARE PART

BEARING ball

1шт.

32

187892H1

SHAFT

SPARE PART

1шт.

33

165003H1

SPARE PART

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of kit 187894H2

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of kit 187894H2

1шт.

36

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of kit 187894H2

1шт.

37

164373H1

SPARE PART

1шт.

187894H2

GASKET

KIT seal, consists of Ref. marked, 3-7, 25-28, 34-36

1шт.

187896H4

FILTER, ELEMENT

ELEMENT, FILTER KIT cartridge, consists of Ref. marked, 8-14

1шт.

187895H4

FILTER, ELEMENT

ELEMENT, FILTER KIT cartridge, consists of Ref. marked, 17-24

1шт.
